Less Logical Mode Control

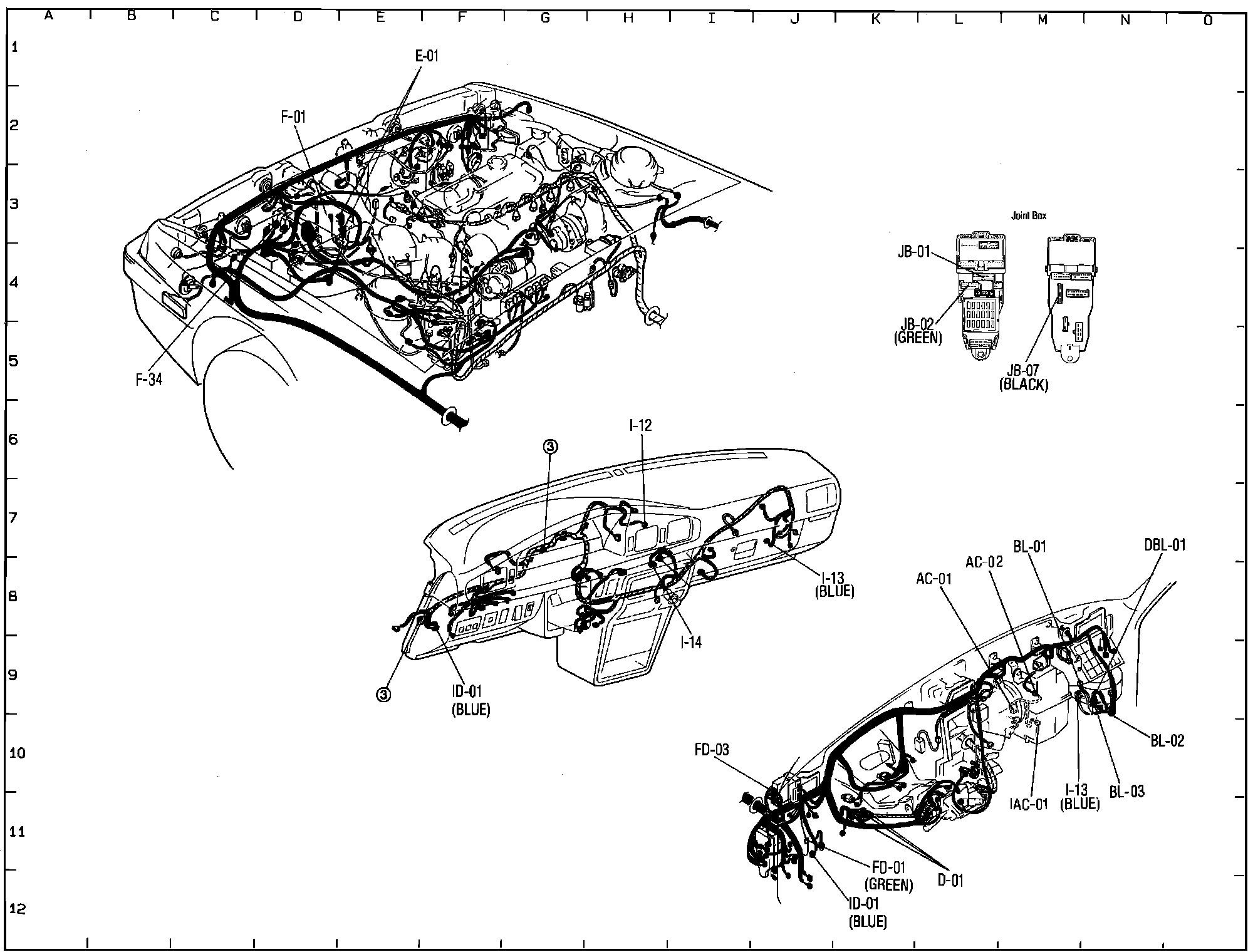

Heater & Air Conditioning. Without Logical Mode Control. Harness Locations:
