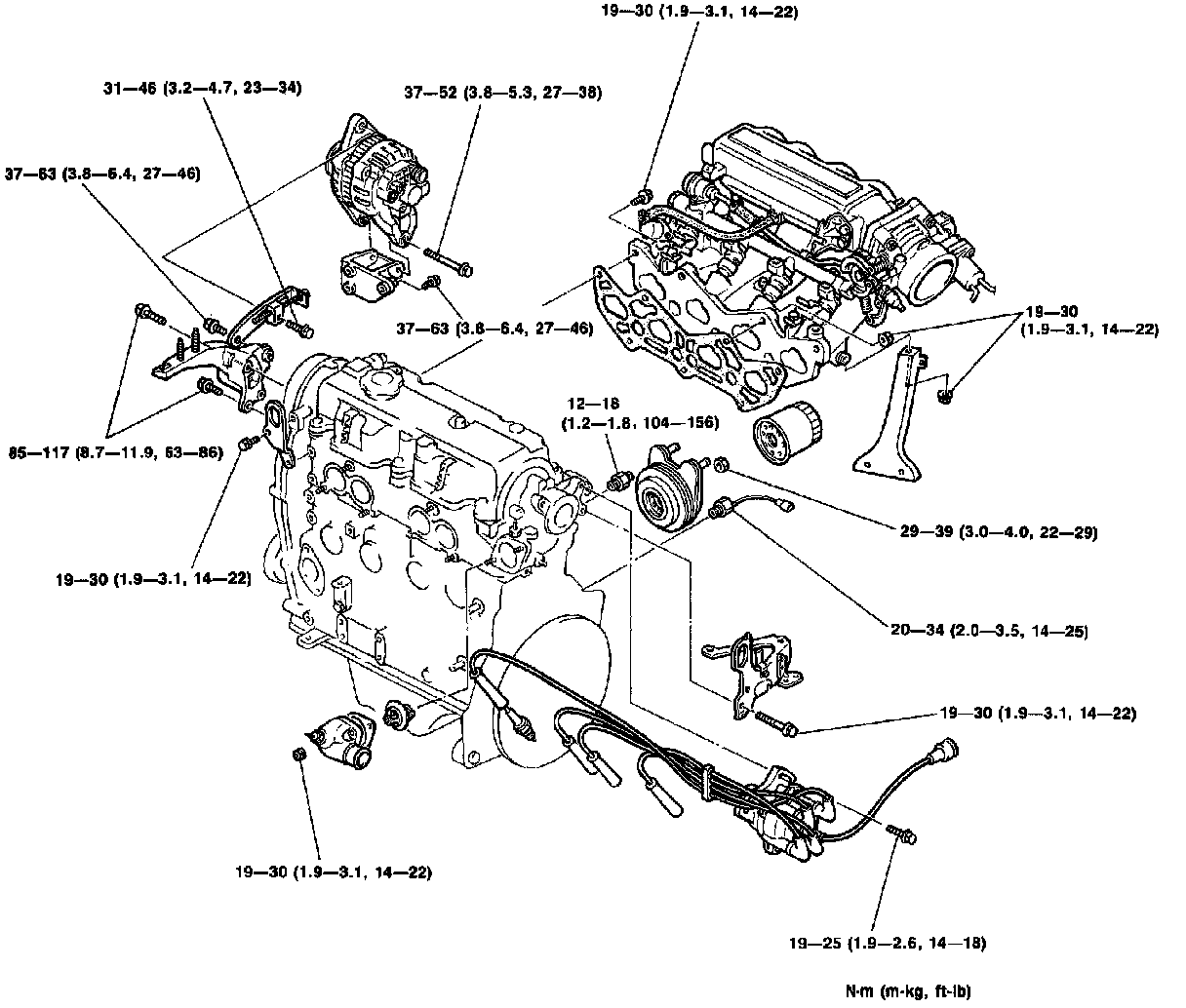

Torque Specifications

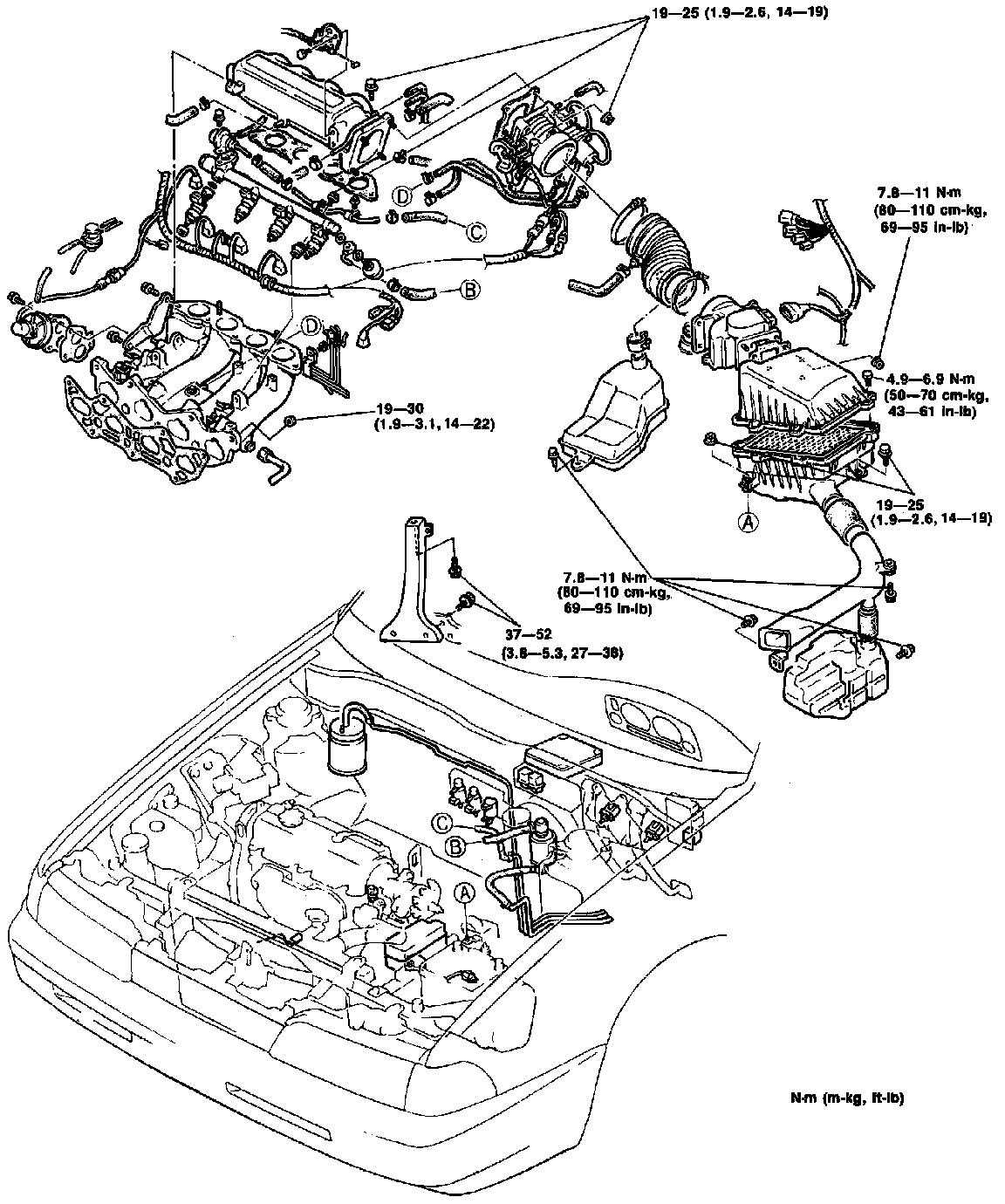

Intake Non-turbo:

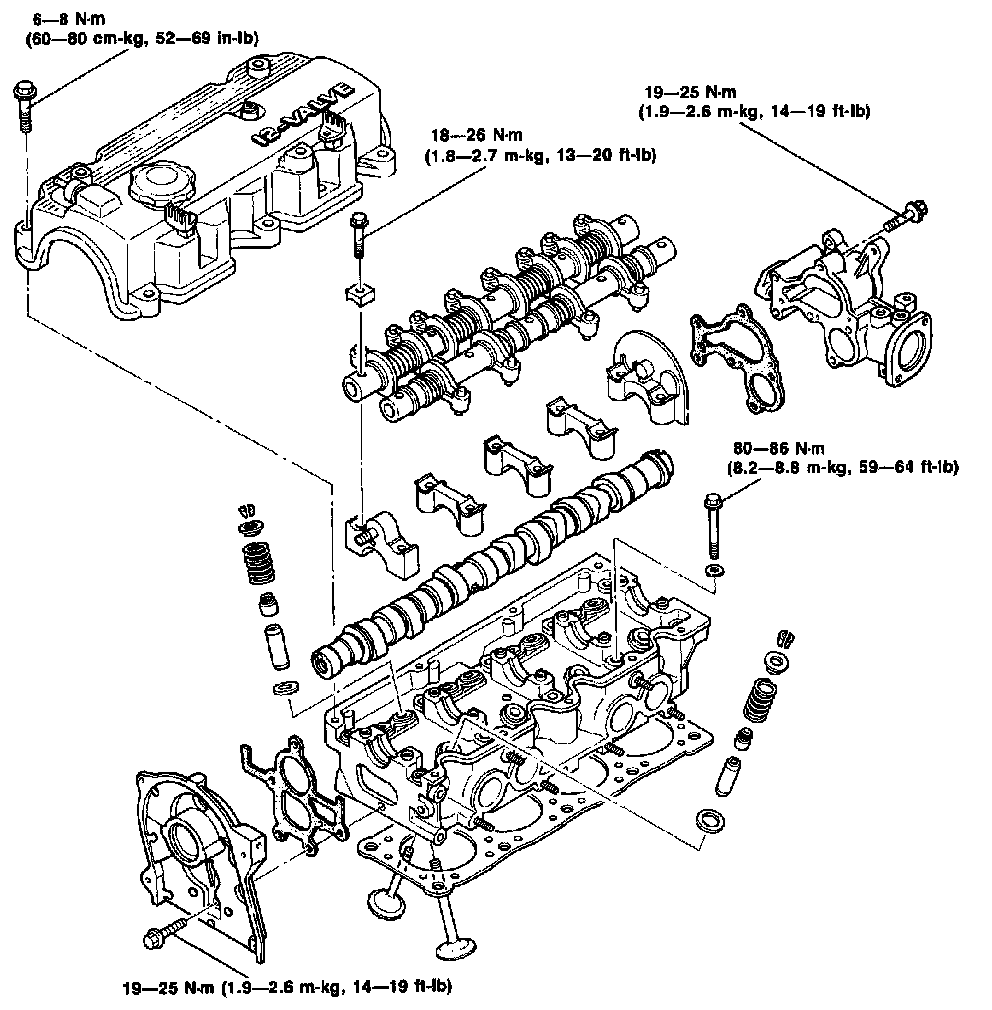

Upper Engine:






Head Bolt Torque/Sequence:






Rocker Shaft Torque/Sequence:

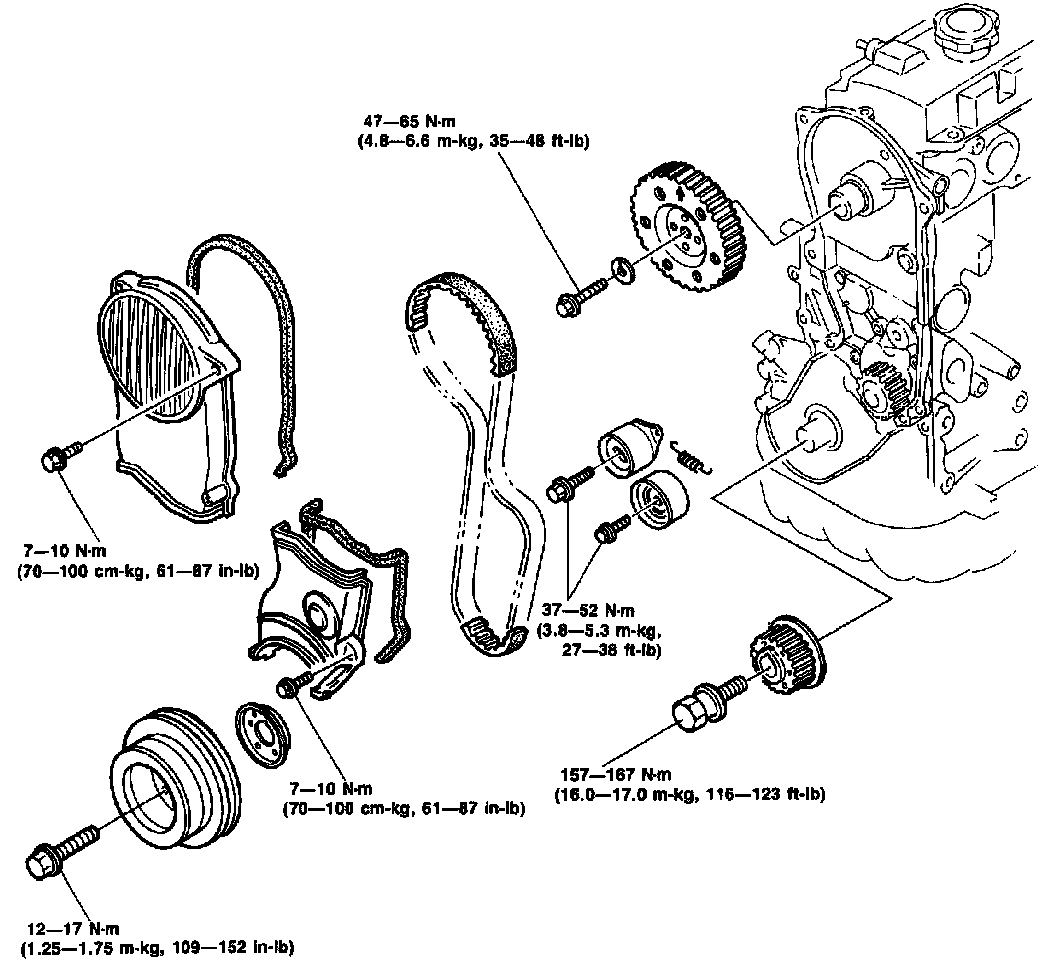

Timing Components:

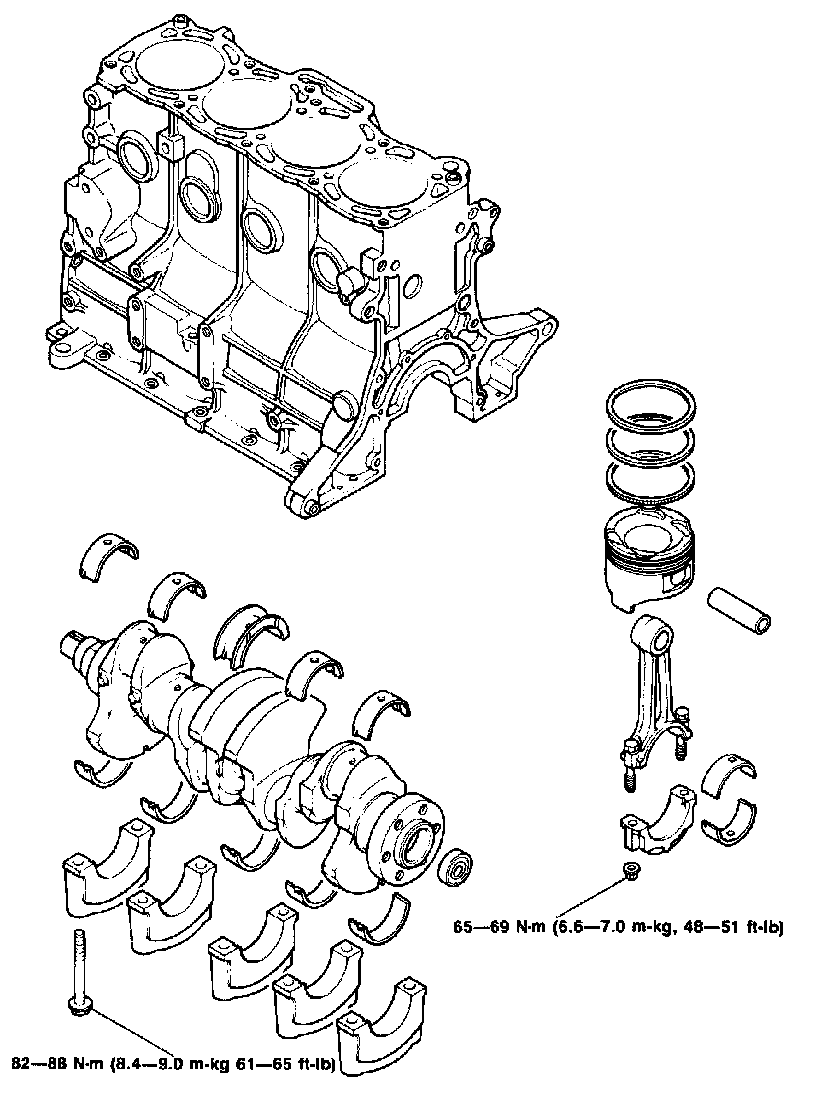

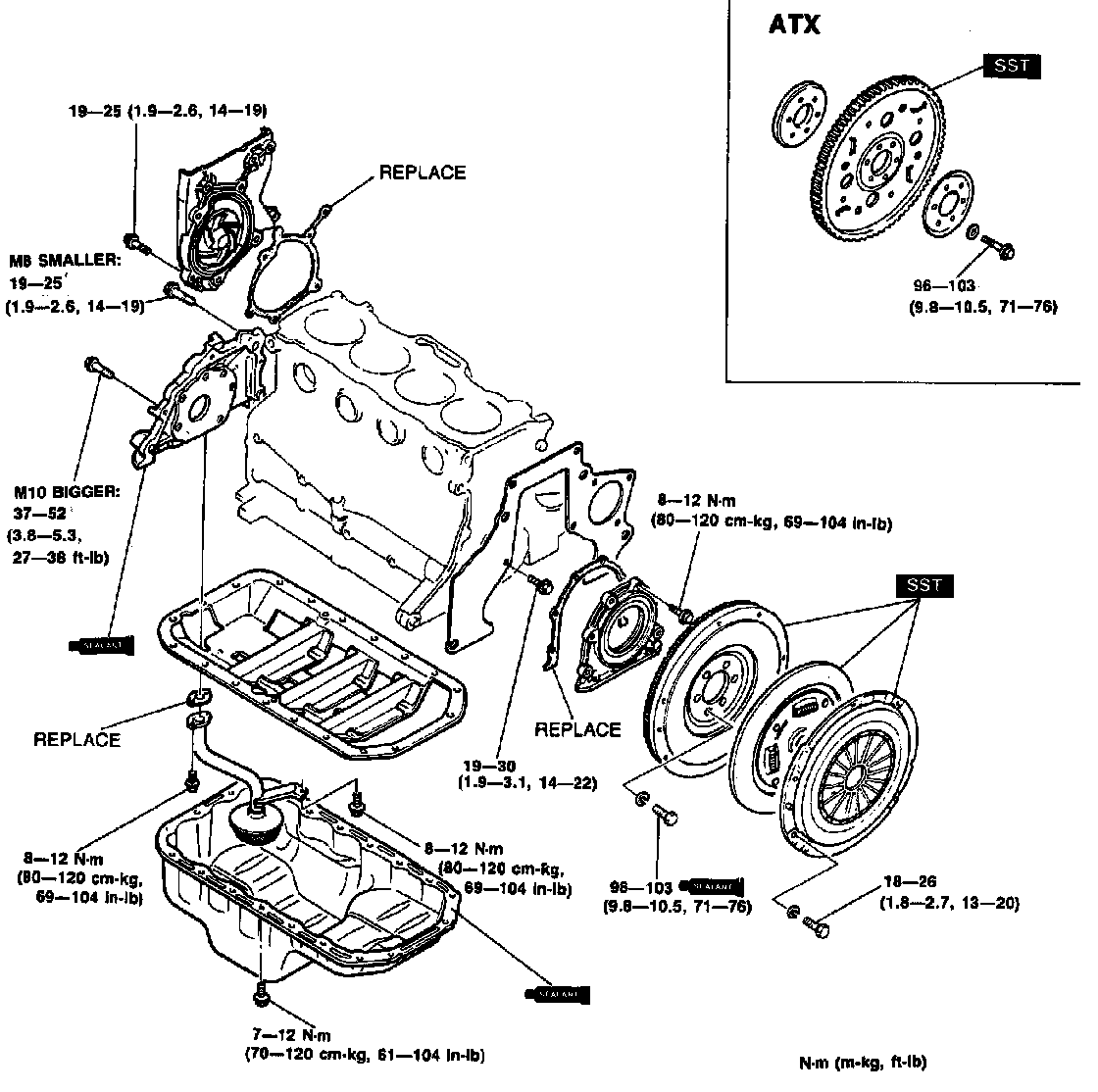

Lower Engine:






Main Bolt Torque/Sequence:
