Connector Locations

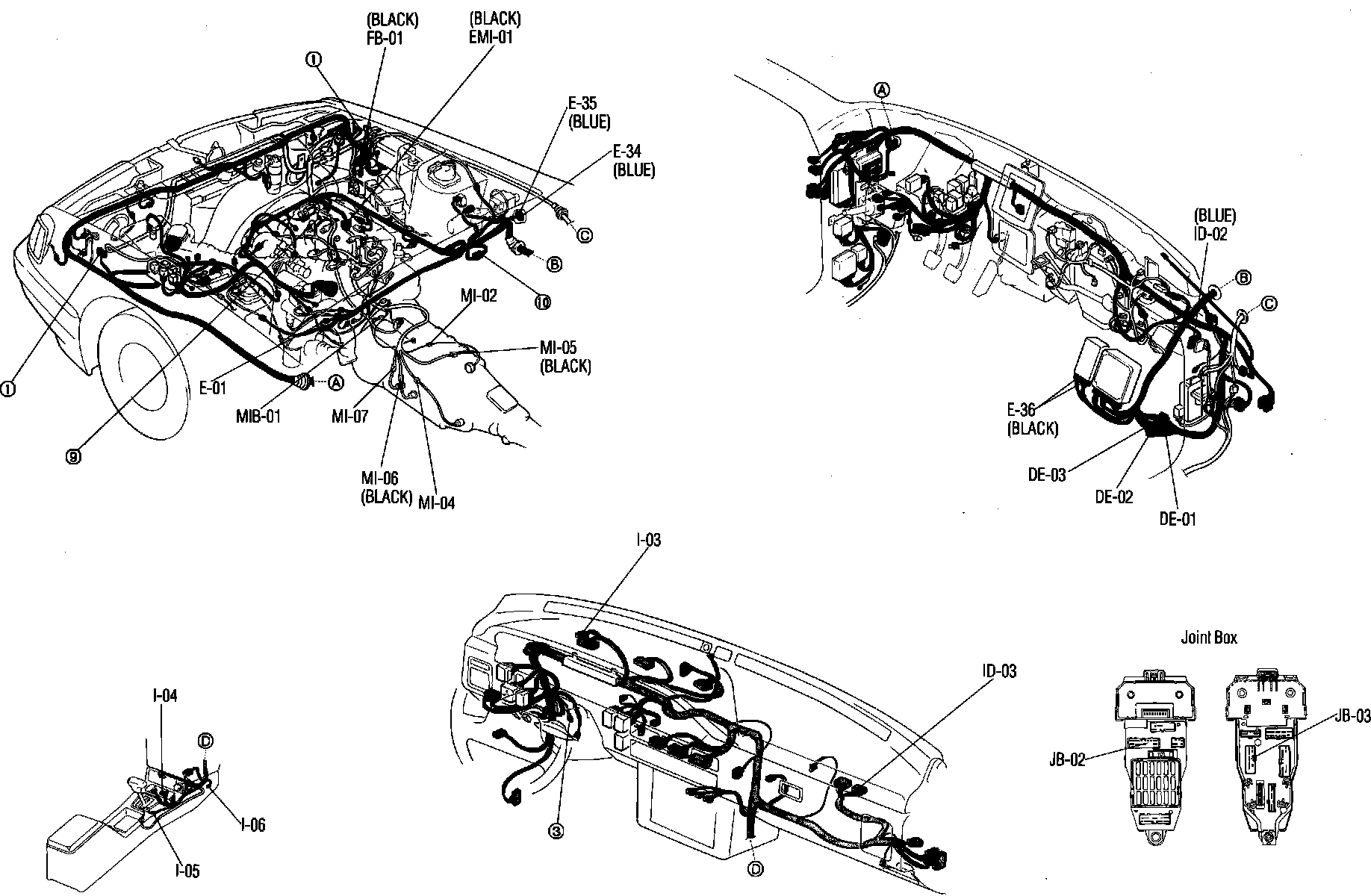

Automatic Transmission Control Unit & Shift Lock System. SOHC Engine. Harness Locations:
