Control Module, A/T

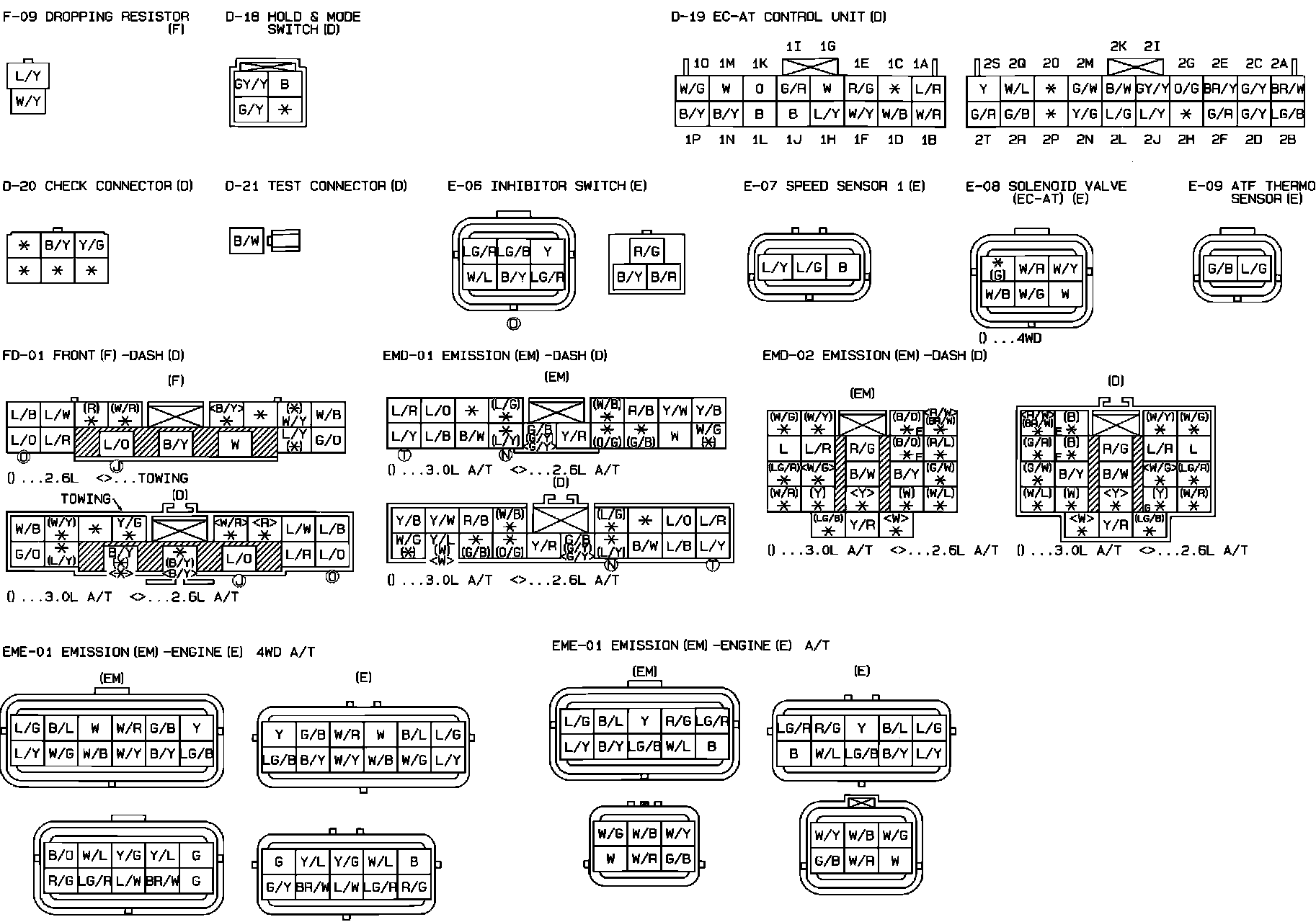

Automatic Transmission Control Unit. Connector Identification:

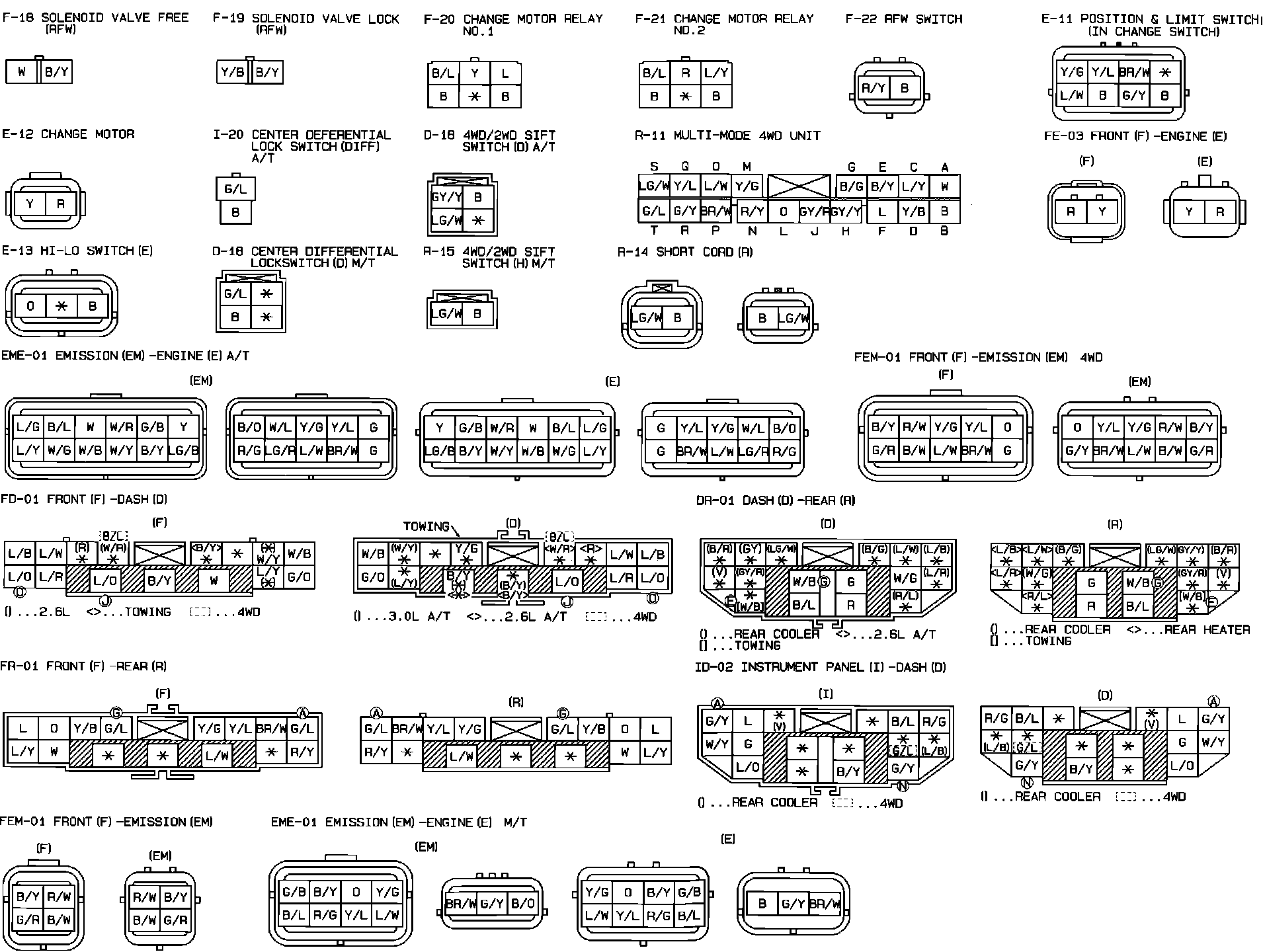

Multi Mode 4WD Control. Connector Identification:
