Connector Views

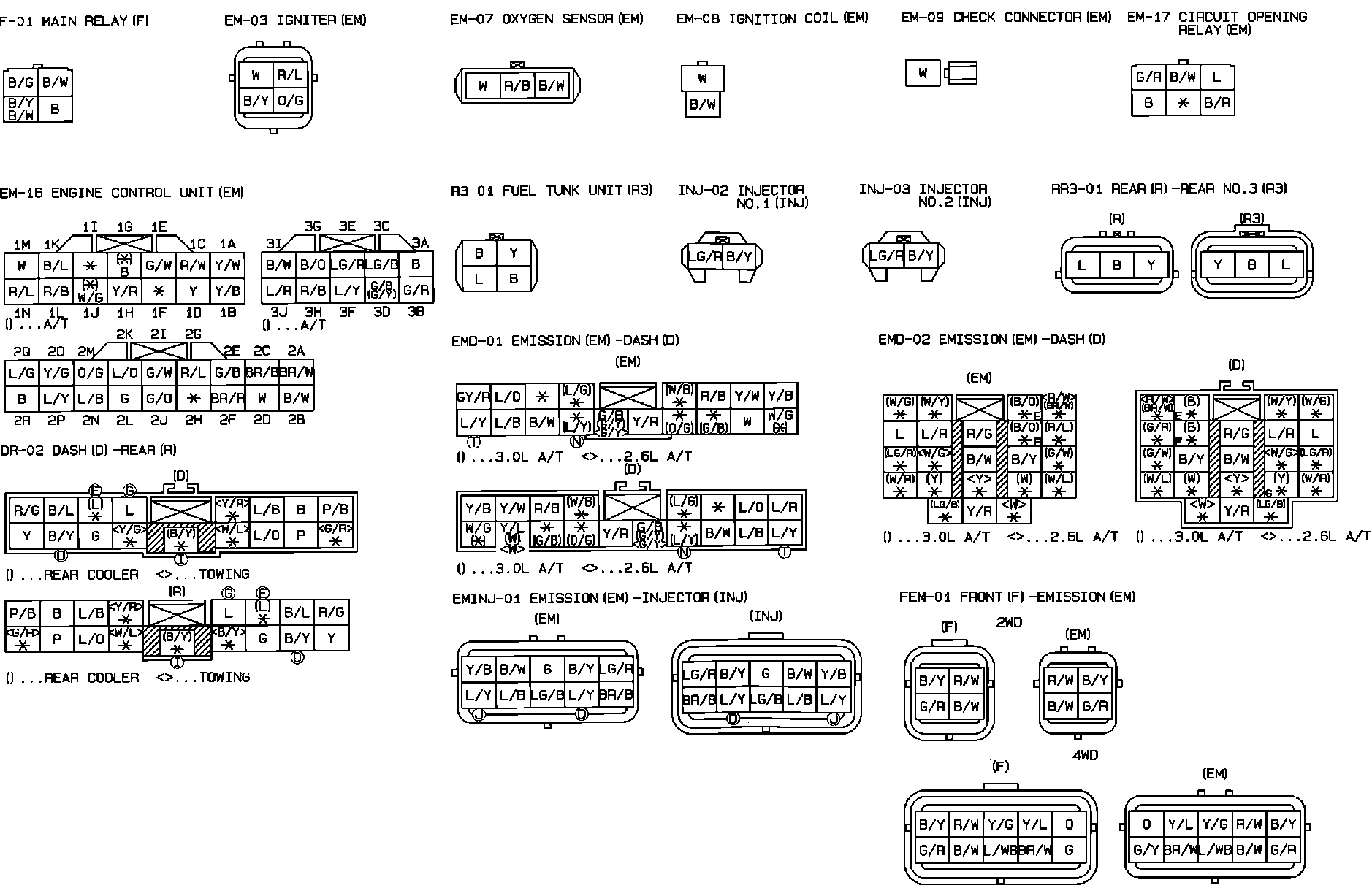

Engine Control. 3.0L. Connector Identification:



Engine Control. 3.0L. Connector Identification:

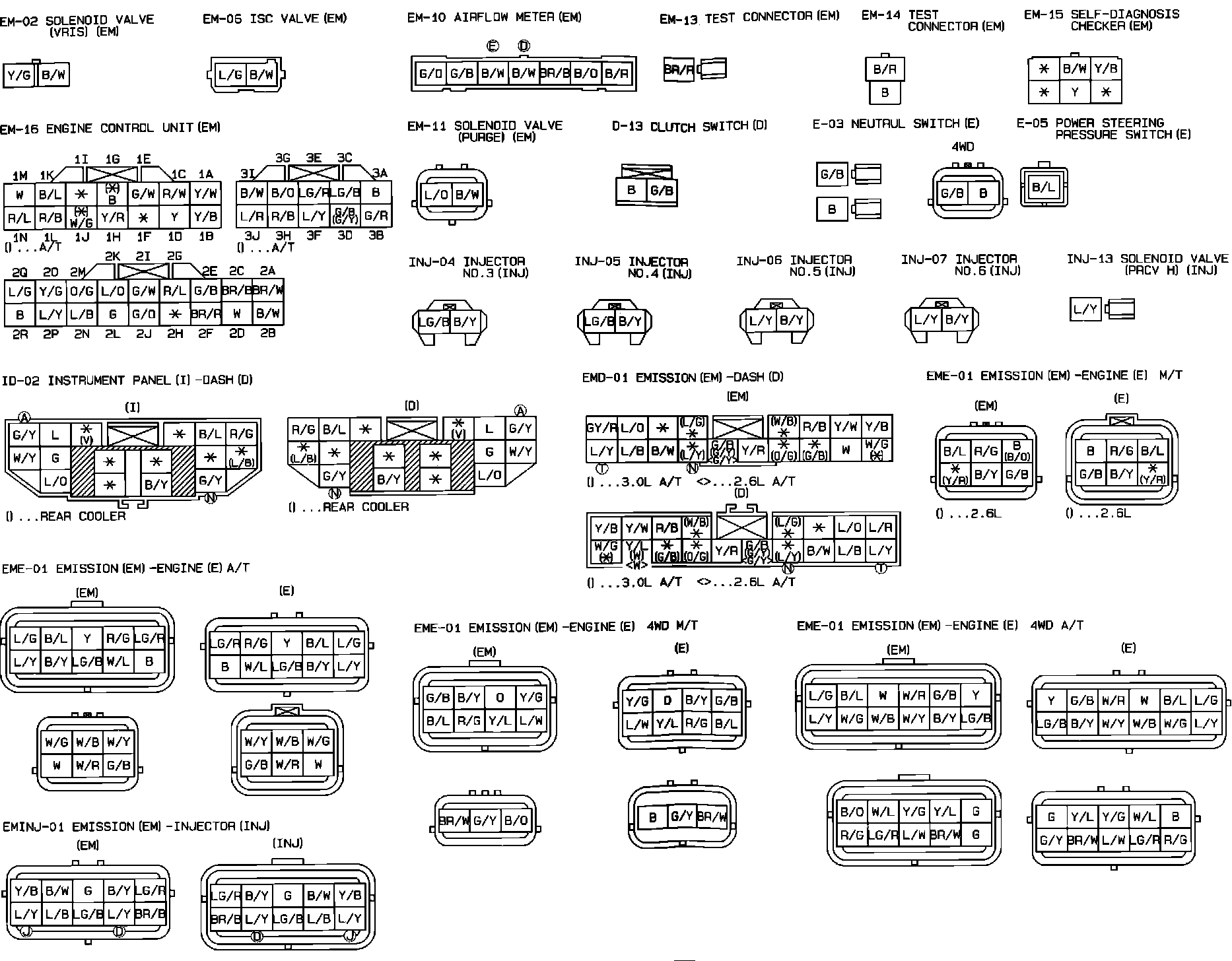

Engine Control. 3.0L. Connector Identification:
