Power Windows Master Switch

  1. Check for continuity between terminals of the switch with an ohmmeter as specified. See POWER WINDOWS MASTER SWITCH  under REMOVAL & INSTALLATION. See Fig 1 .
  2. If continuity is not as specified, replace the switch.

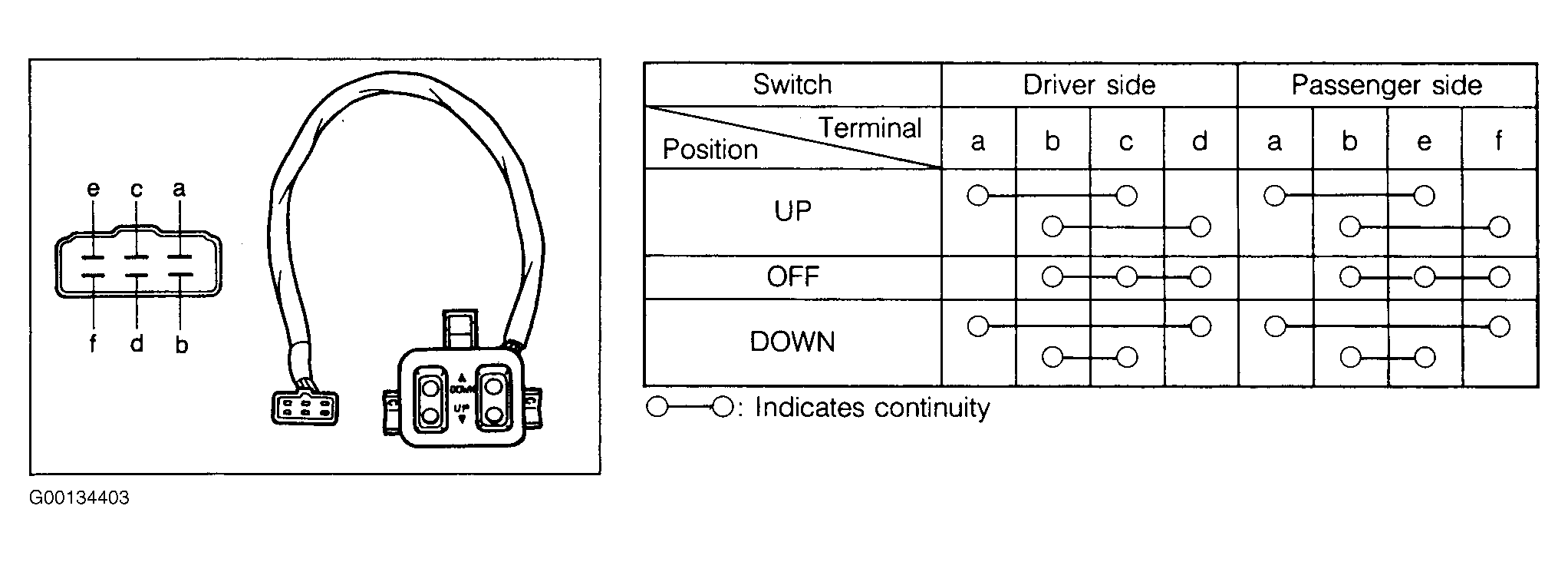

Fig 1: Testing Power Windows Master Switch
G00134403Courtesy of MAZDA MOTORS CORP.
