Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block Behind left front kick panel. See Figure .

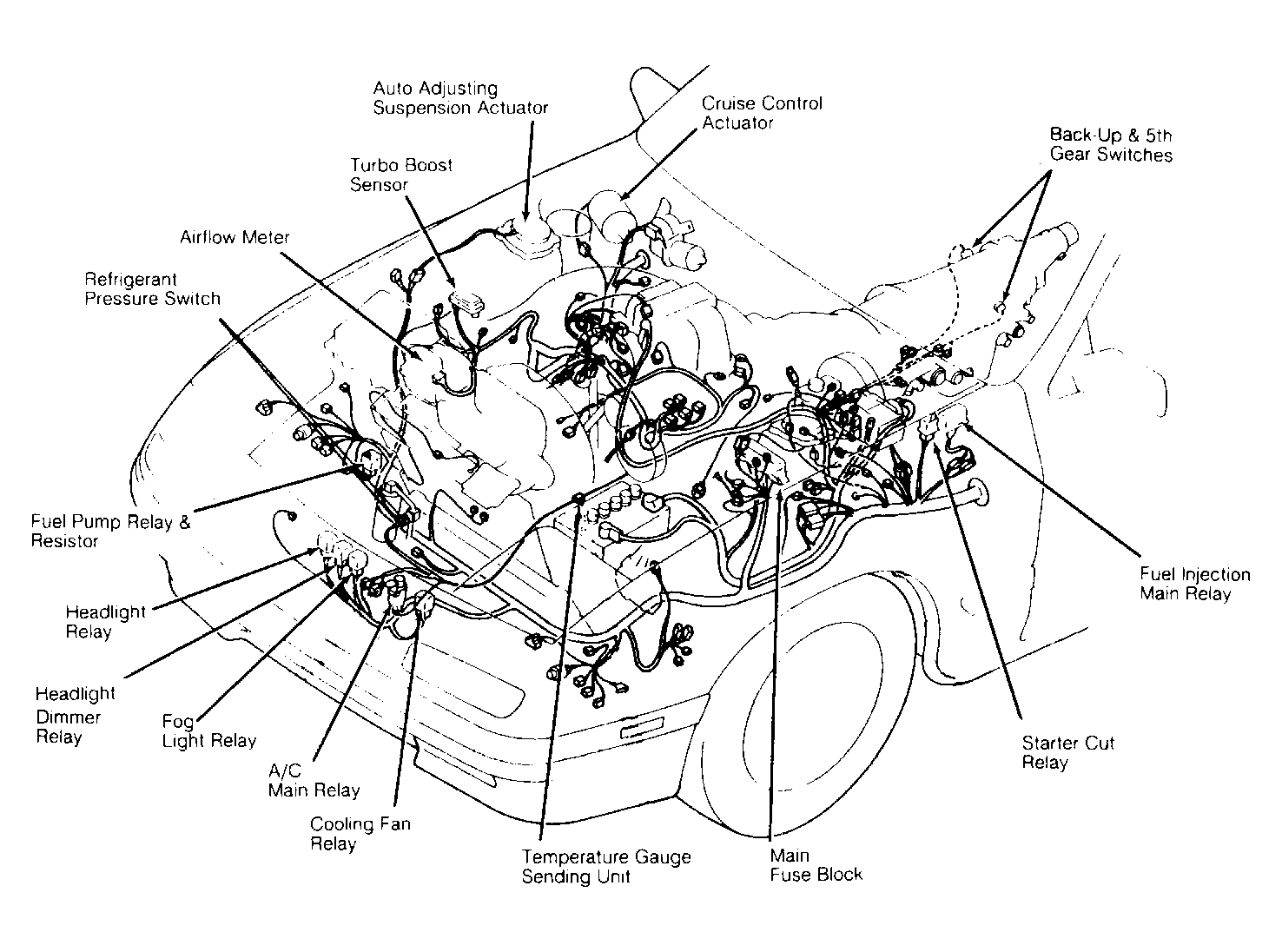

Main Fuse Block In front of left shock tower. See Figure .
