Control Units

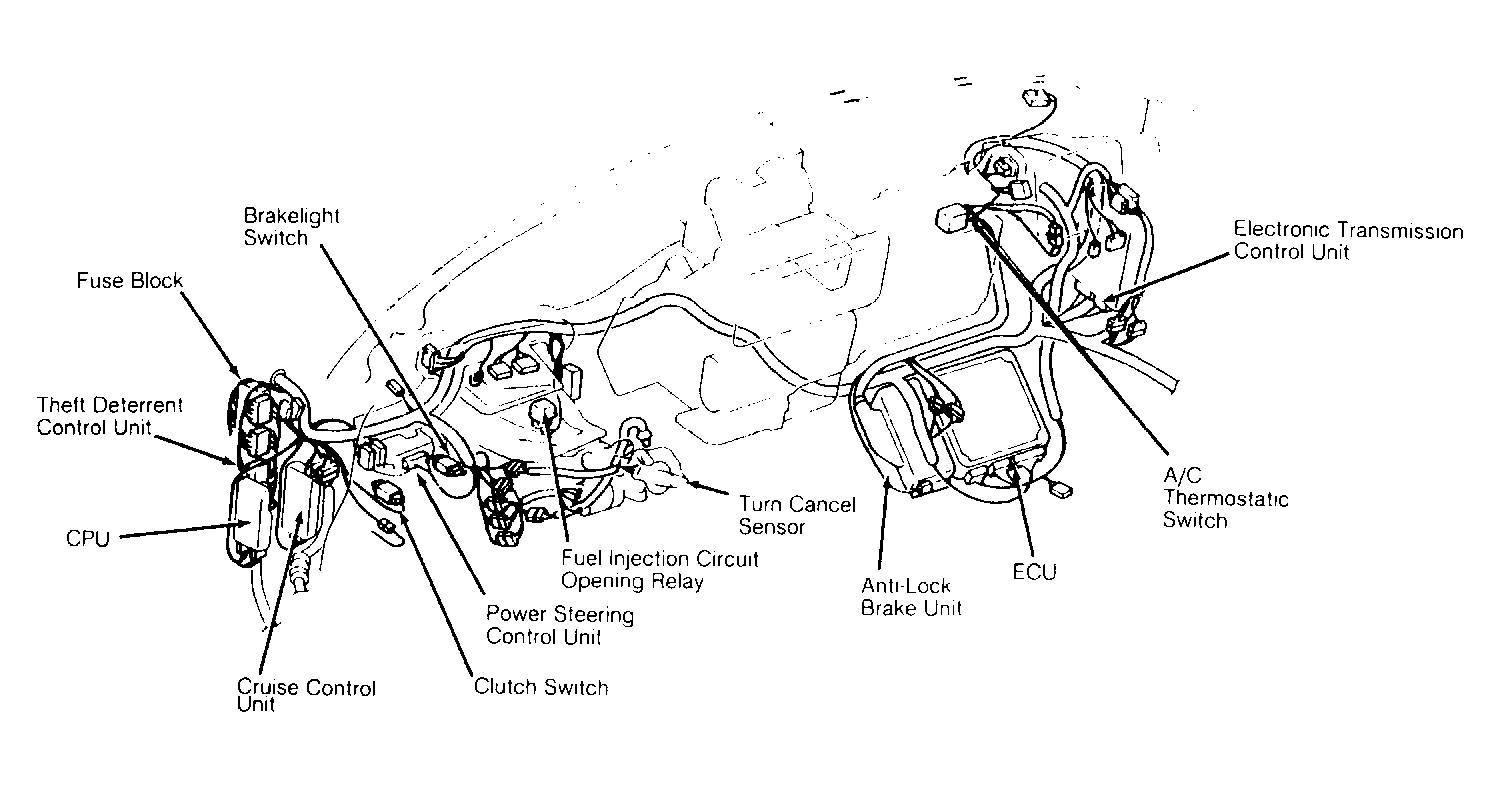

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brake (ABS) Control Unit | Under dash, on right side. See Figure . |
| Automatic Adjusting Suspension (AAS) Control Unit | In rear of vehicle, to right of license plate. |
| Central Processing Unit (CPU) | Behind left front kick panel. See Figure . |
| Cruise Control Unit | Under left side of dash, near CPU. See Figure . |
| Door Lock Control Unit | In CPU, behind left kick panel. |
| Engine Control Unit (ECU) | Below right side of dash. See Figure . |
| Power Steering Control Unit | Under steering column. See Figure . |
| Theft Deterrent Control Unit | Below right side of dash, behind glove box. See Figure . |
| Electronic Transmission Control Unit | Behind right kick panel. See Figure . |
