Caster Adjustment: Navajo

  1. Measure caster to determine if adjustment is required. Record specifications for use in selection of camber/caster adjusters. To adjust, raise vehicle and remove front wheel assembly. Remove caliper and steering knuckle assembly.

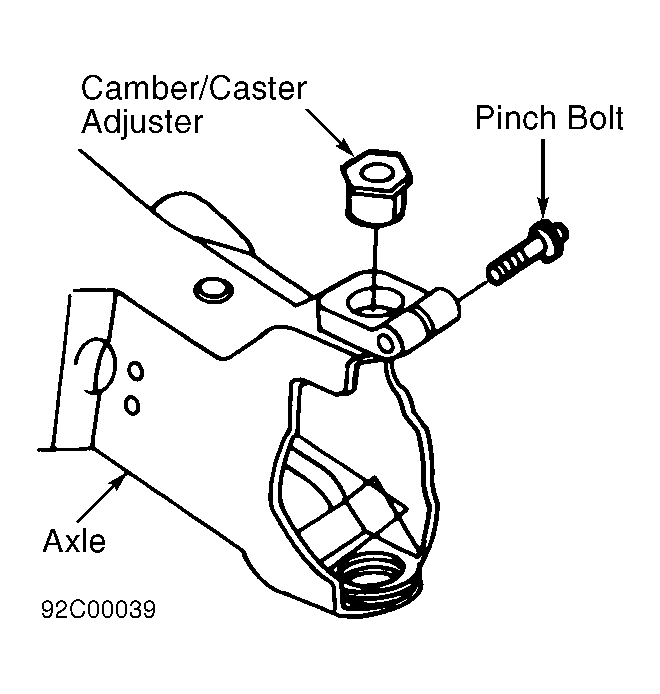

  2. Remove pinch bolt and camber/caster adjuster from axle. See Figure. Install appropriate camber/caster adjuster and rotate to desired adjustment. See Figure. Install NEW adjuster snap ring. Install caliper, steering knuckle and wheel assembly. Check alignment to verify correct adjustment.
