4WD

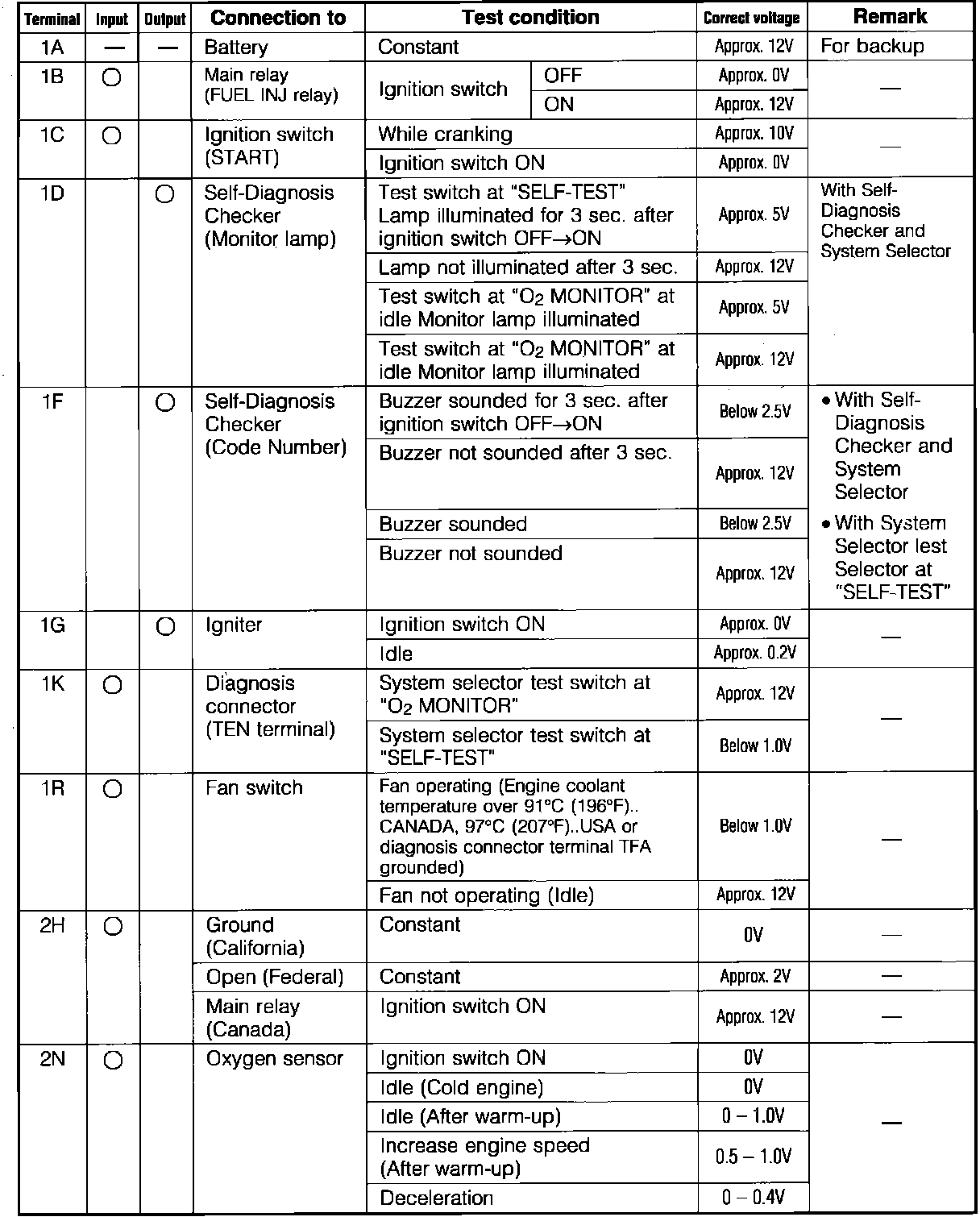

Engine Control System. 4wd. ECU Pin Voltage Chart:

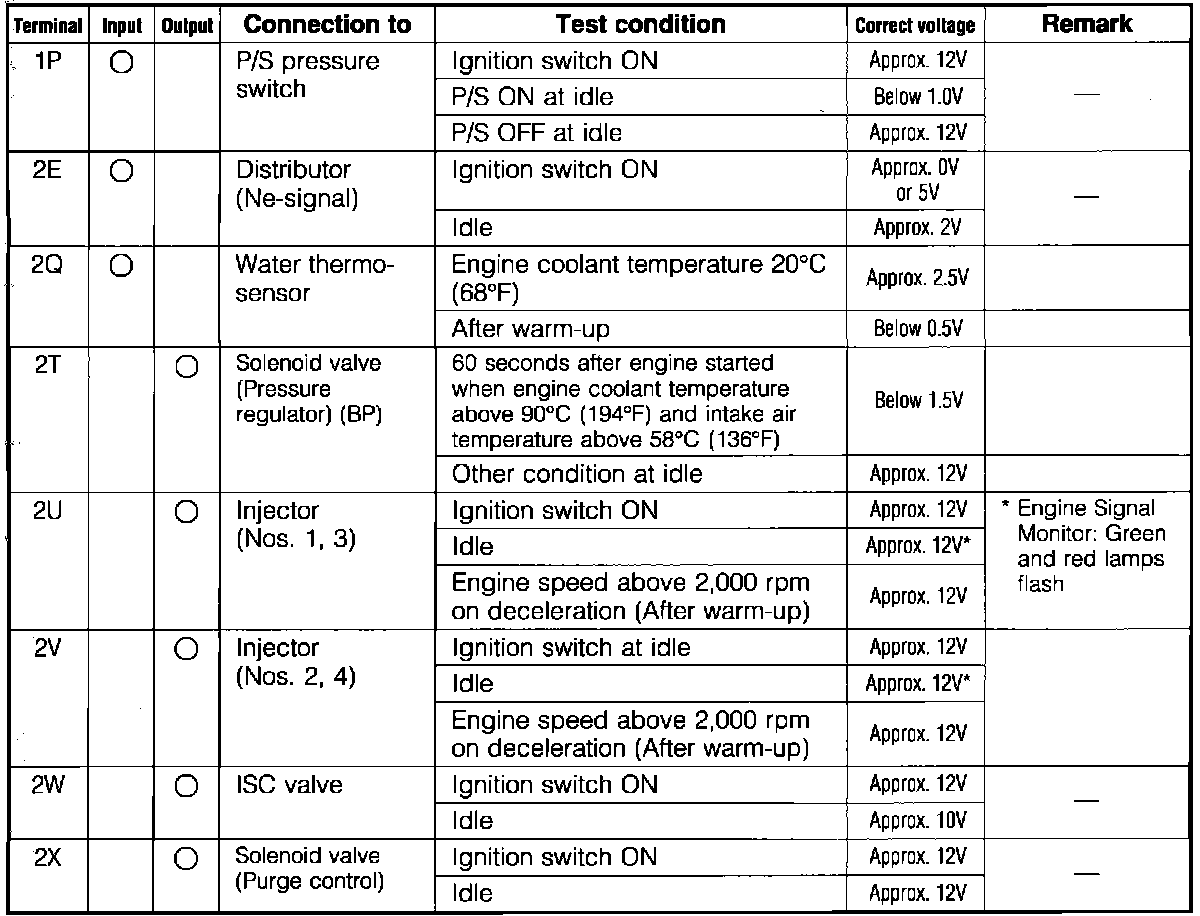

Engine Control System. 4wd. ECU Pin Voltage Chart:

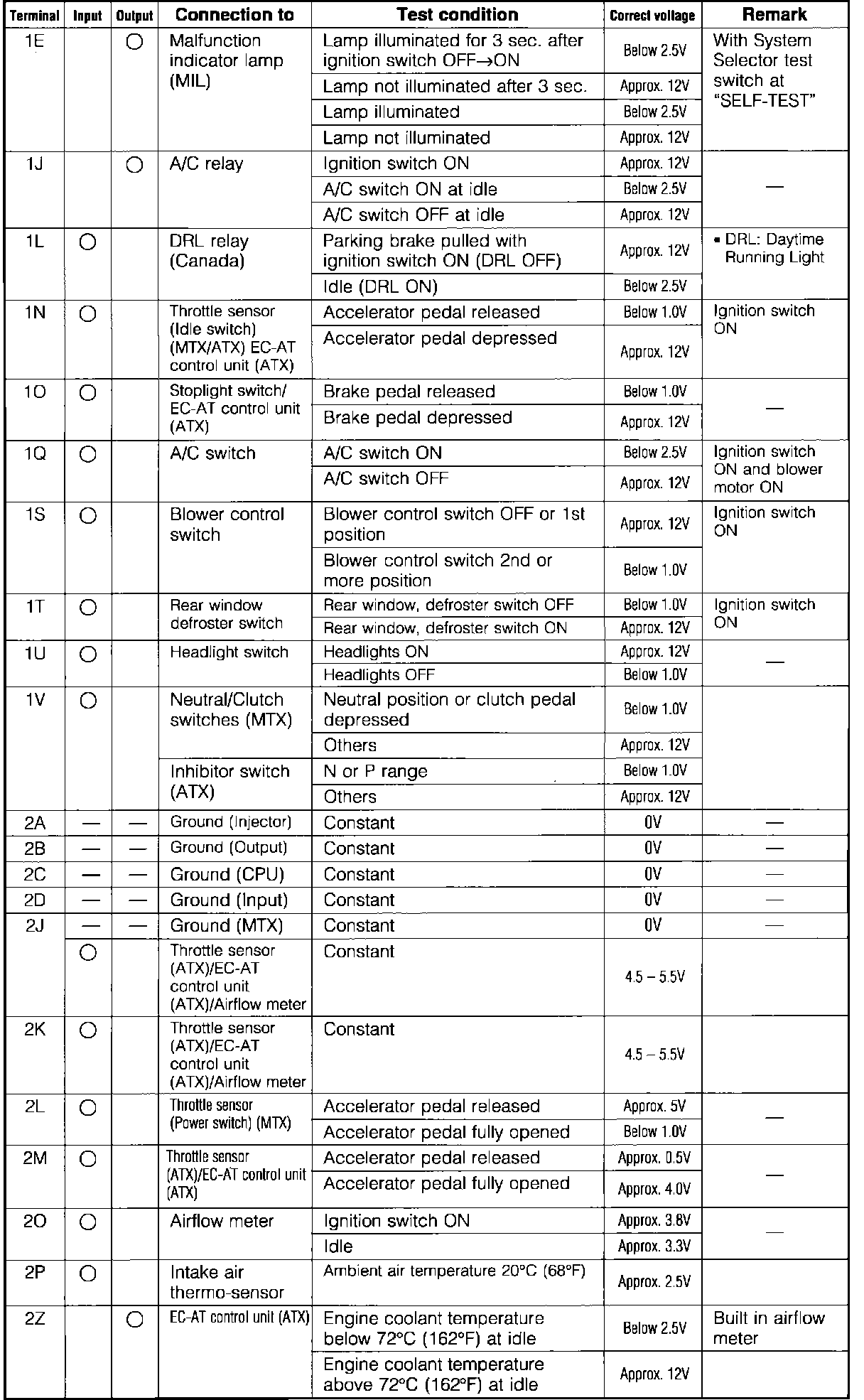

Engine Control System. 4wd. ECU Pin Voltage Chart:
