Control Module, A/T

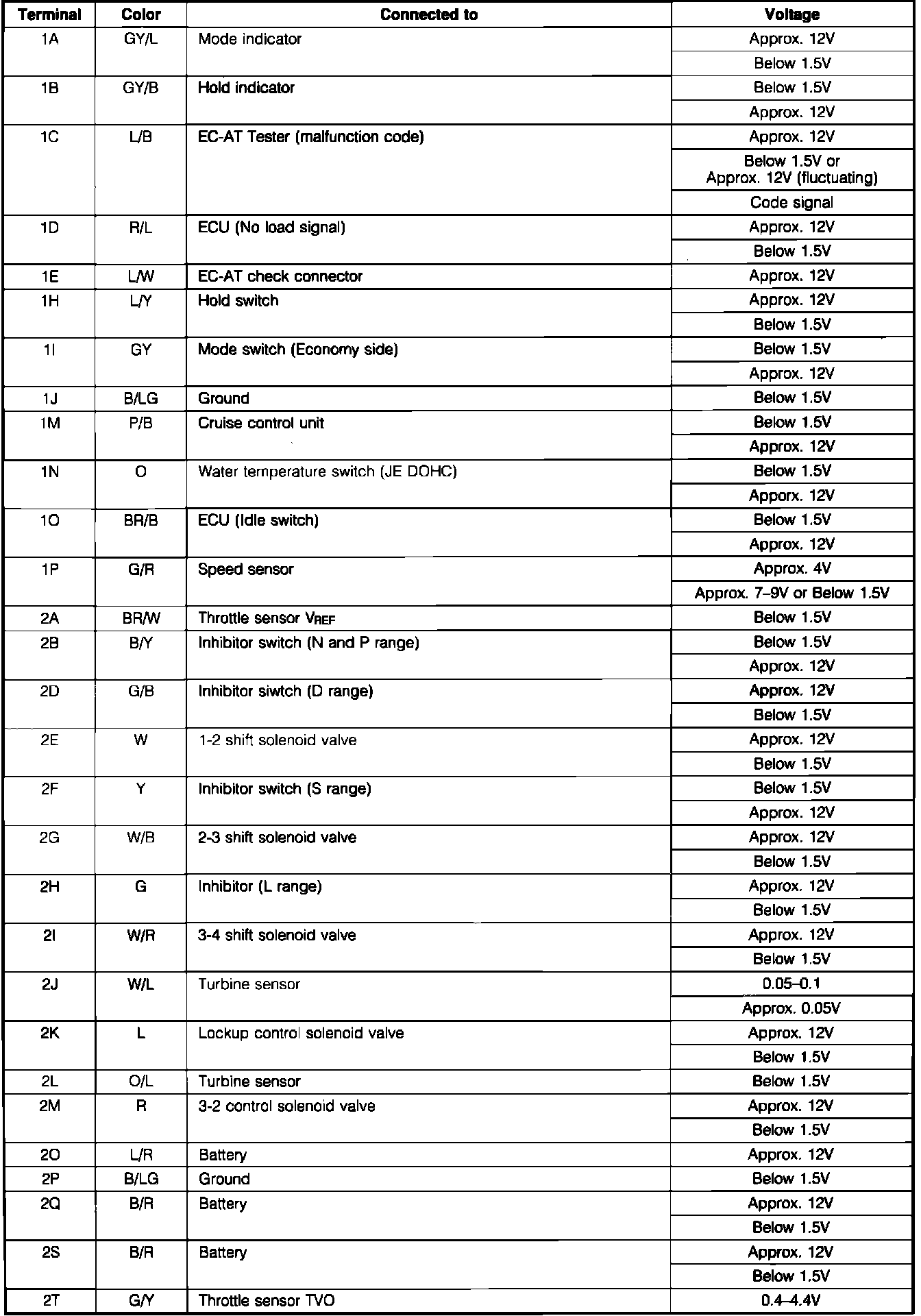

EC-AT Control System And Shift Lock System. EGI. ECU Pin Voltage Chart:

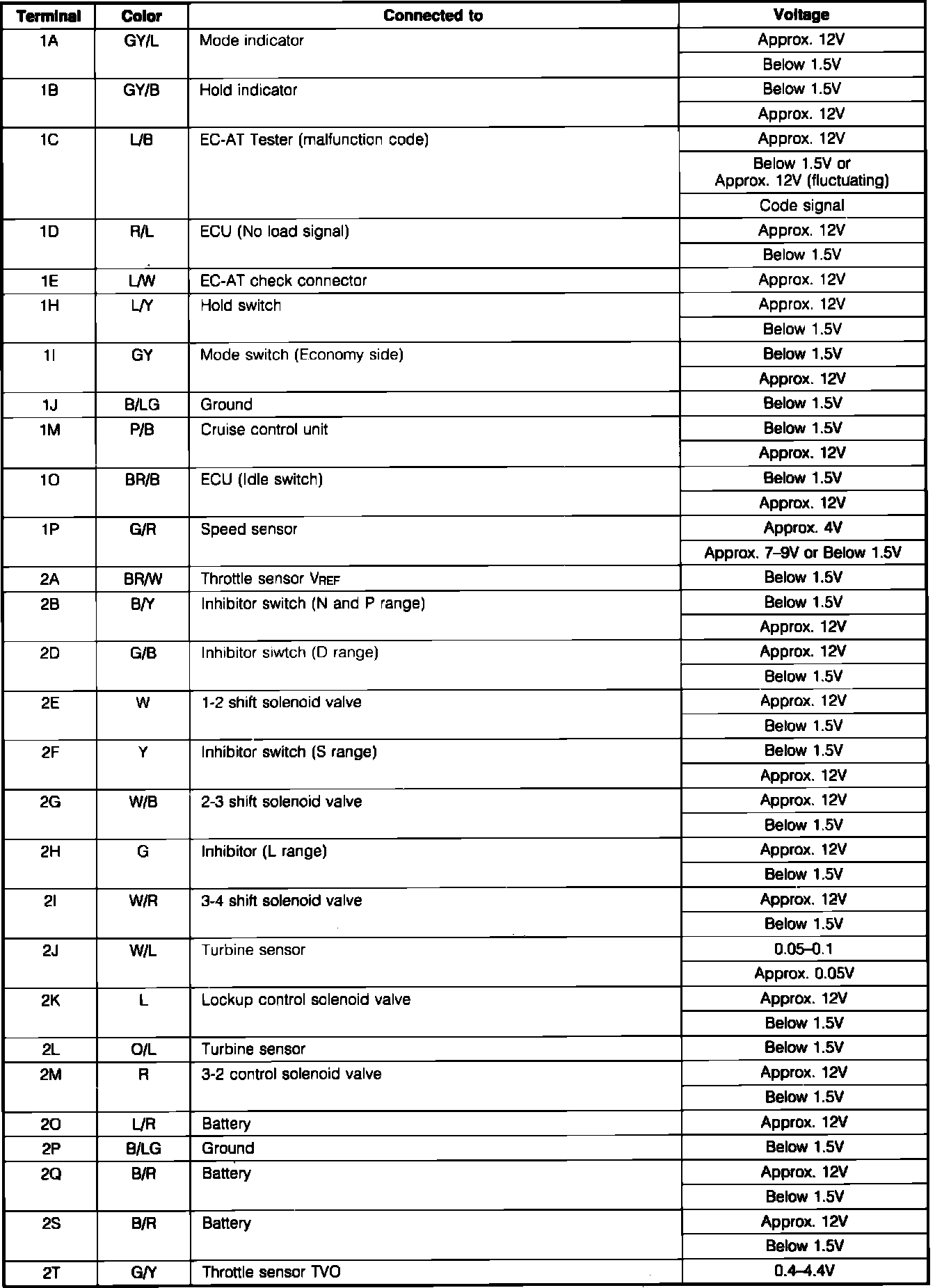

EC-AT Control System And Shift-Lock System. DOHC. ECU Pin Voltage Chart:
