Control Module: Locations

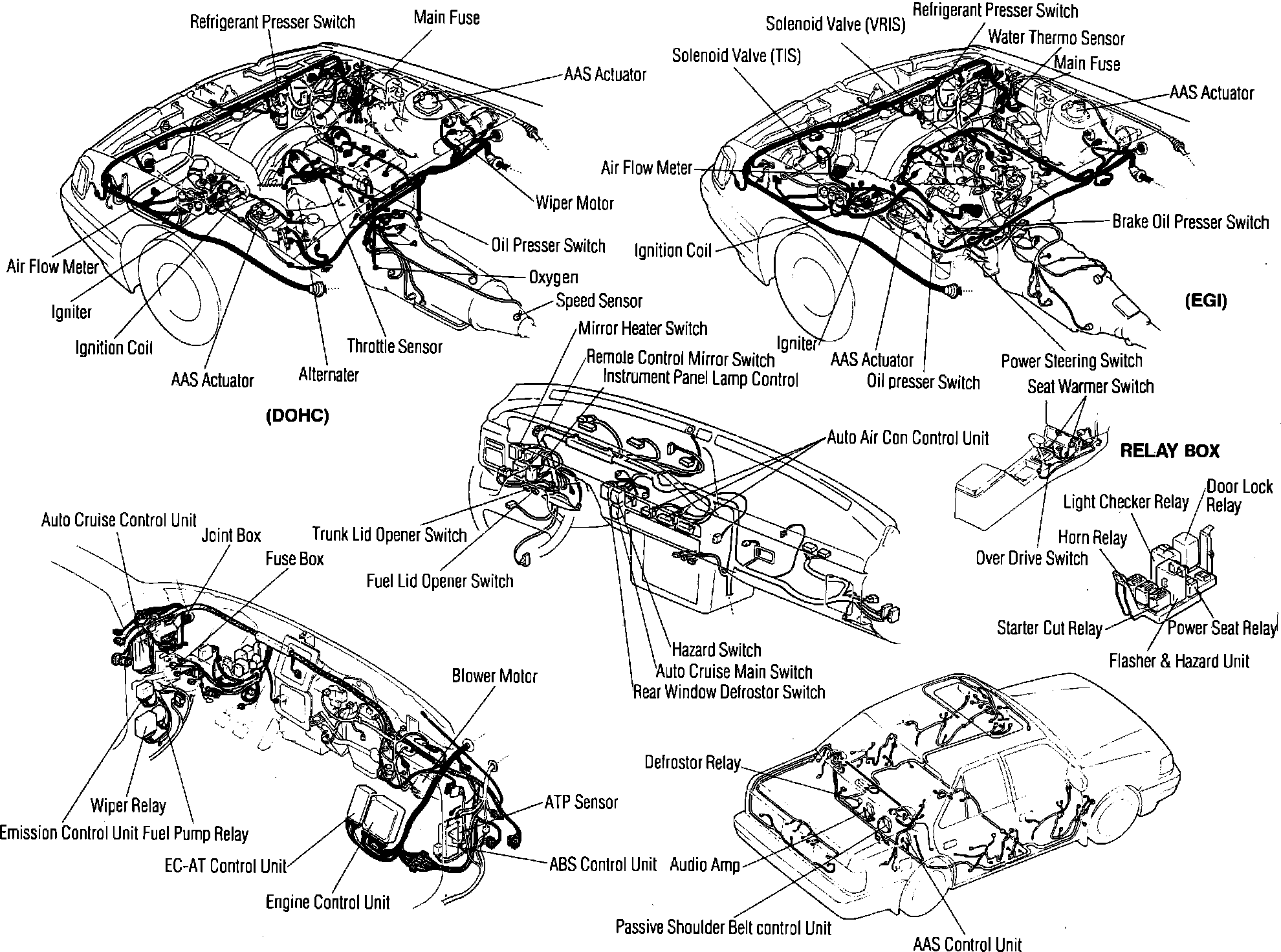

Engine Compartment & I/P Component Locations.:

Lower RH Side Of I/P

Applicable to: 1991 Models
