Front

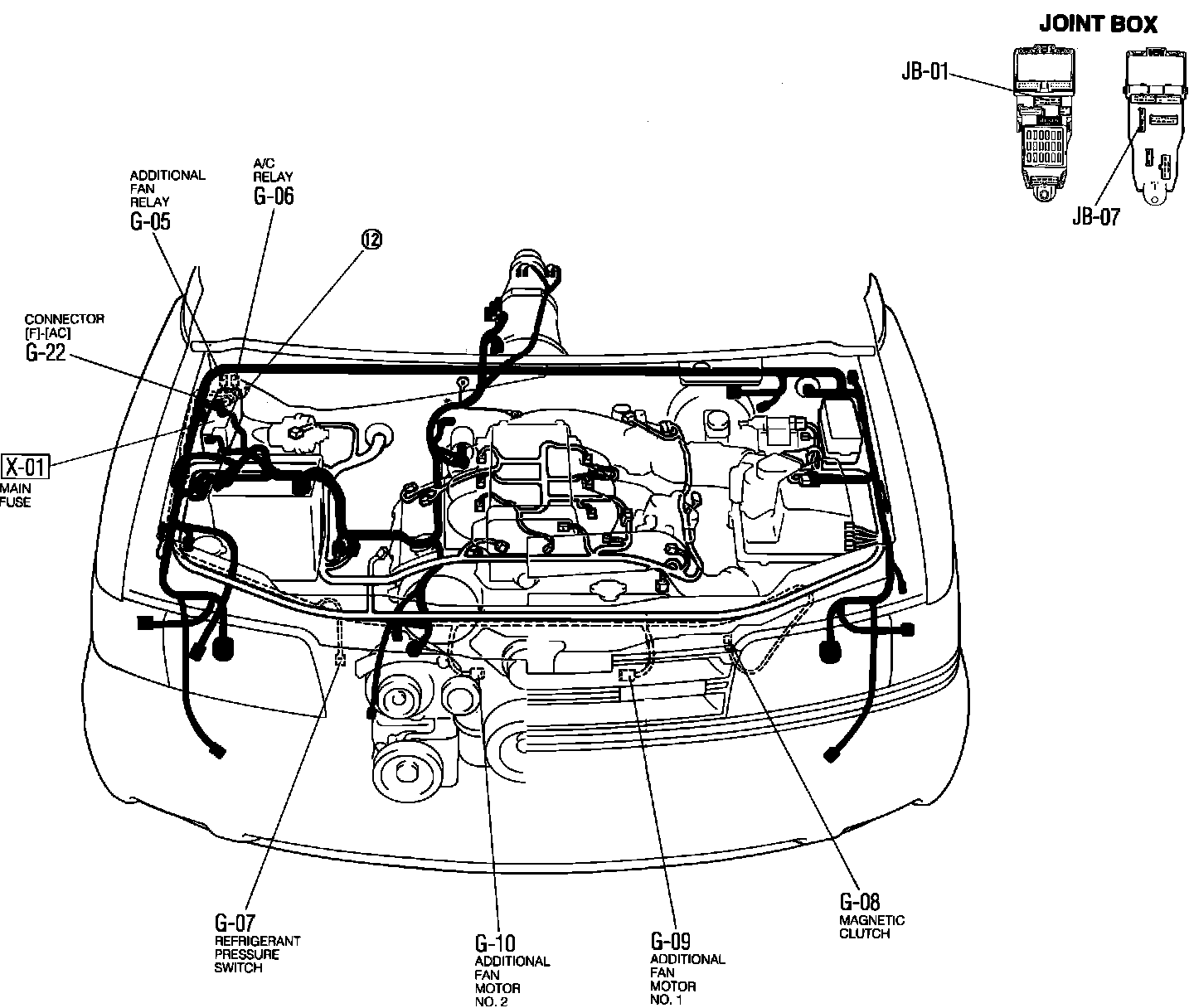

Air Conditioning. Harness And Connector Locations:

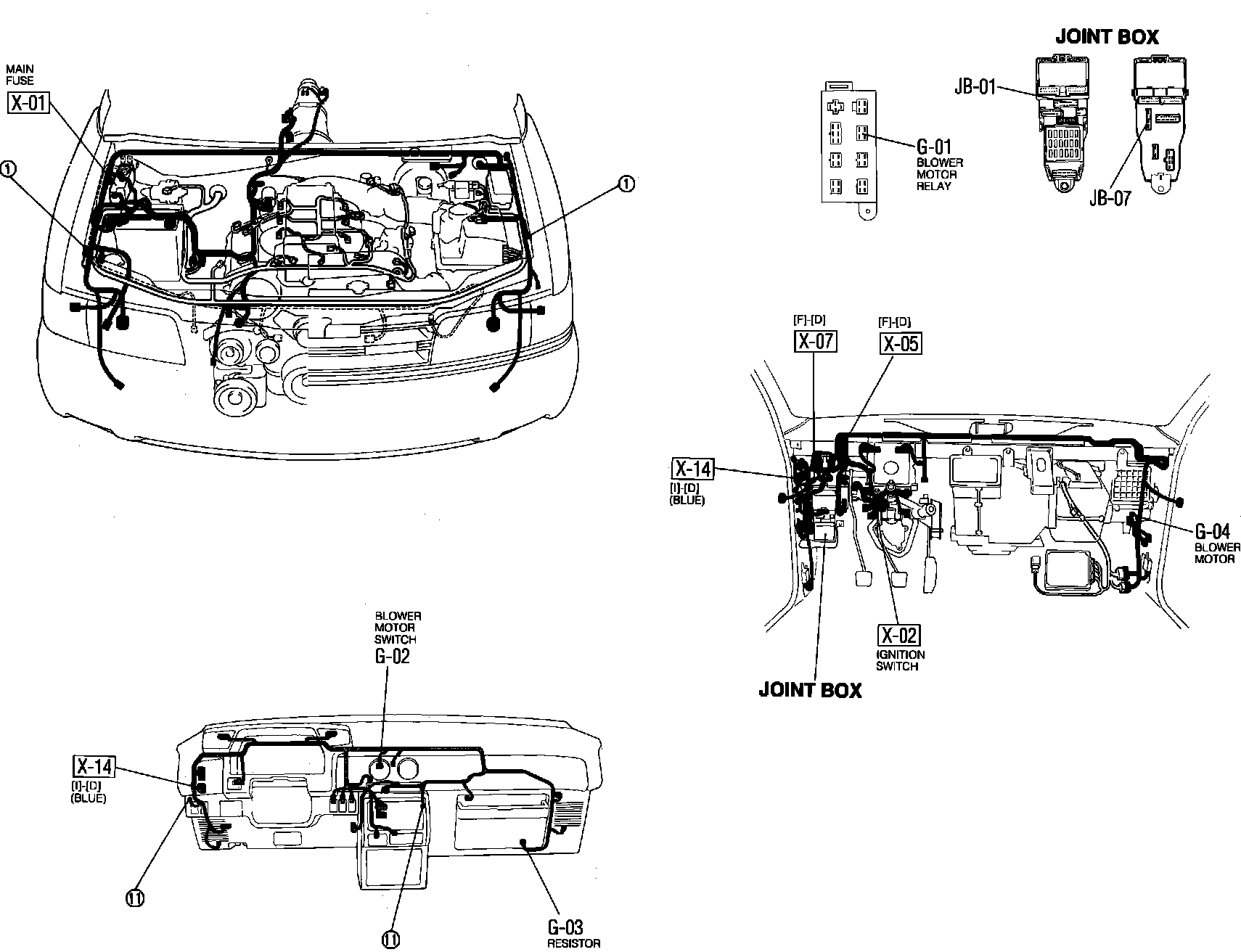

Air Conditioning And Heater. Blower Motor. Harness And Connector Locations:
