Timer/Control Unit: Locations

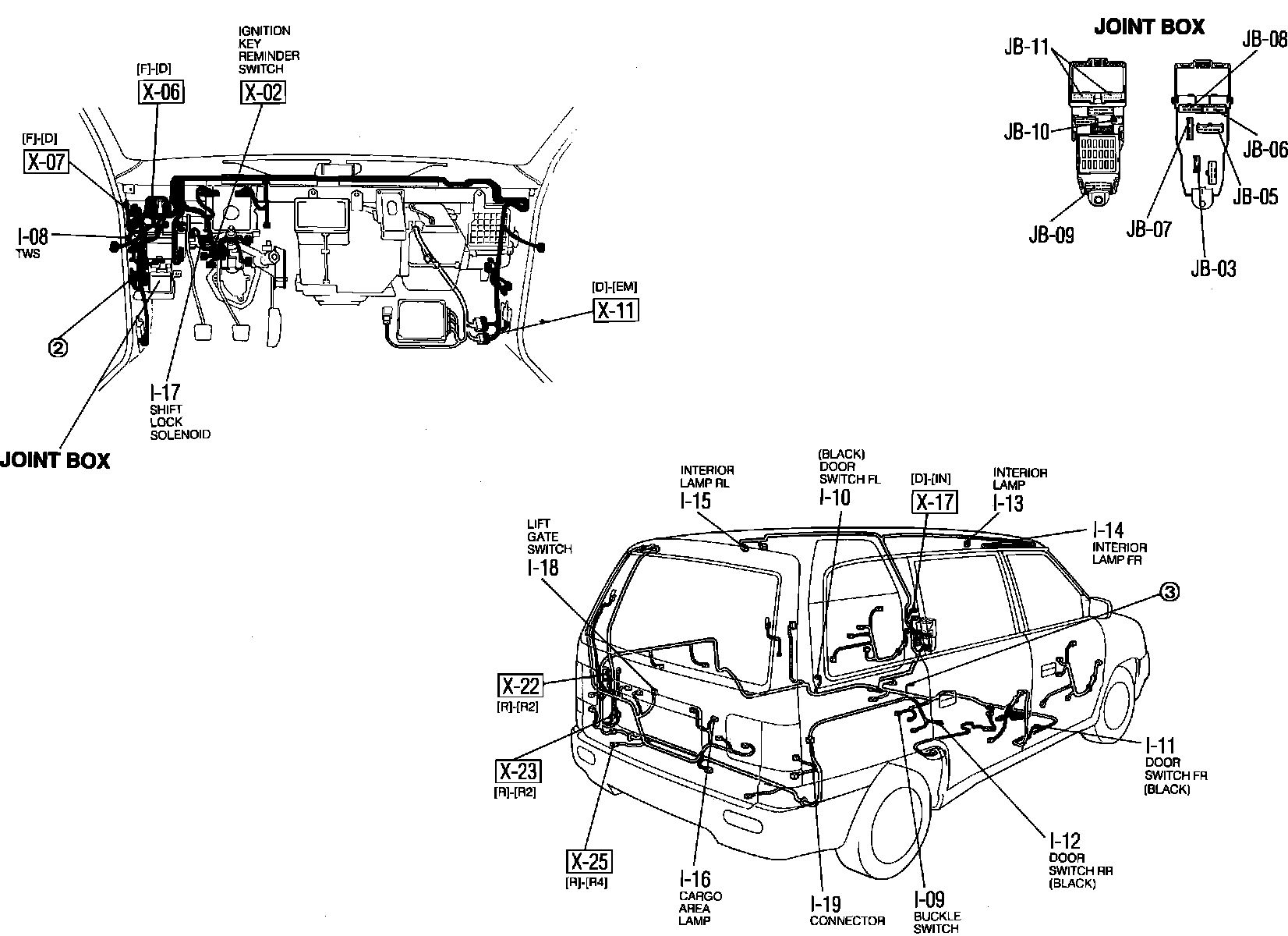

Interior Lamps, Shift-Lock System And Central Processing Unit. Harness And Connector Locations:
