Main Relay (Computer/Fuel System): Locations

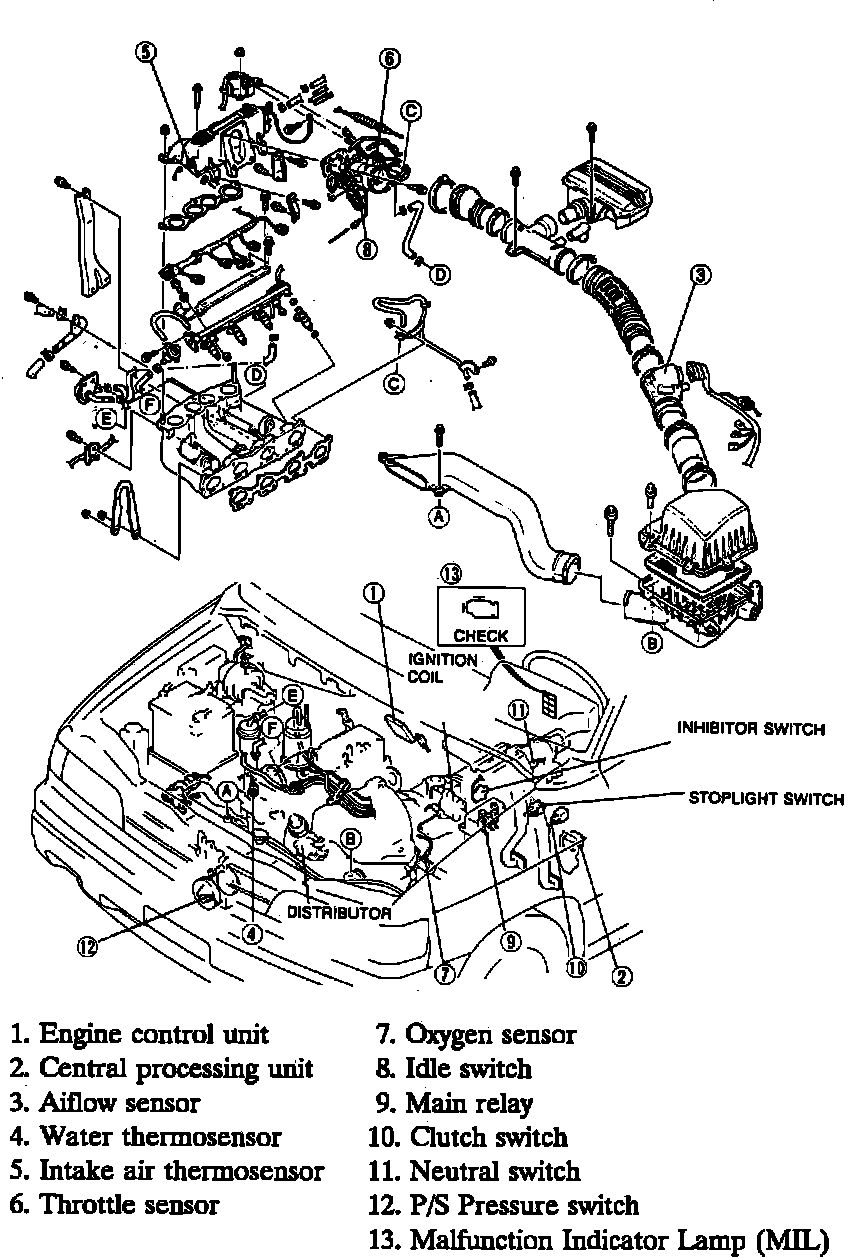

Fuel & Emission Control System Components (Input).:




On Relay Panel, On LH Fender Apron

Applicable to: 2.6L/4-159 Engine
