Engine Control Module

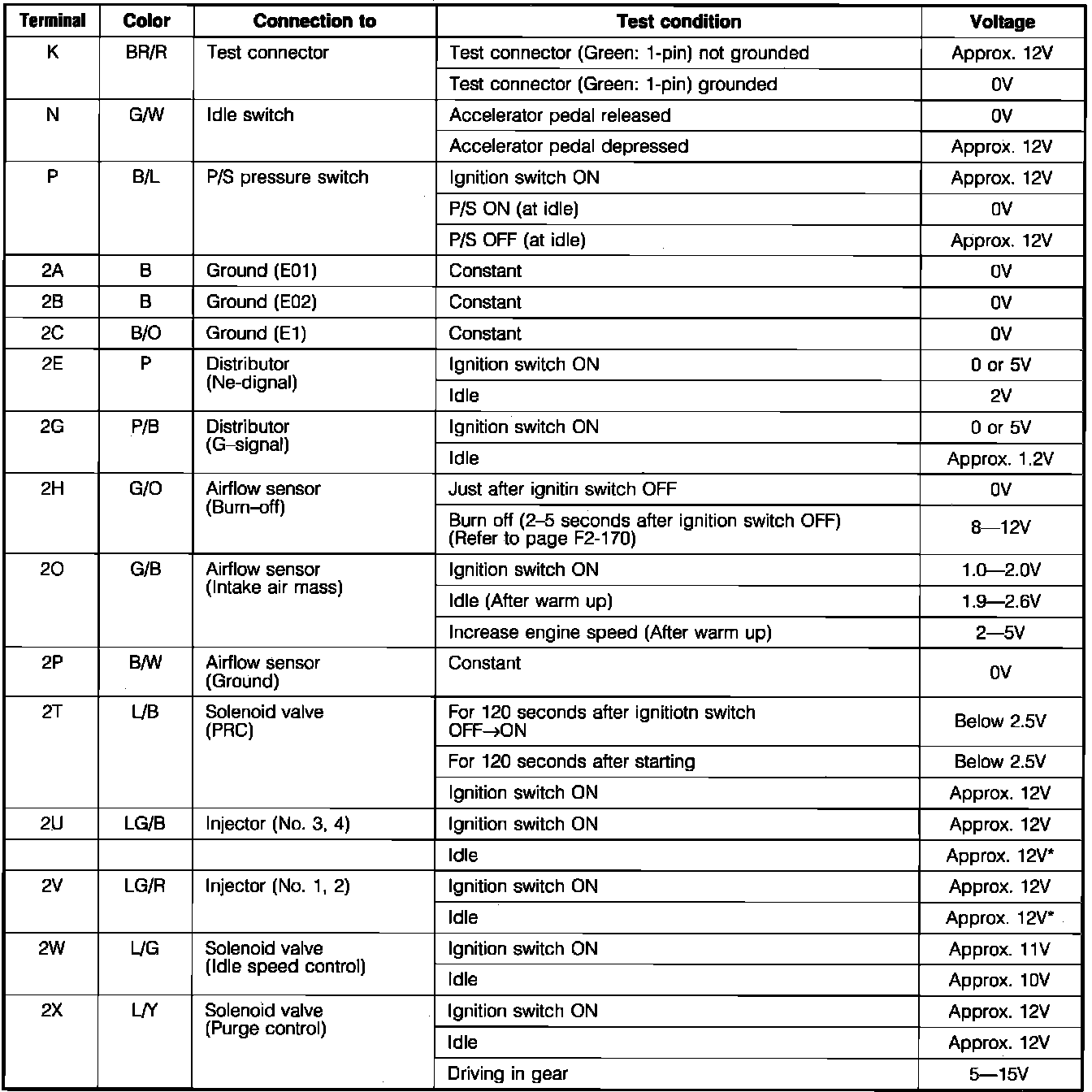

Engine Control Unit. ECU Pin Voltage Chart:

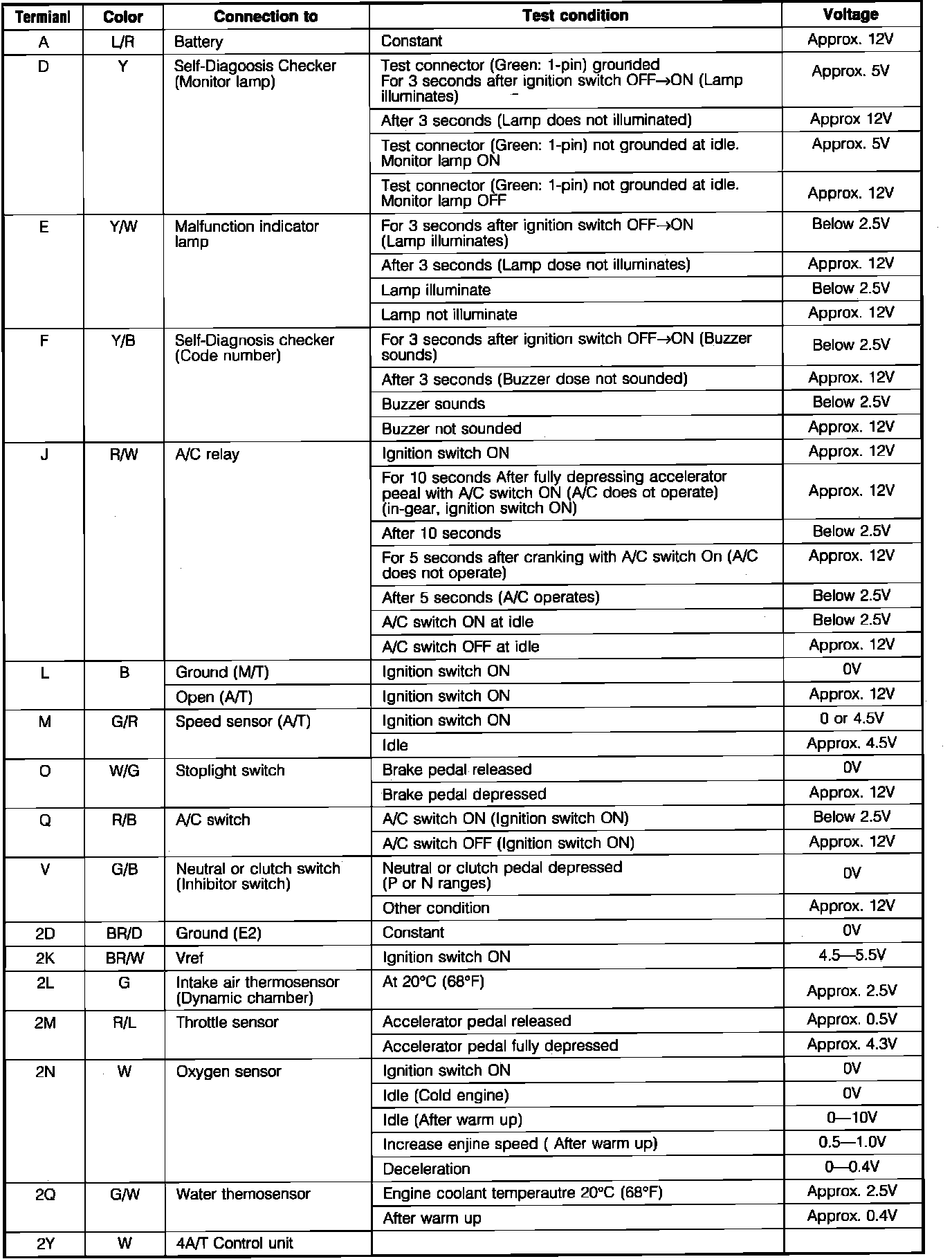

Engine Control Unit. Ecu Pin Voltage Chart:



Engine Control Unit. ECU Pin Voltage Chart:
