Torque Specifications

Intake:











Exhaust Manifold:






Upper Engine:






Head Bolt Torque/Sequence:

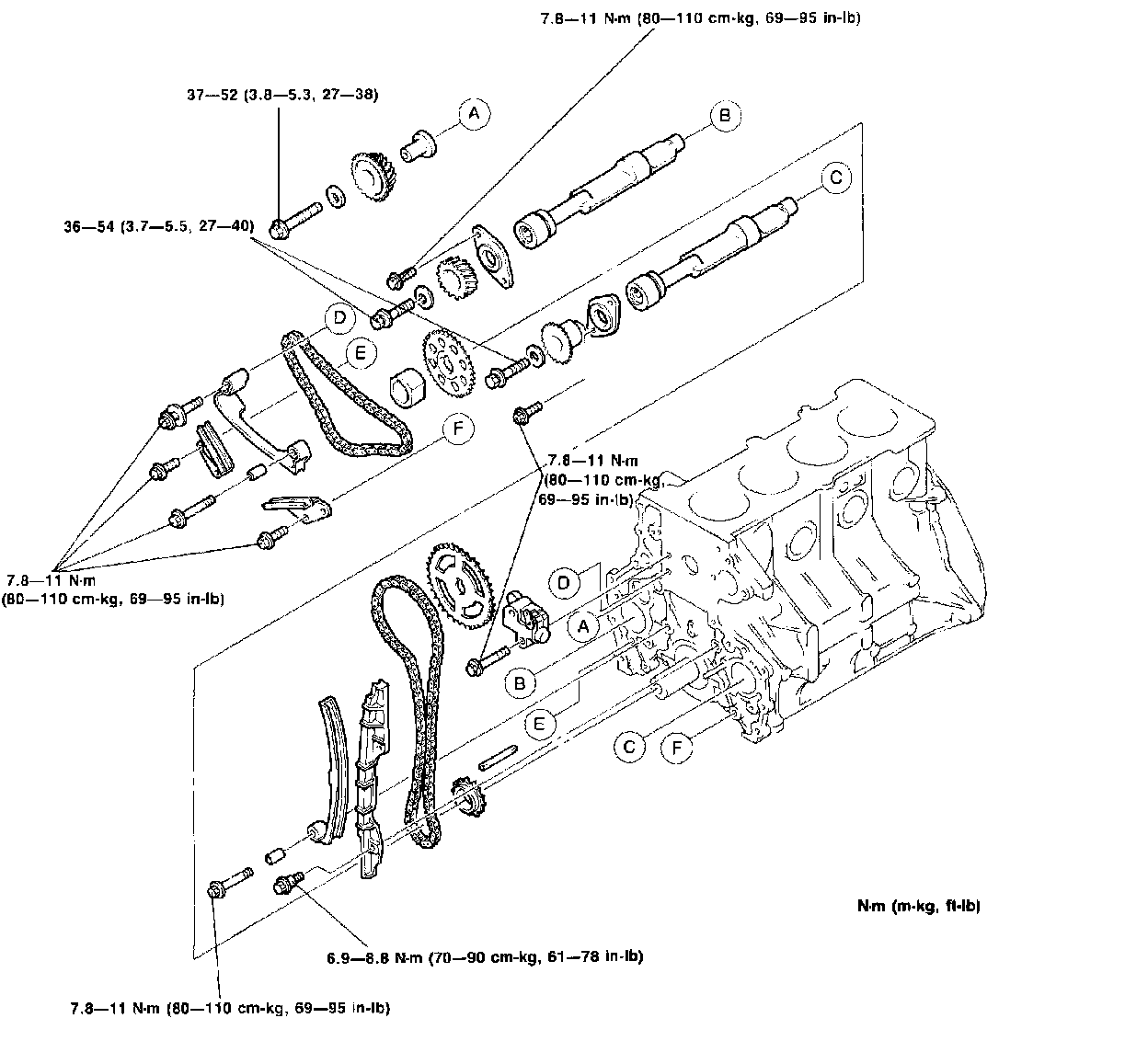

Timing Components:

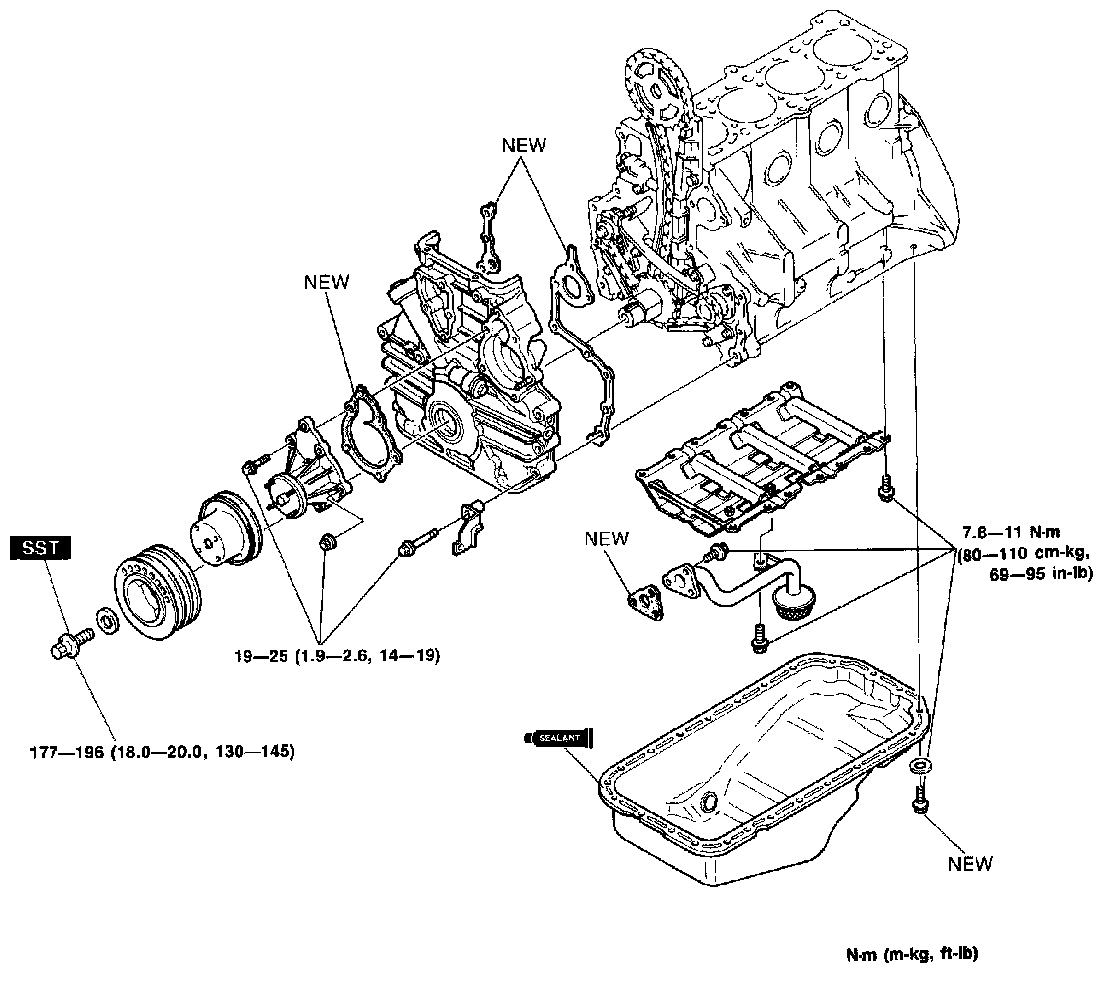

Lower Engine:

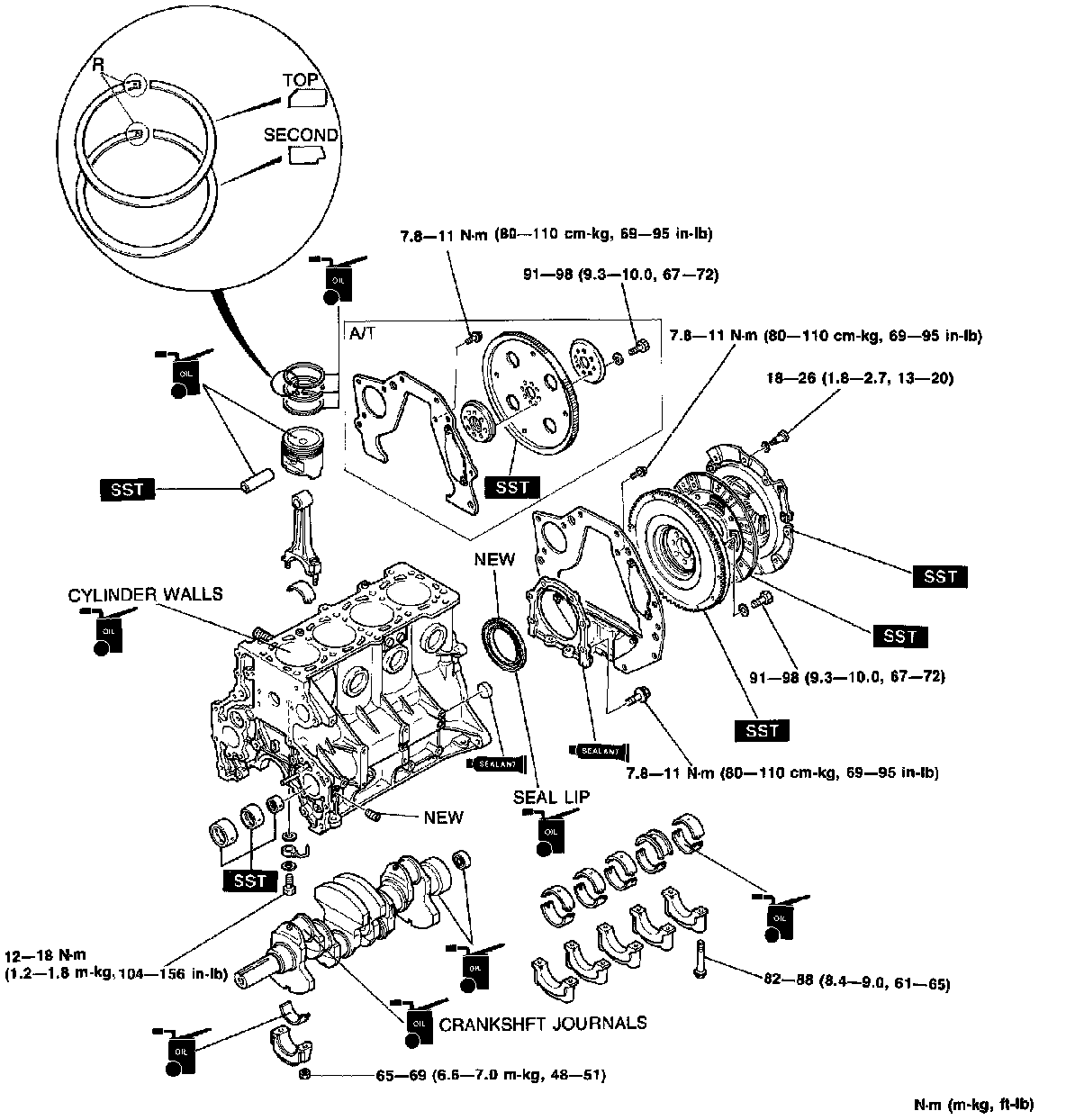

Main Bolt Torque/Sequence:
