Code 9: Coolant THERMOSENSOR

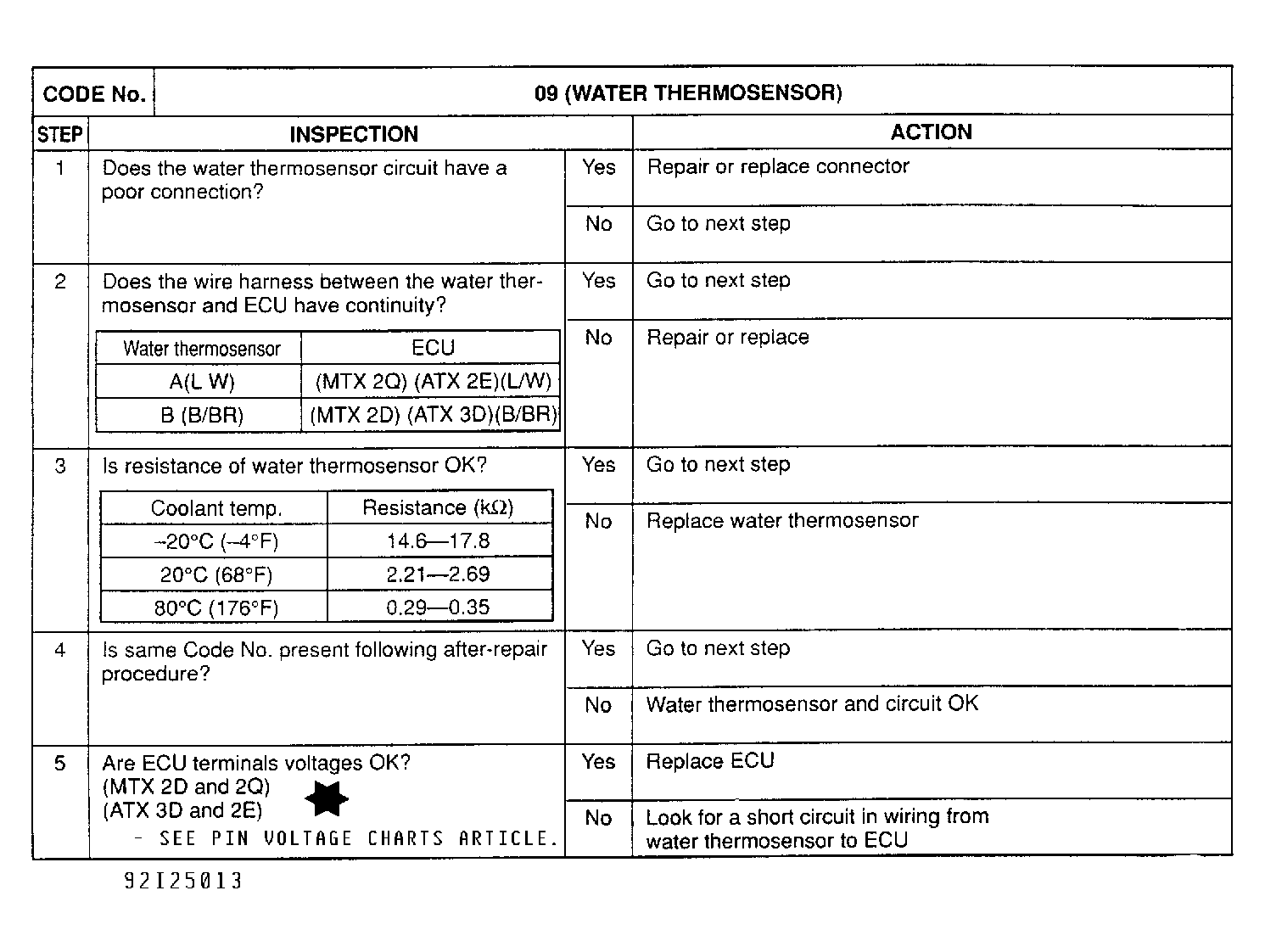

Fig 1: Trouble Code No. 9 Coolant Thermosensor
G92I25013Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Coolant Thermosensor
G92E25019Courtesy of MAZDA MOTORS CORP.
