Home >> Mazda >> 1992 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Specifications >> Fluid Type Specifications >> Engine >> System Specifications
April 5, 2026: LEMON Manuals is launched! Read the announcement.

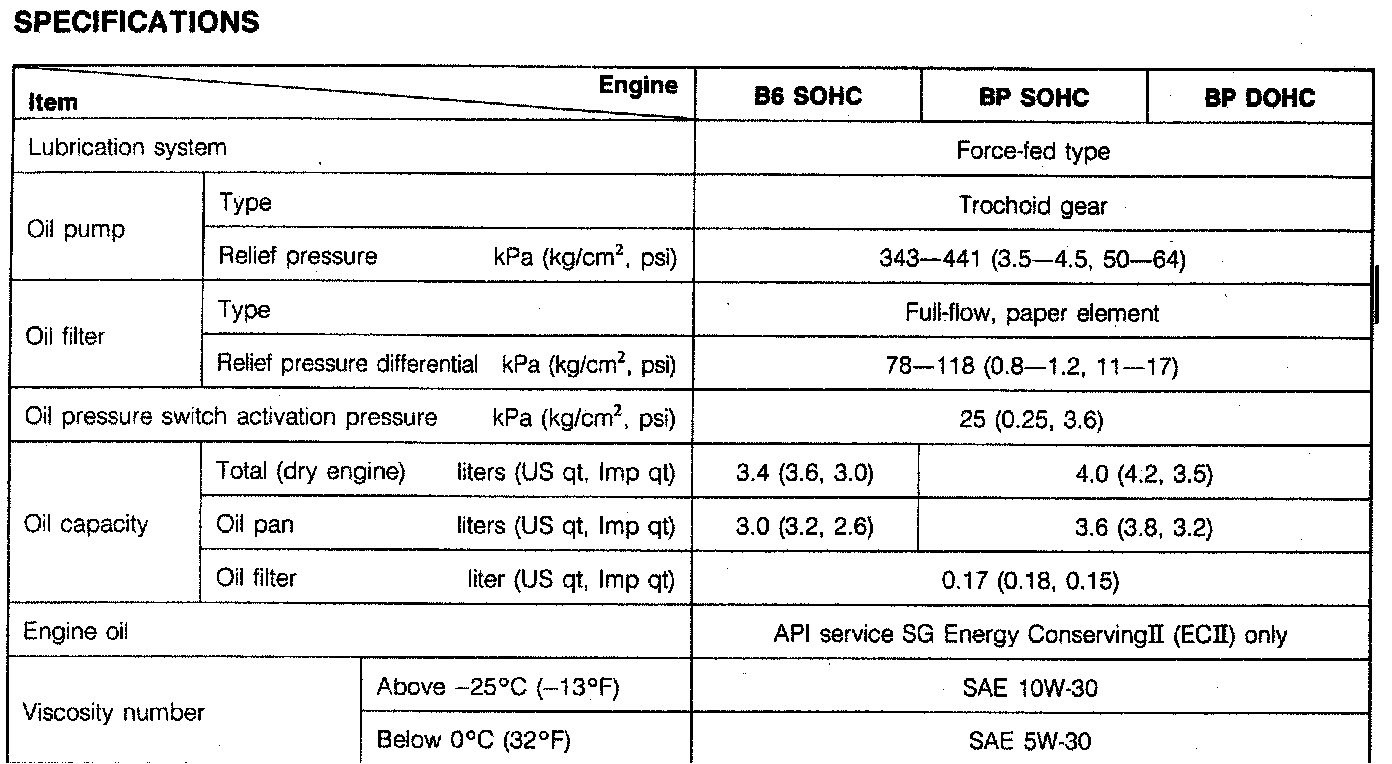

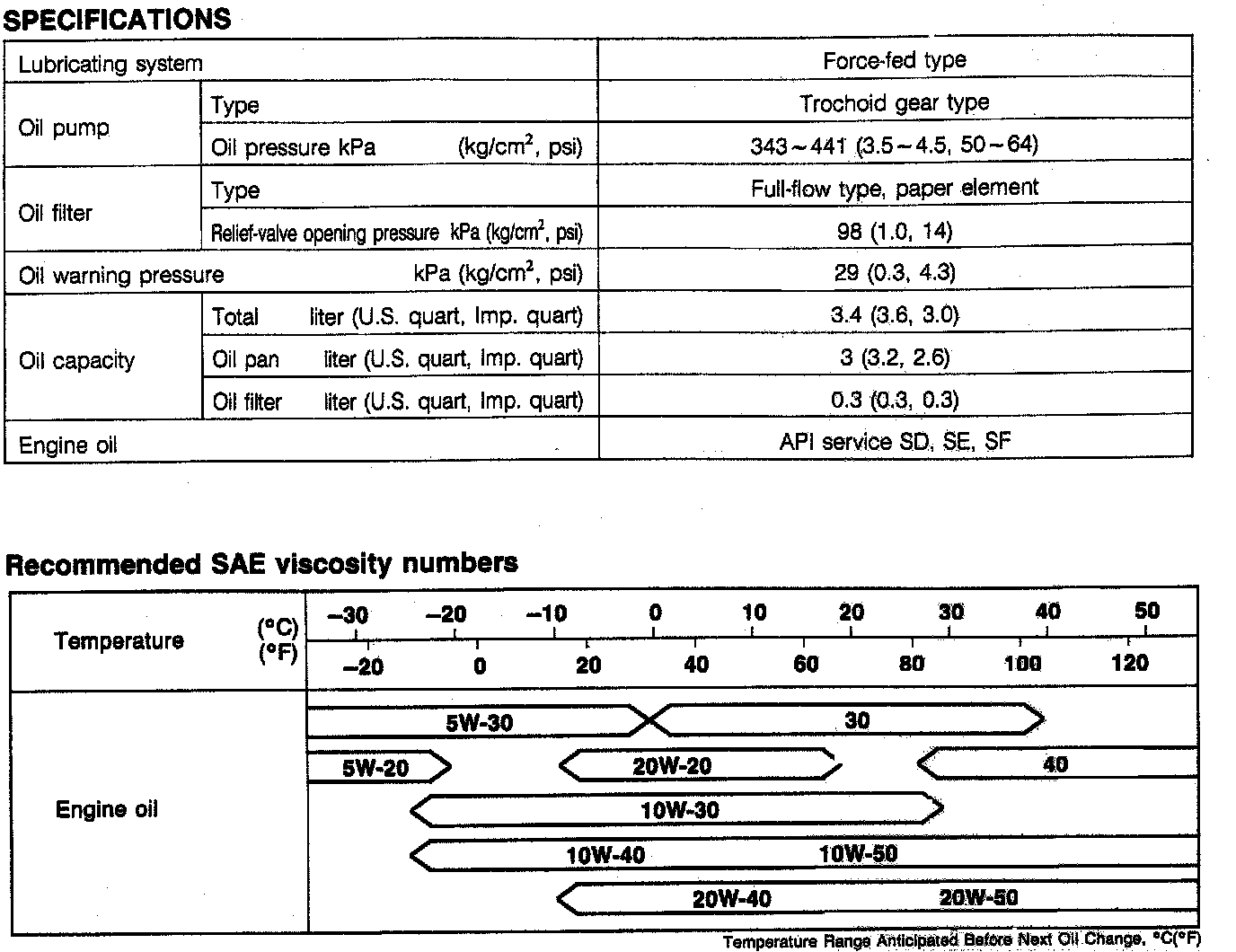

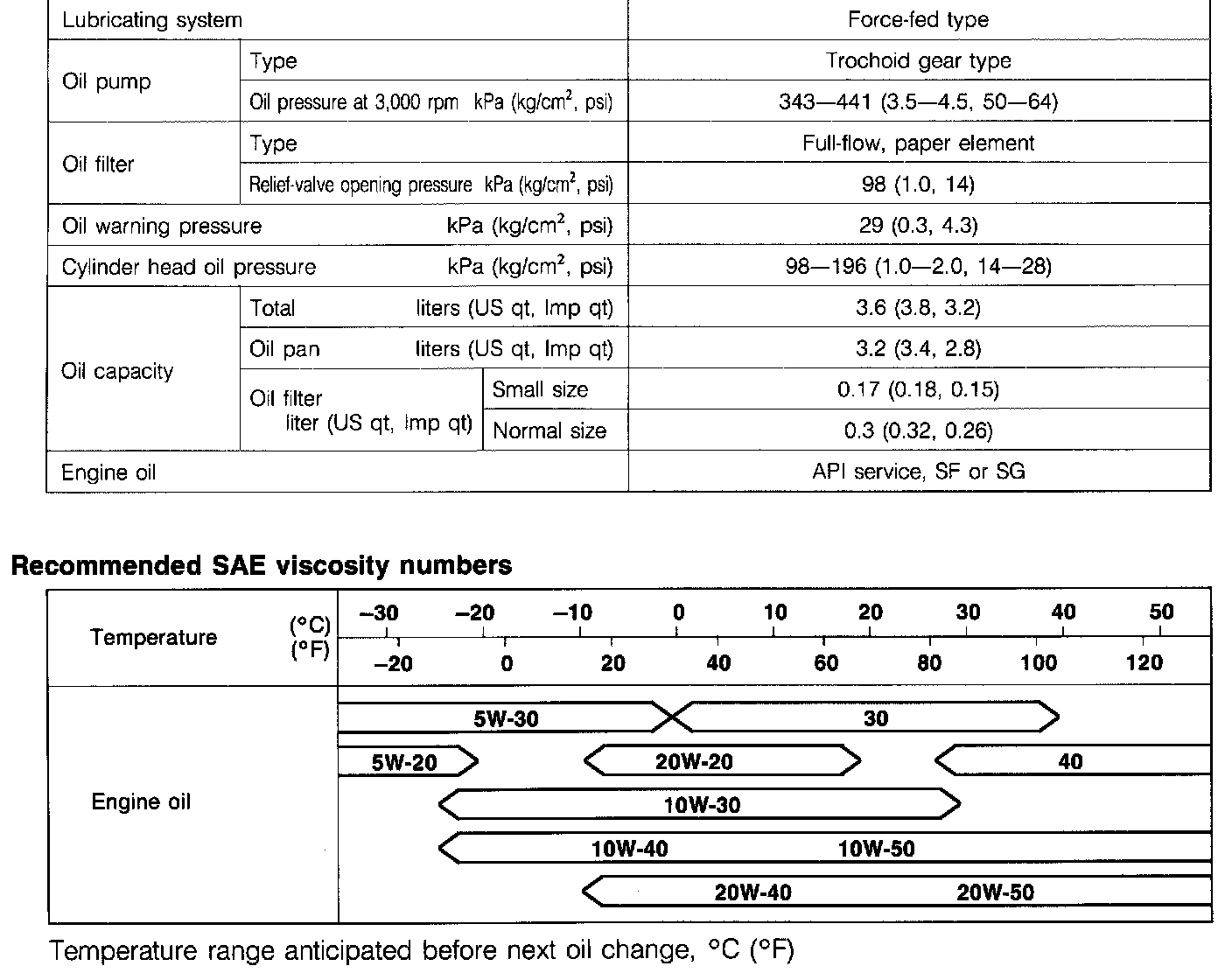

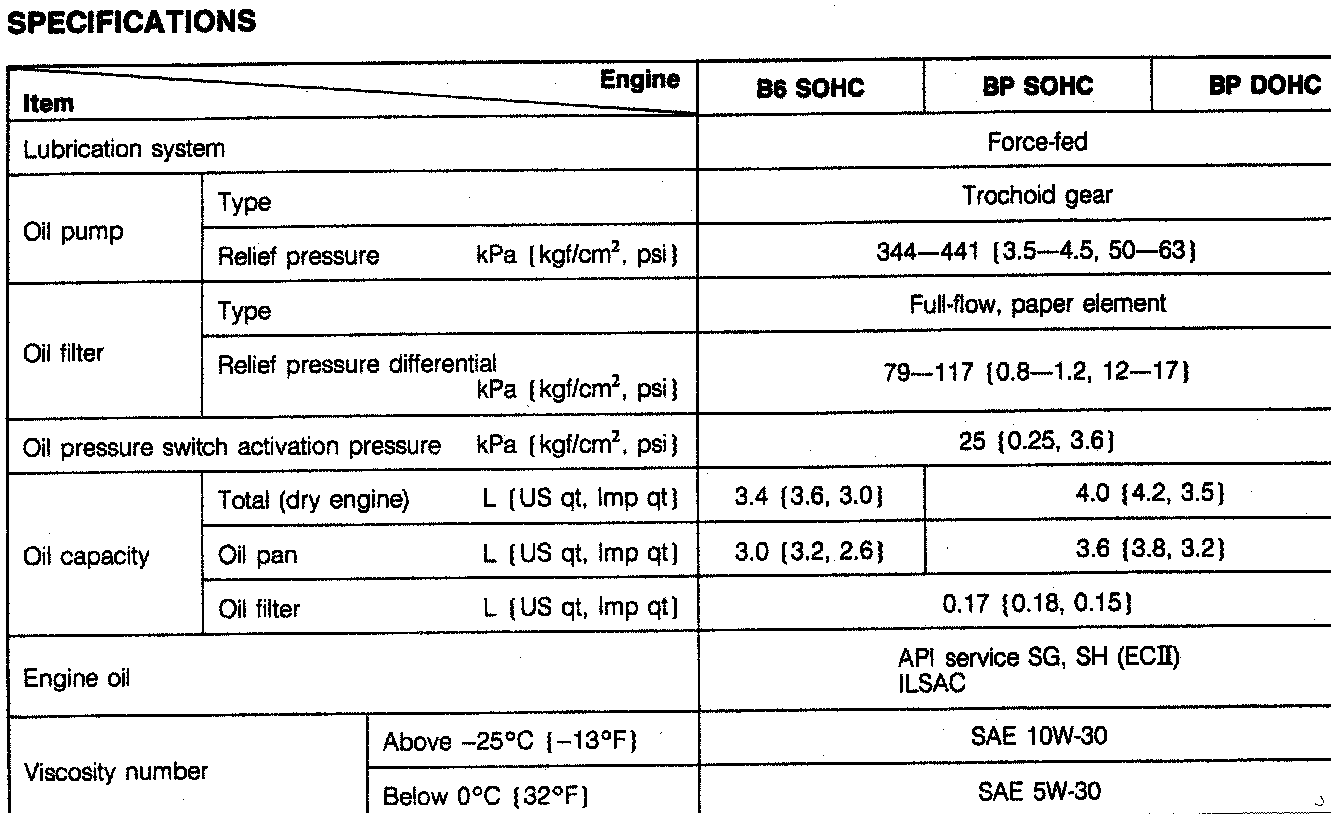

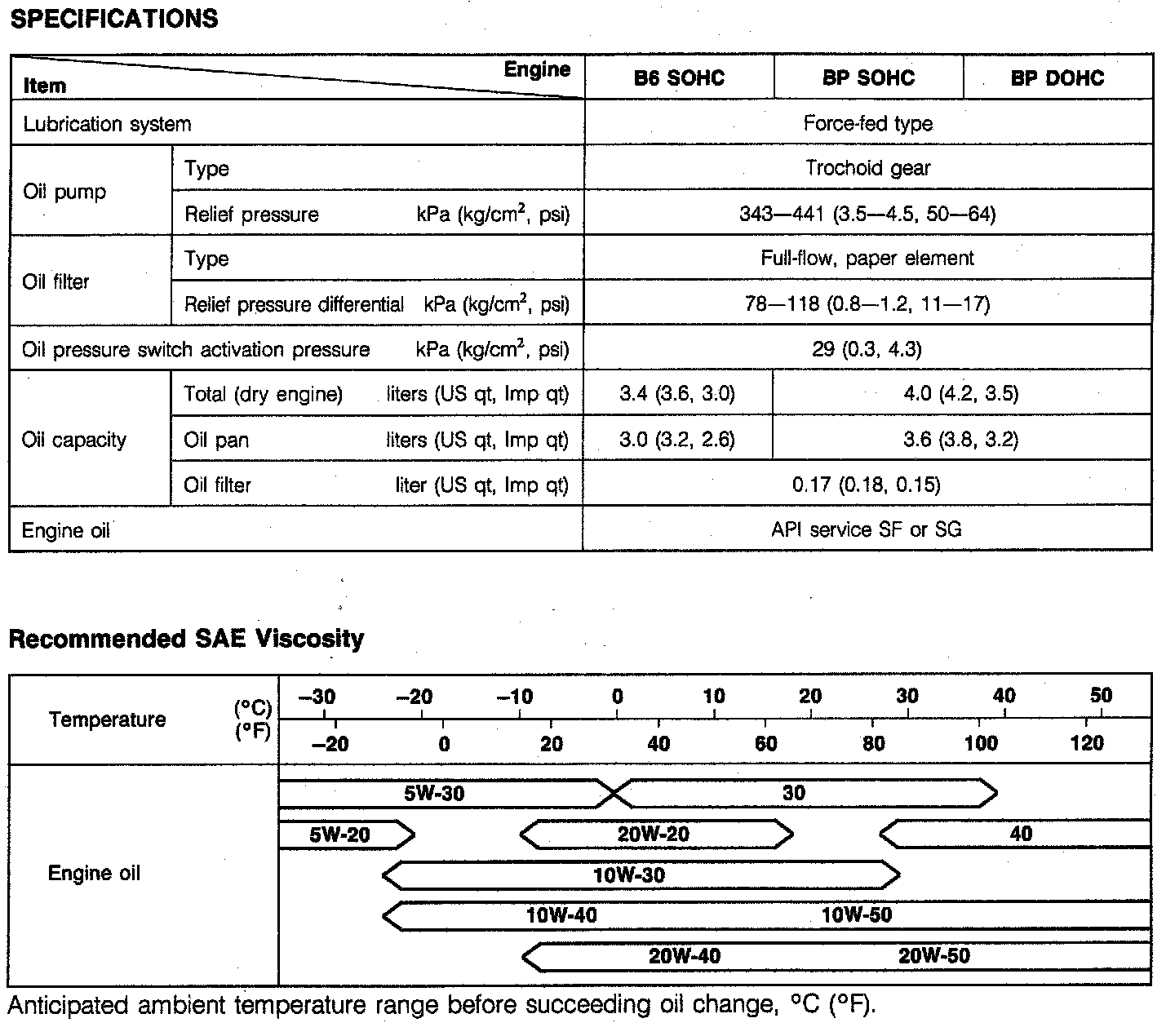

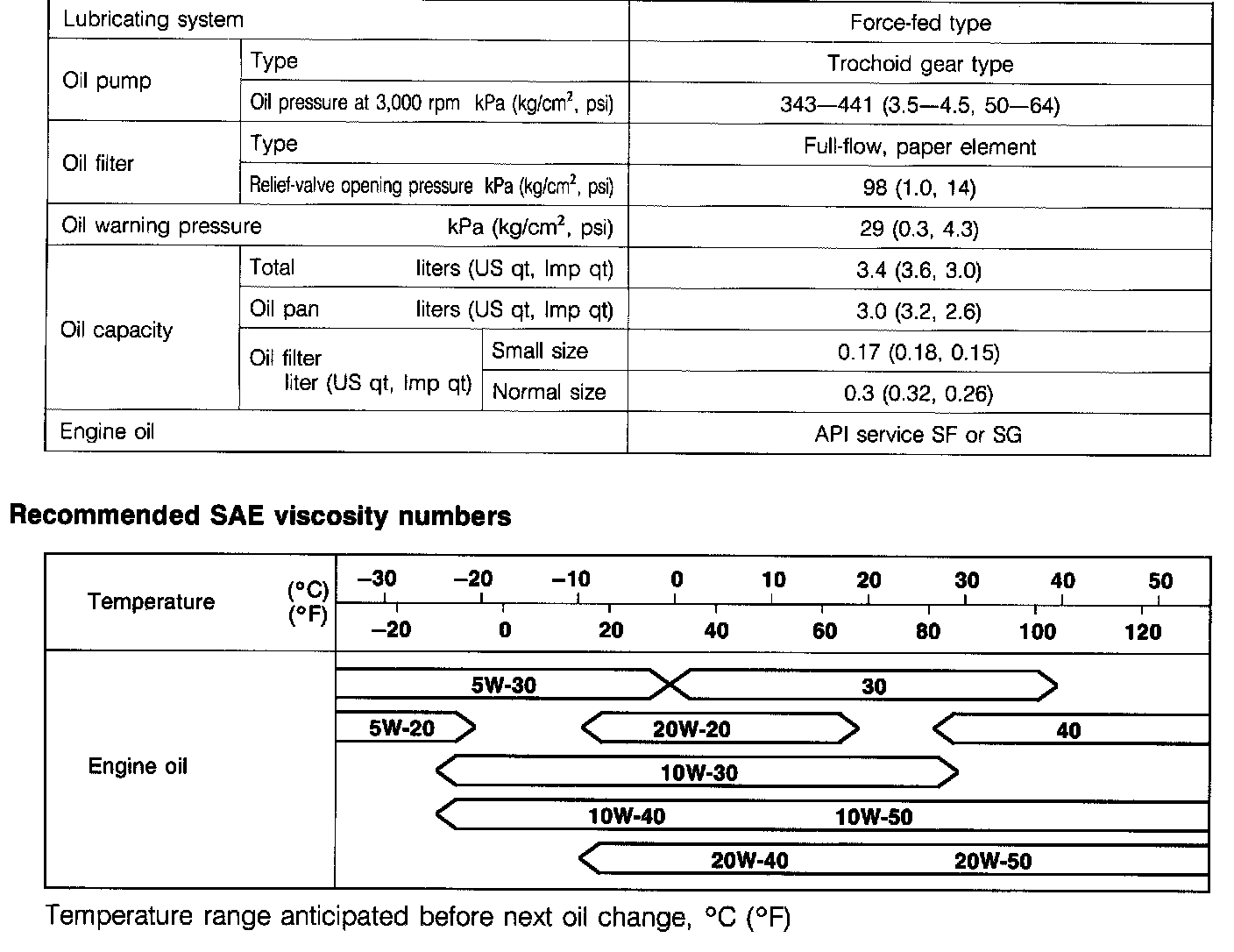

System Specifications








1987-88






SOHC







DOHC

1989






1990






1991-92






1993-94
