Connector Identification

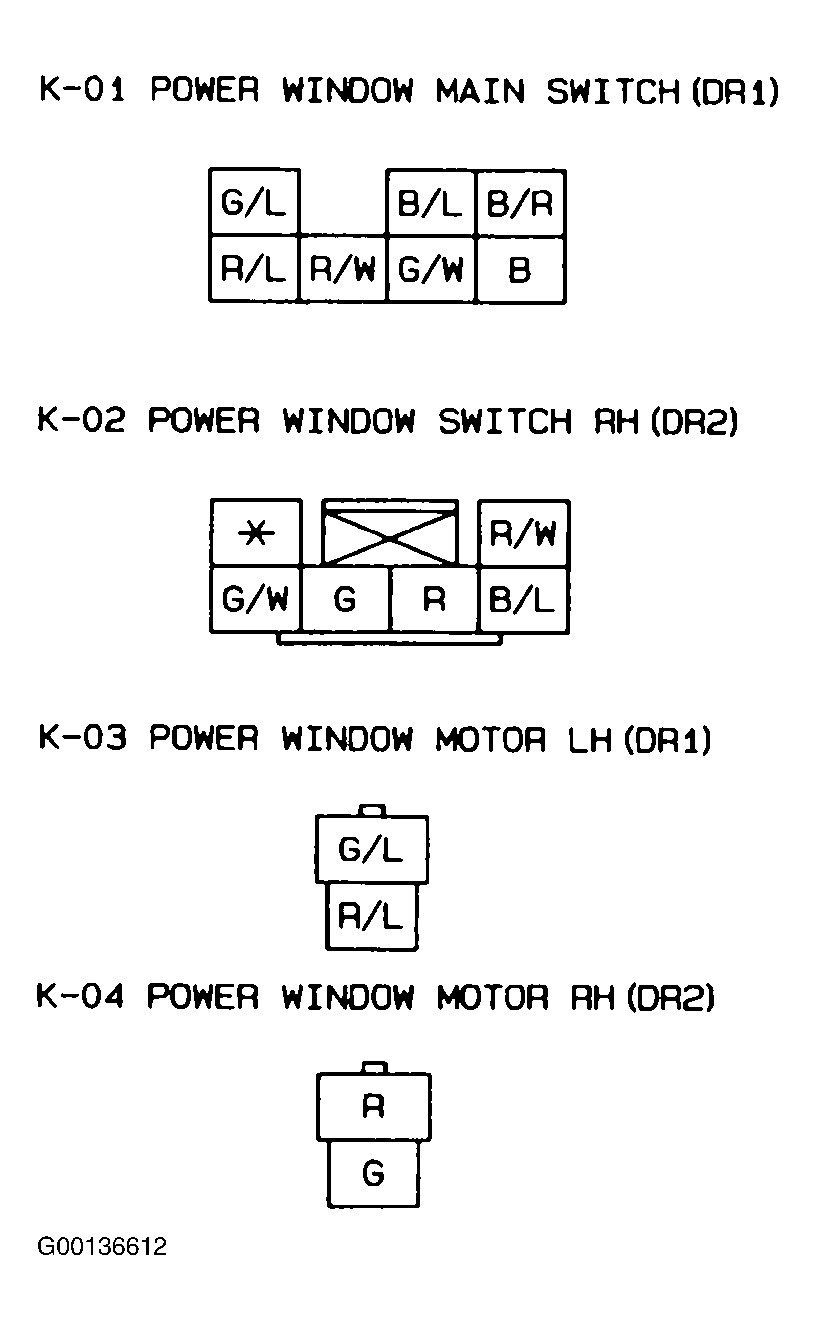

Fig 1: Identifying Power Window System Connectors (MX-6)
G00136612Courtesy of MAZDA MOTORS CORP.

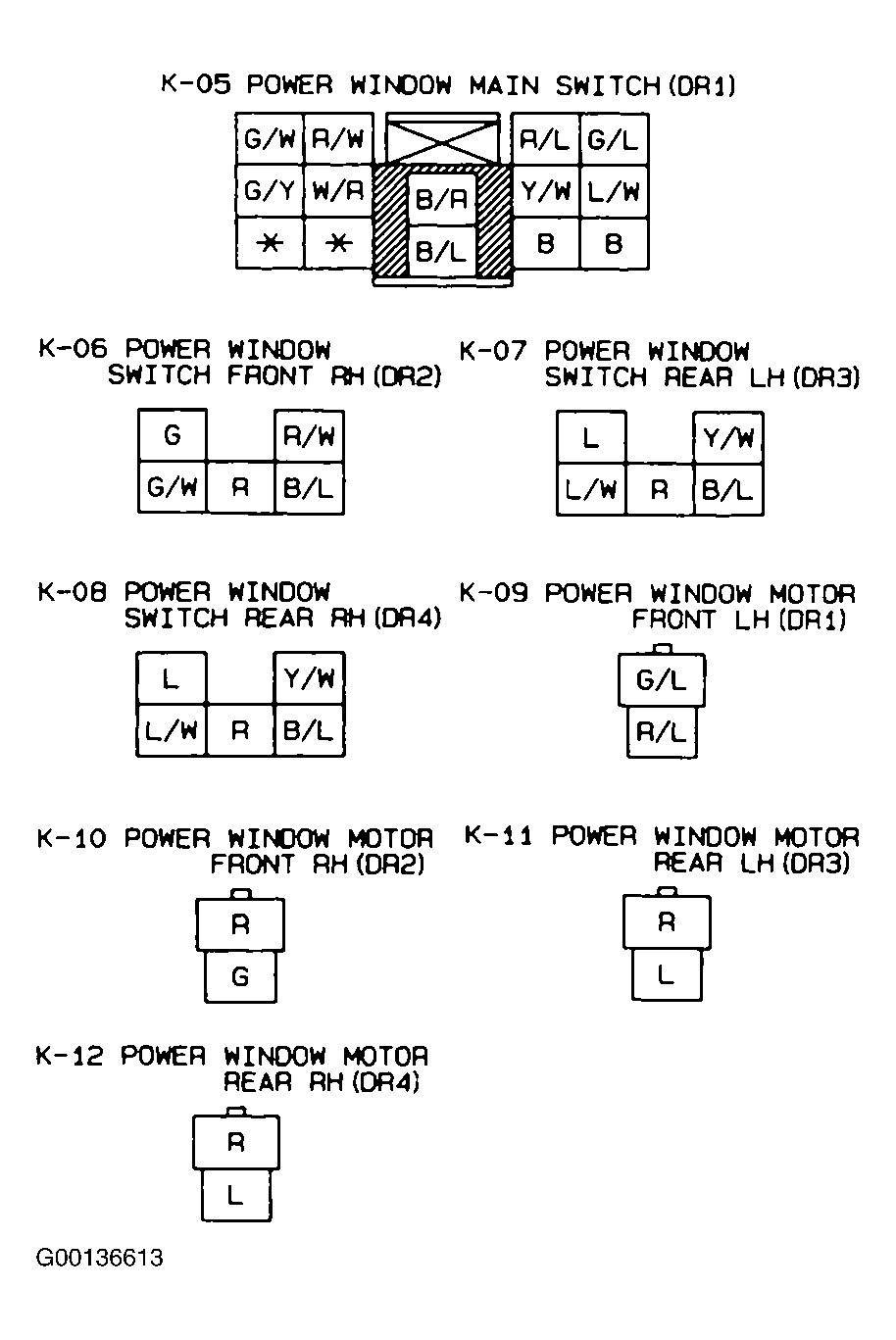

Fig 2: Identifying Power Window System Connectors (626)
G00136613Courtesy of MAZDA MOTORS CORP.
