Home >> Mazda >> 1992 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Diagrams >> Connector Views >> X-1
April 5, 2026: LEMON Manuals is launched! Read the announcement.

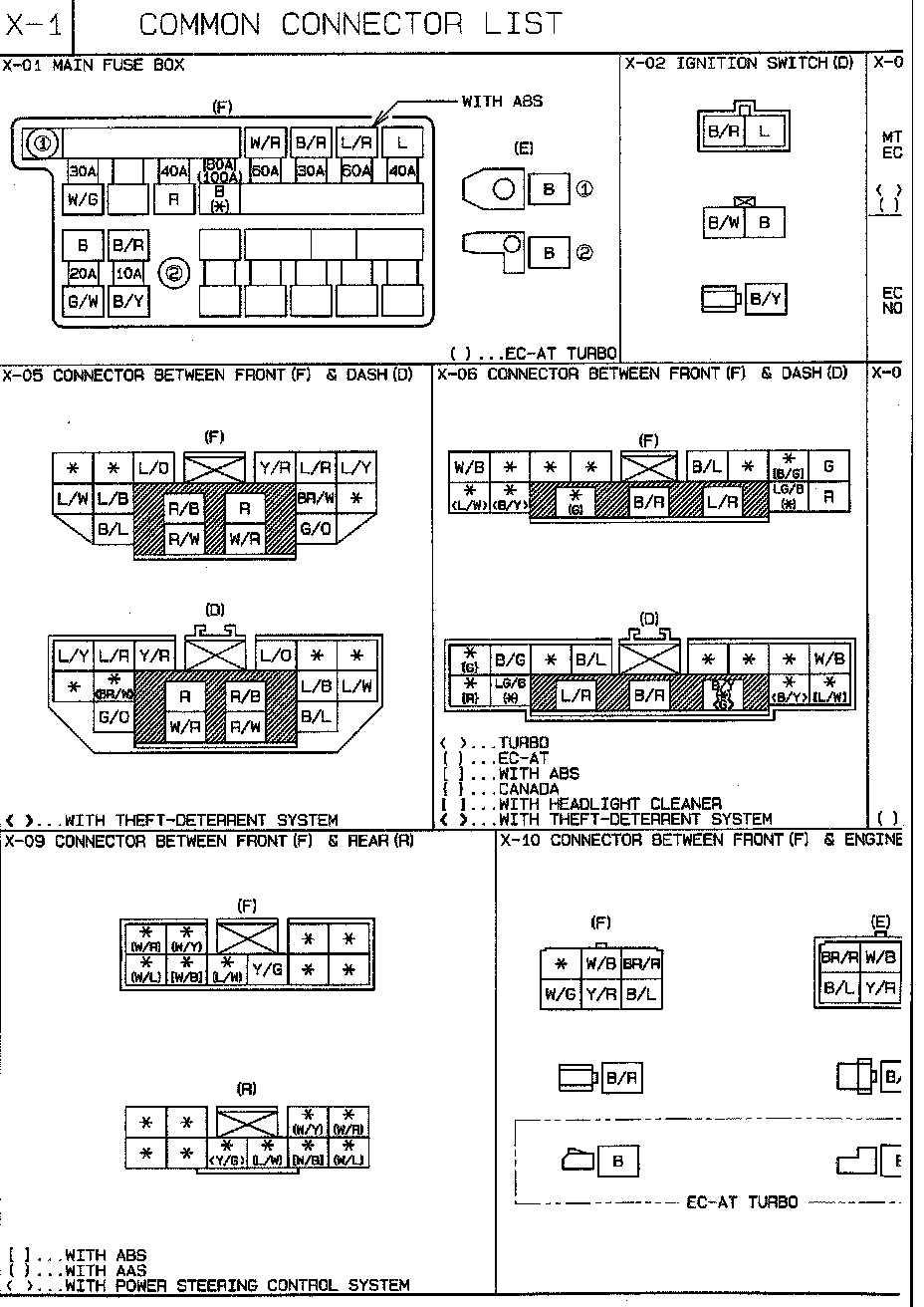

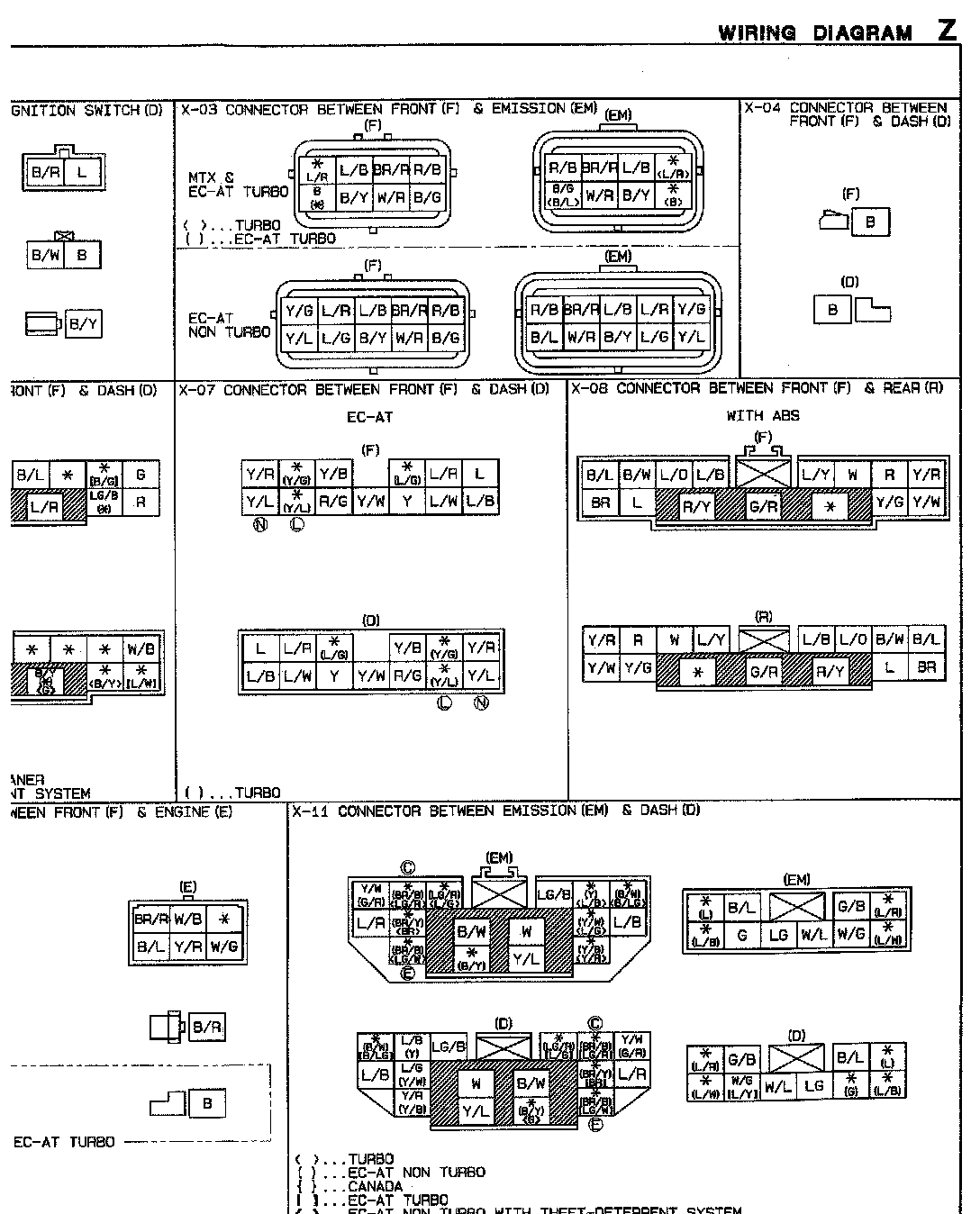

X-1
