With Logical Mode Control

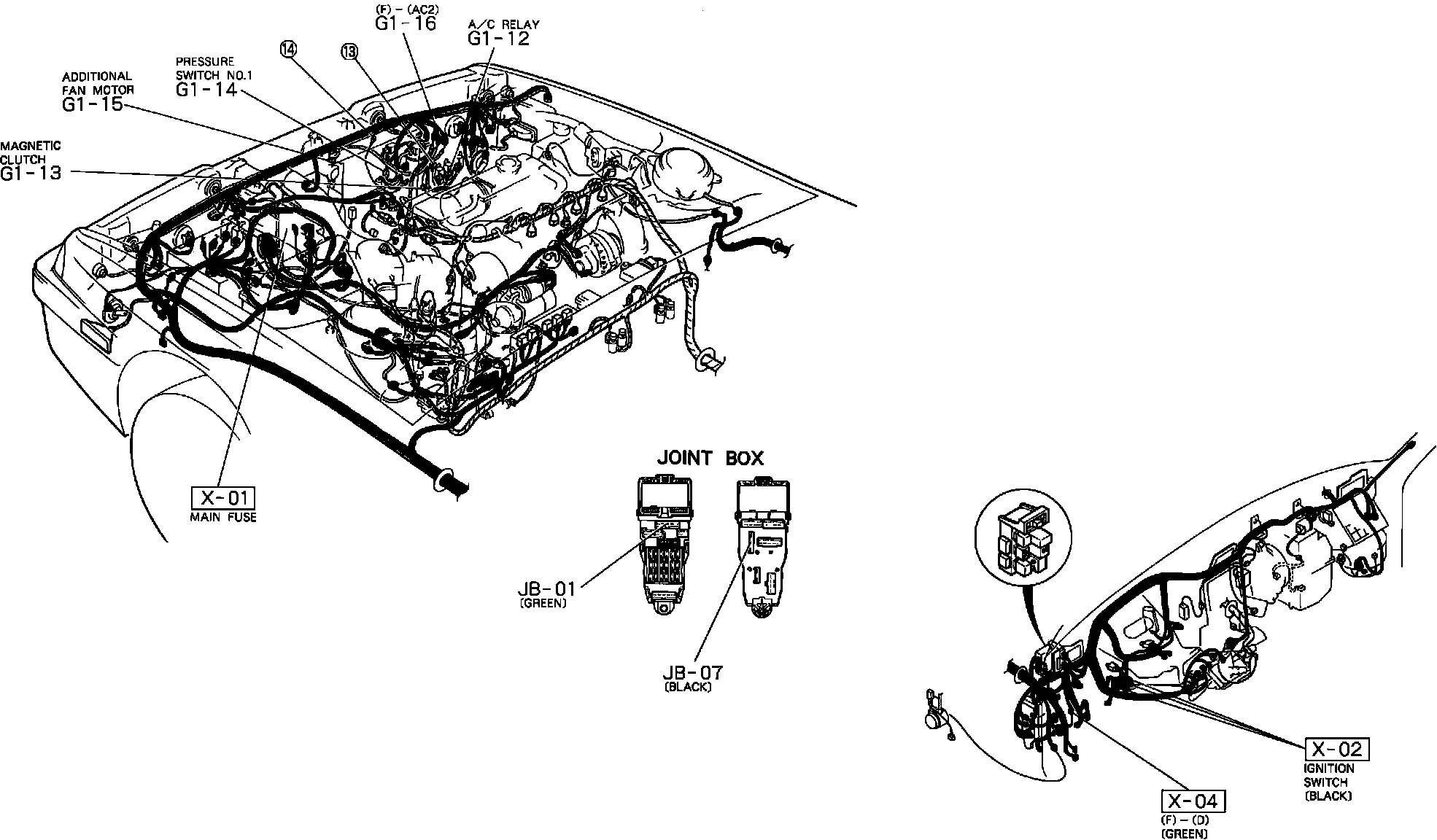

Heater And Air Conditioner. With Logical Mode Control. Harness And Connector Locations:
