Symbol Idenification

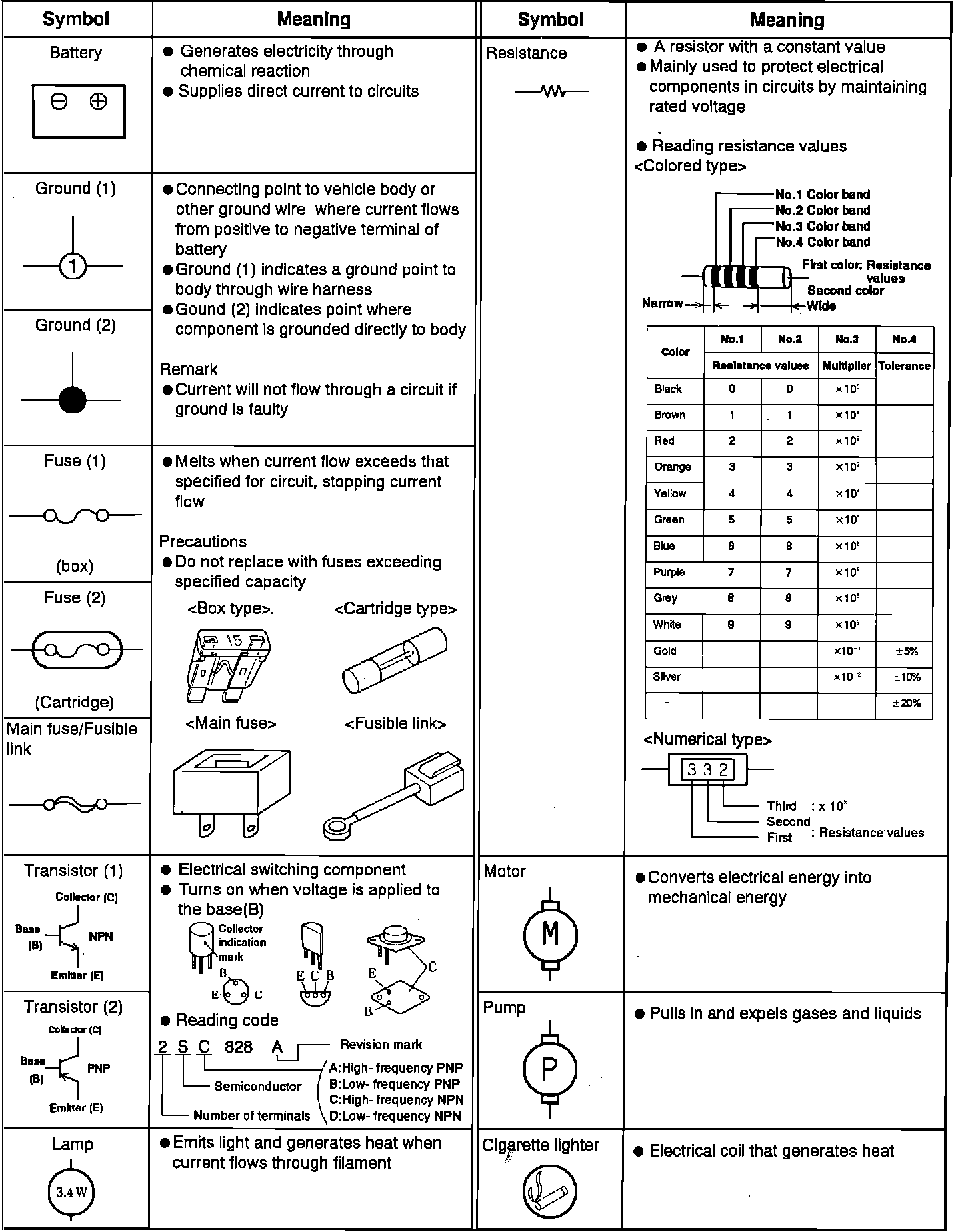

Symbol Identification:

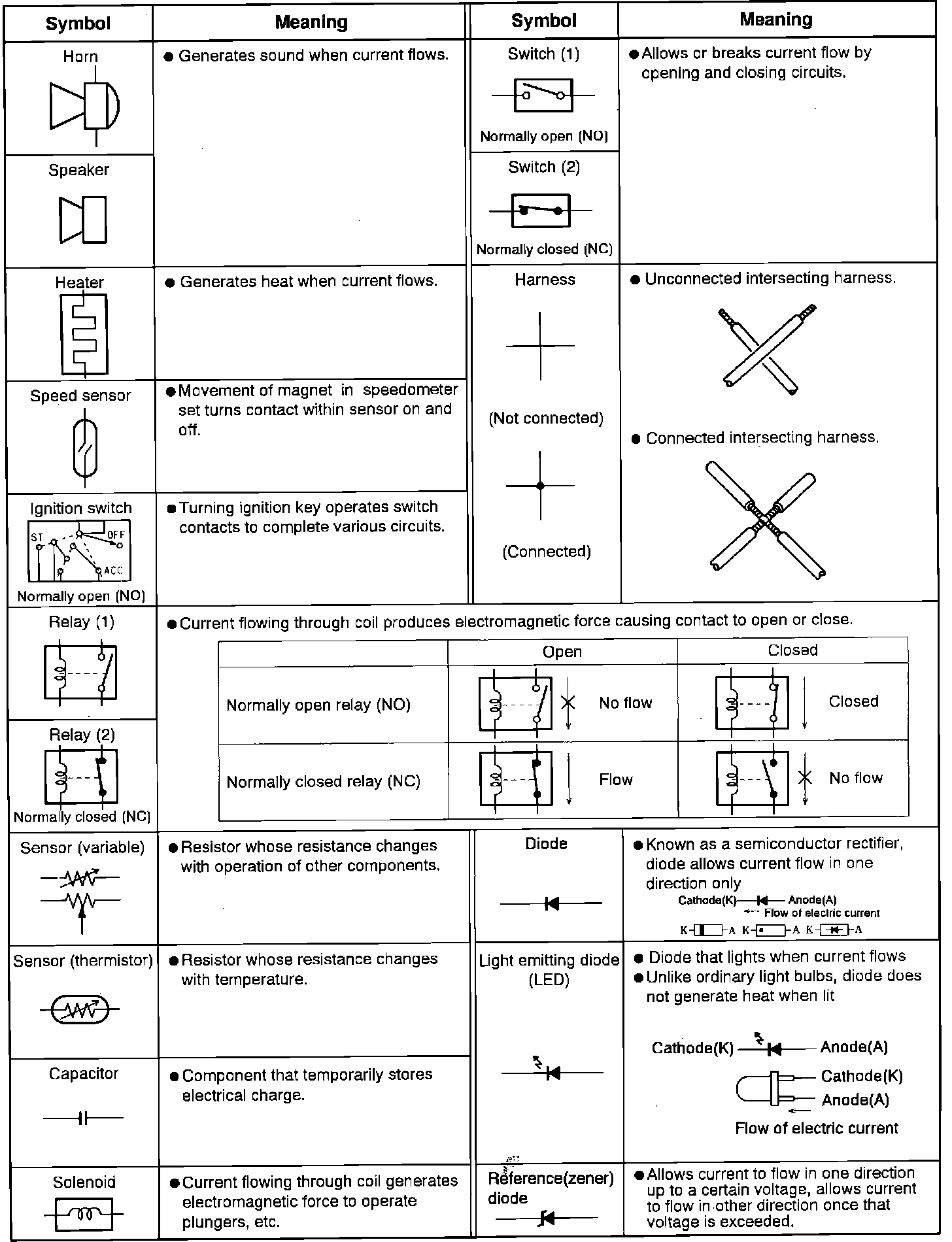

Symbol Identification:

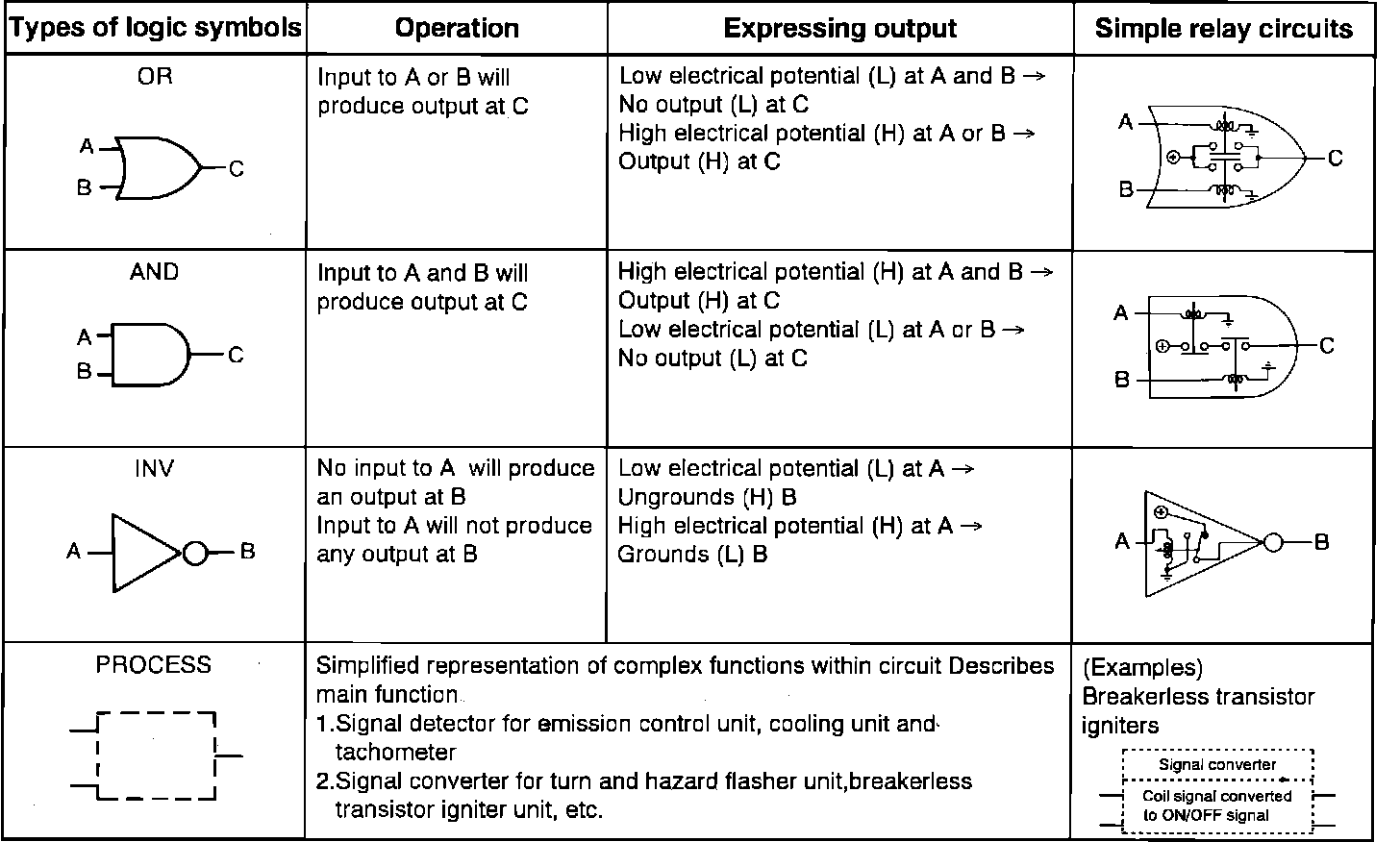

Reading Wiring Diagrams. Logic Symbols:
