Automatic Transmission

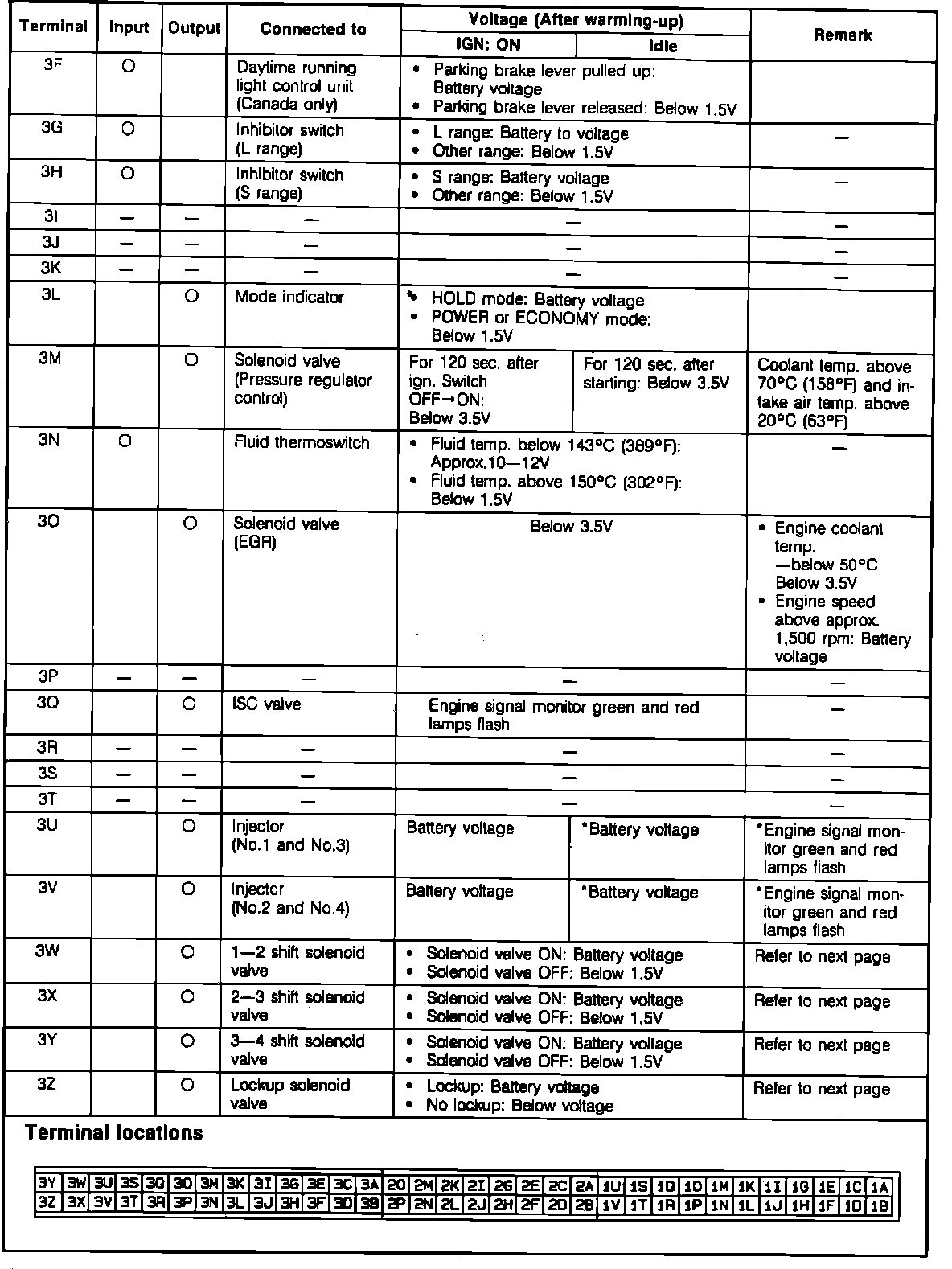

Engine Control System. ECU Pin Voltage Chart. EC-AT:

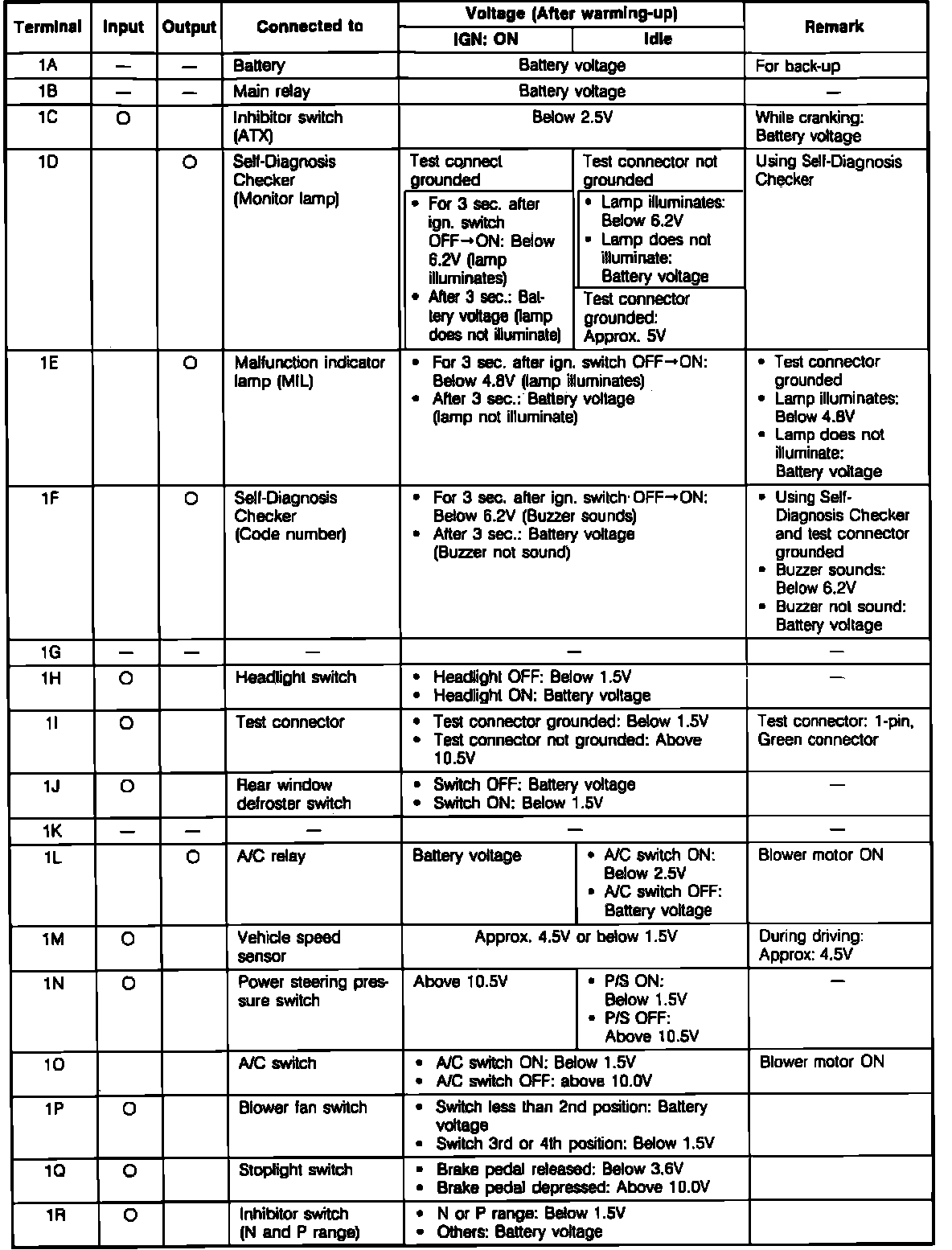

Engine Control System. ECU Pin Voltage Chart. EC-AT:

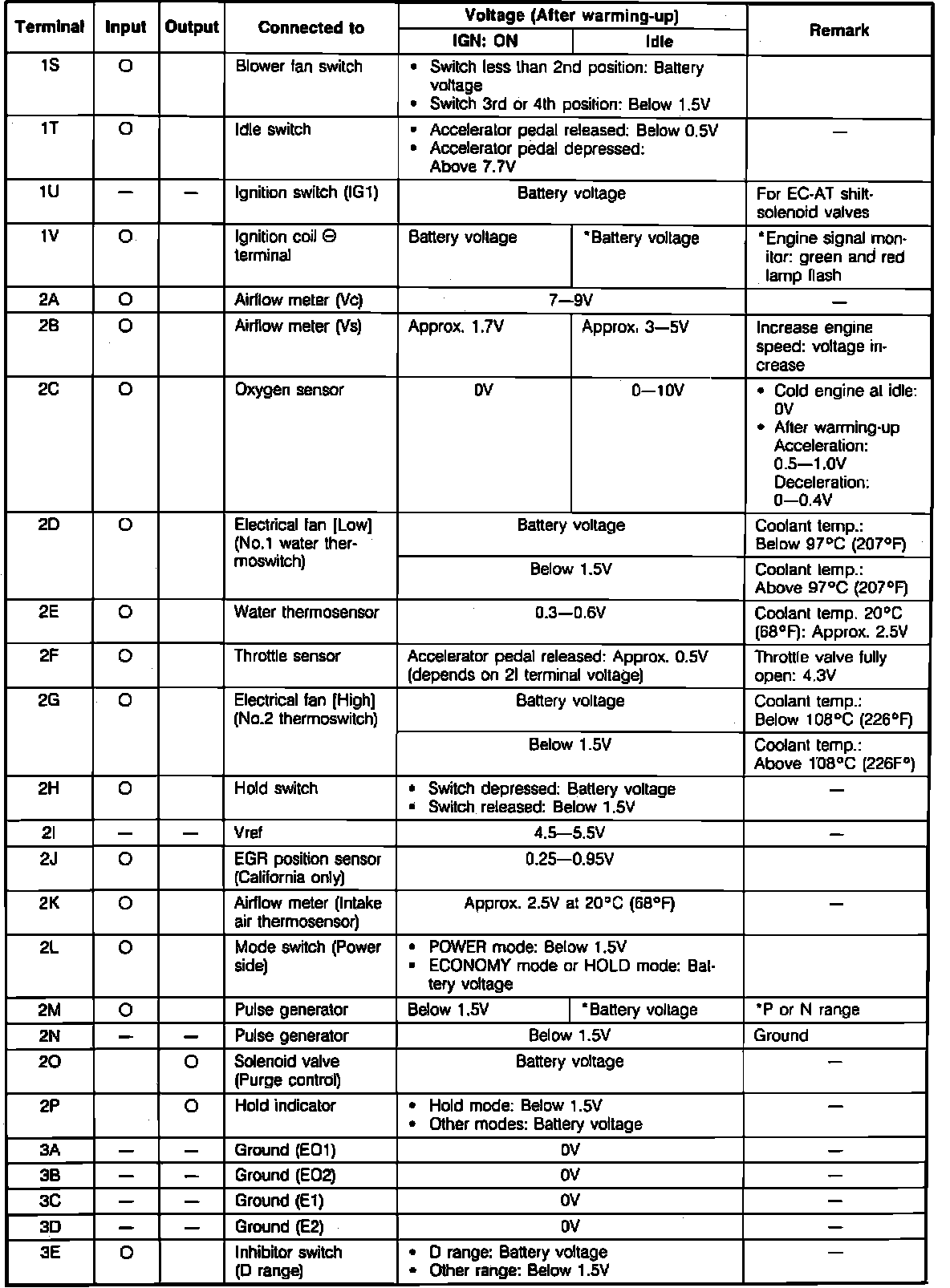

Engine Control System. ECU Pin Voltage Chart. EC-AT:
