Engine Control Module

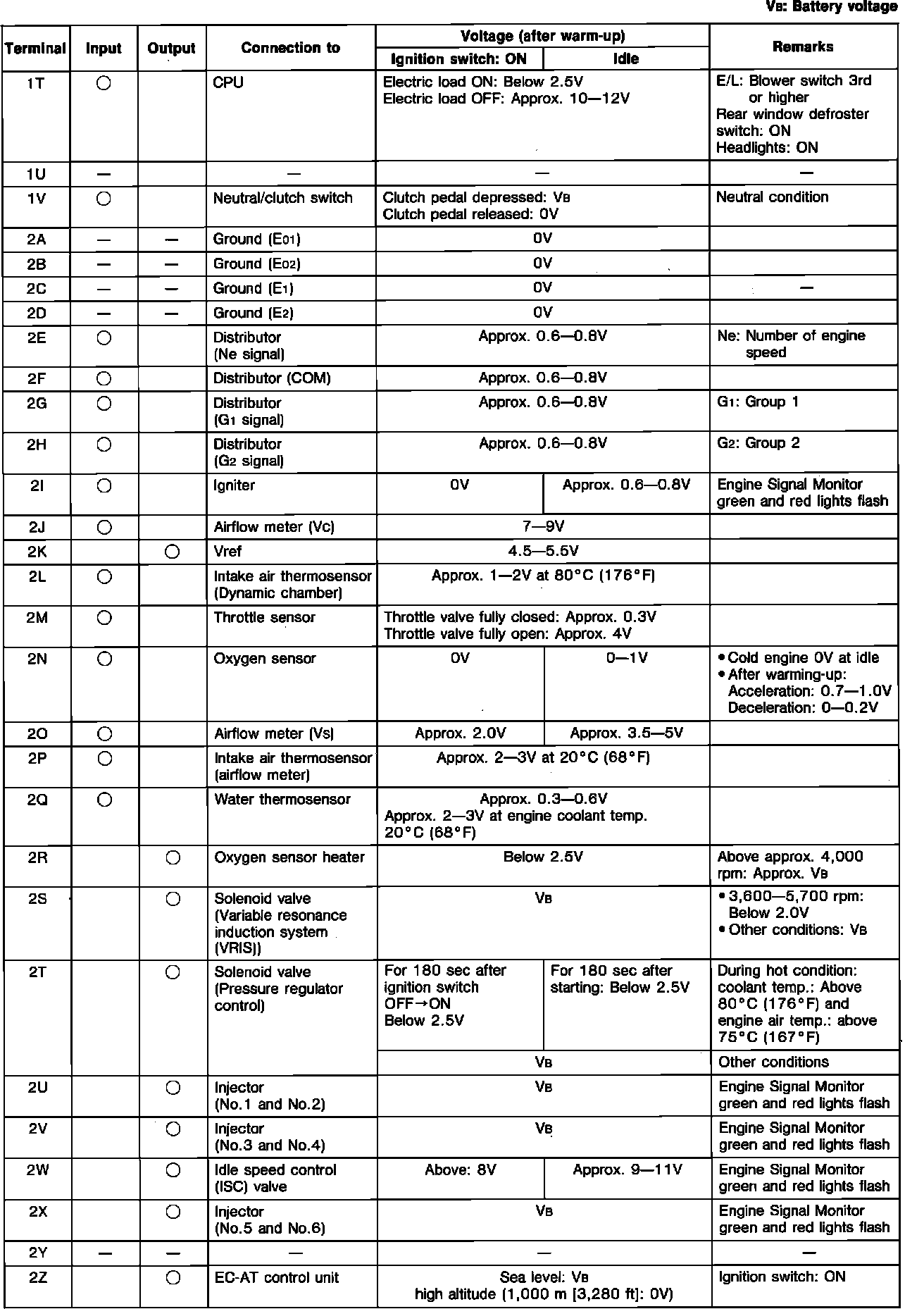

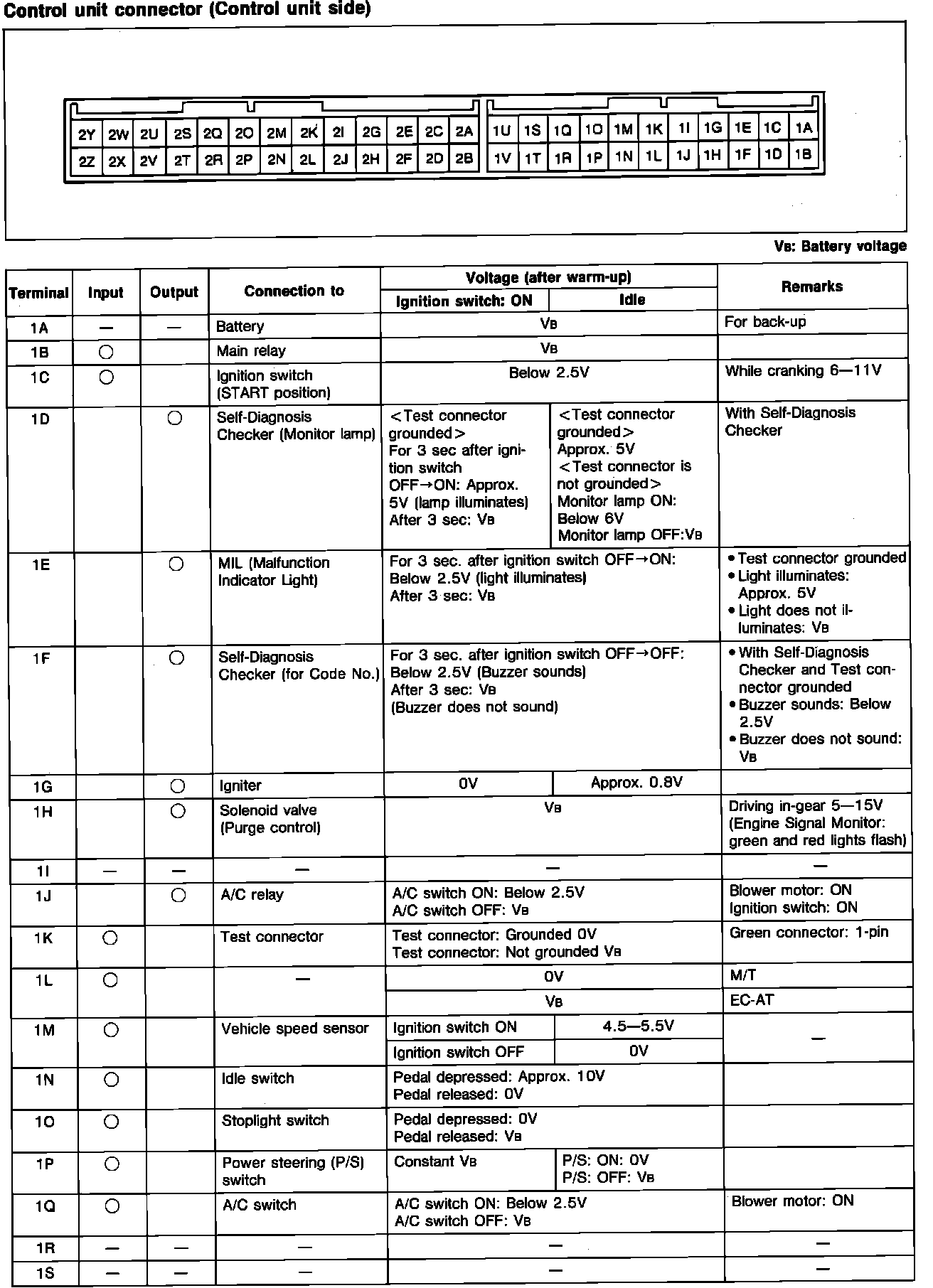

Engine Control System. ECU Pin Voltage Chart:
Engine Control System. ECU Pin Voltage Chart:
