Code 10: Intake Air THERMOSENSOR

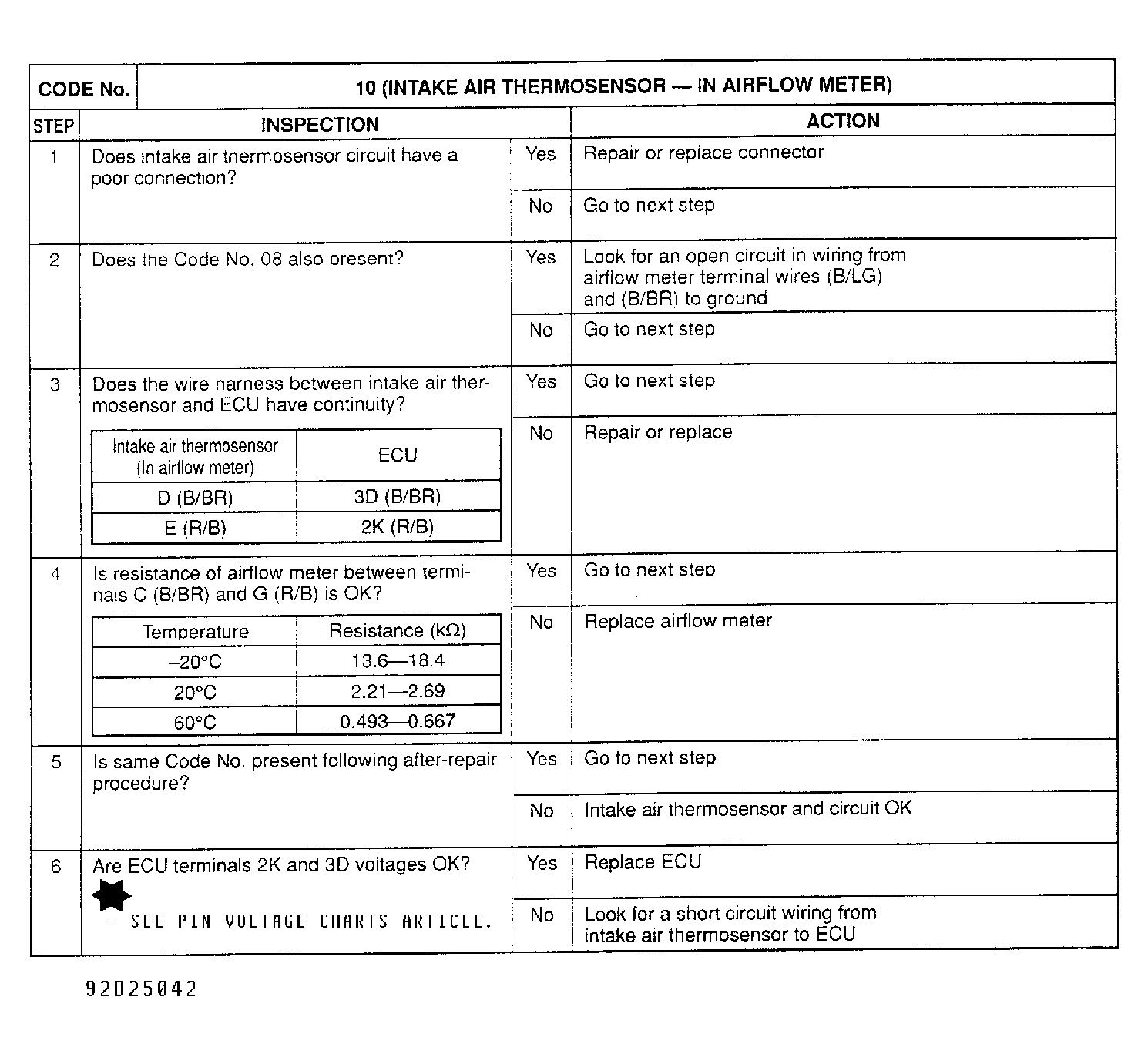

Fig 1: Trouble Code No. 10 Intake Air Thermosensor
G92D25042Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Intake Air Thermosensor
G92E25043Courtesy of MAZDA MOTORS CORP.
