Continuity Test

Remove one-touch control module from vehicle. Using a DVOM, check continuity between terminal Nos. 1 and 2. Continuity should exist. Now check continuity between terminal Nos. 1 and 3. Continuity should NOT exist. Replace module if it does not test as specified.

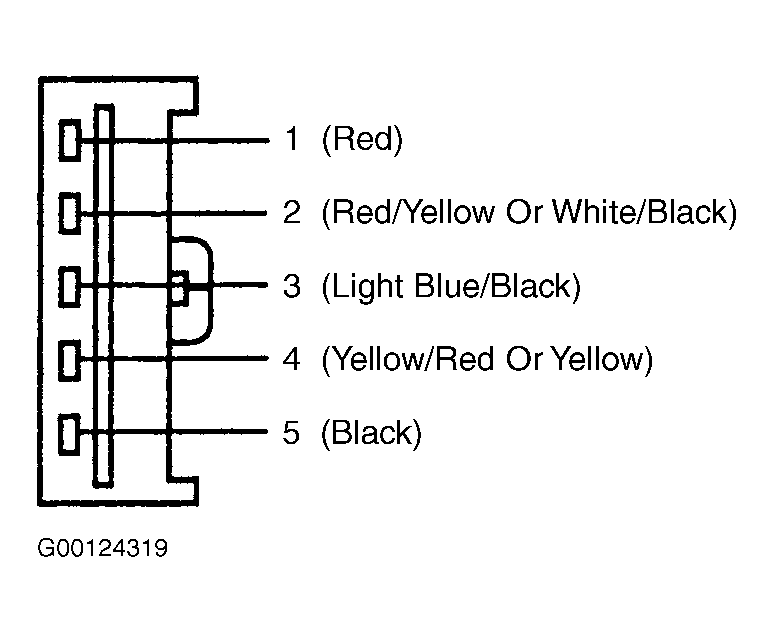

Fig 1: Testing One-Touch Control Module

Courtesy of MAZDA MOTORS CORP.
