323 L4-1600 1597cc
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Manual Transmission
>>
Part 1 of 4
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Part 1 of 4

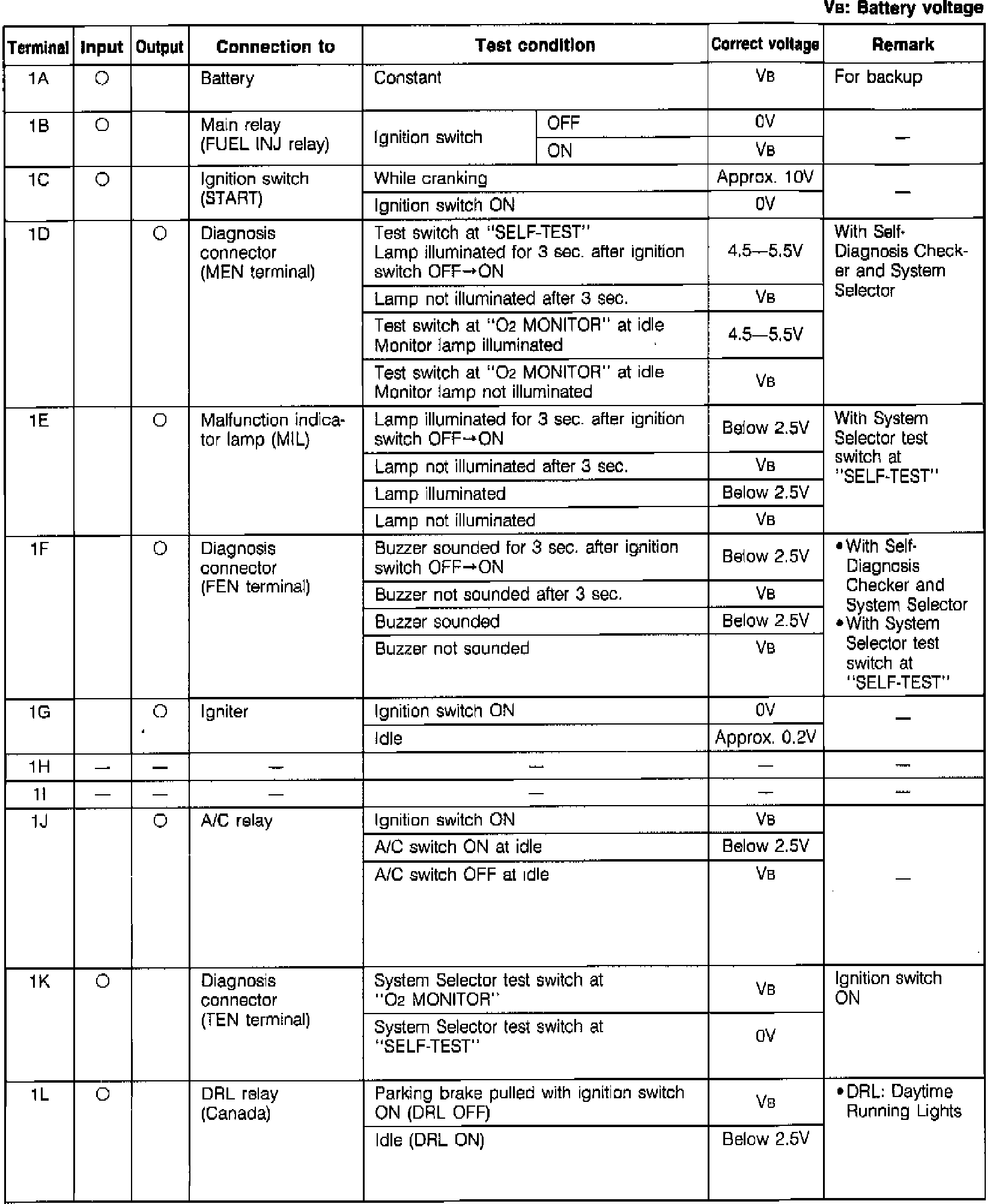

Terminal Voltage Chart:
