Engine Control Module: Service and Repair

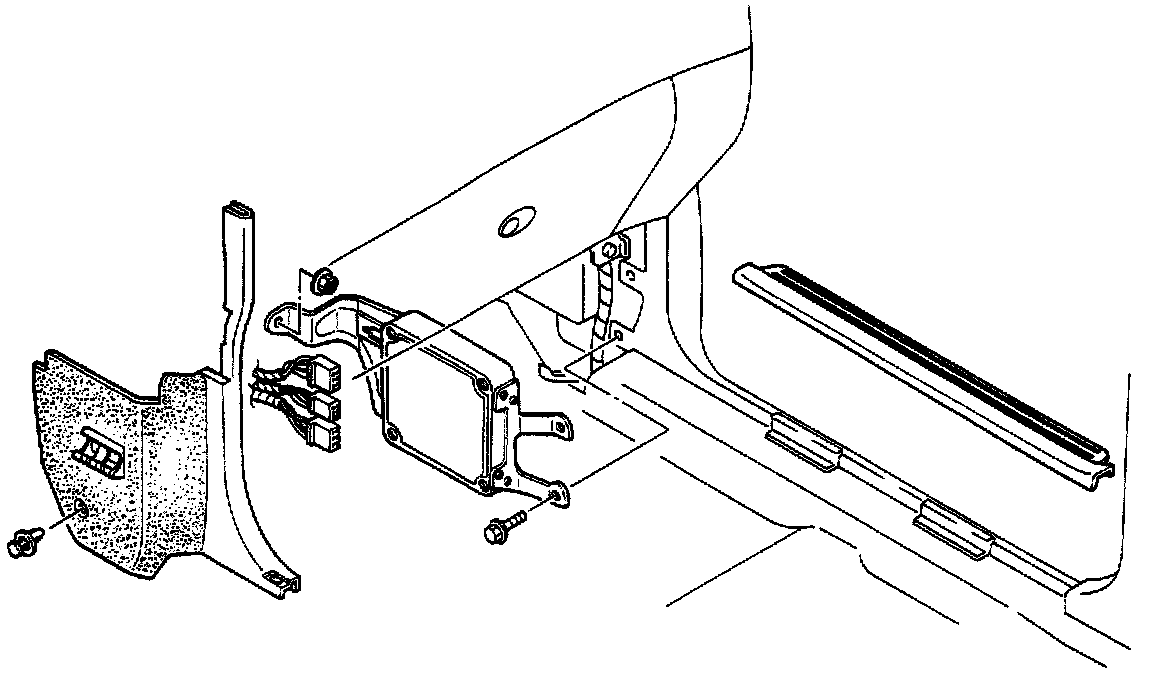

PCME R&R:

1. Disconnect battery negative cable.
2. Remove passenger side scuff plate and front side trim.
3. Remove PCME bolts and nut; unplug connectors.
4. Install new unit in reverse order.
