Control Switch Test

Disconnect control switch connector. With control switch in specified position, check continuity between specified terminals of control switch connector. See Fig 1 . If continuity between control switch connector terminals is not as specified, replace control switch.

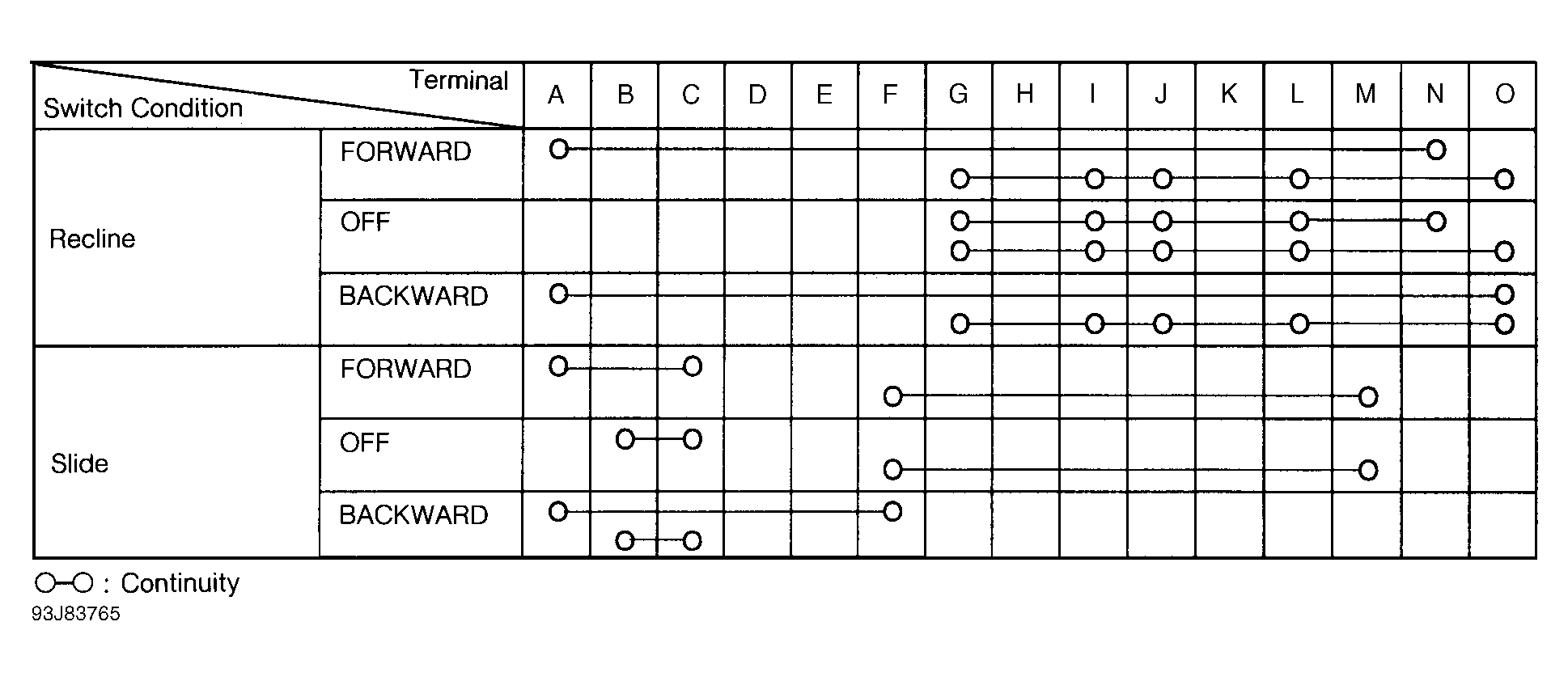

Fig 1: Control Switch Continuity Test Table (Driver Seat)

Courtesy of MAZDA MOTORS CORP.

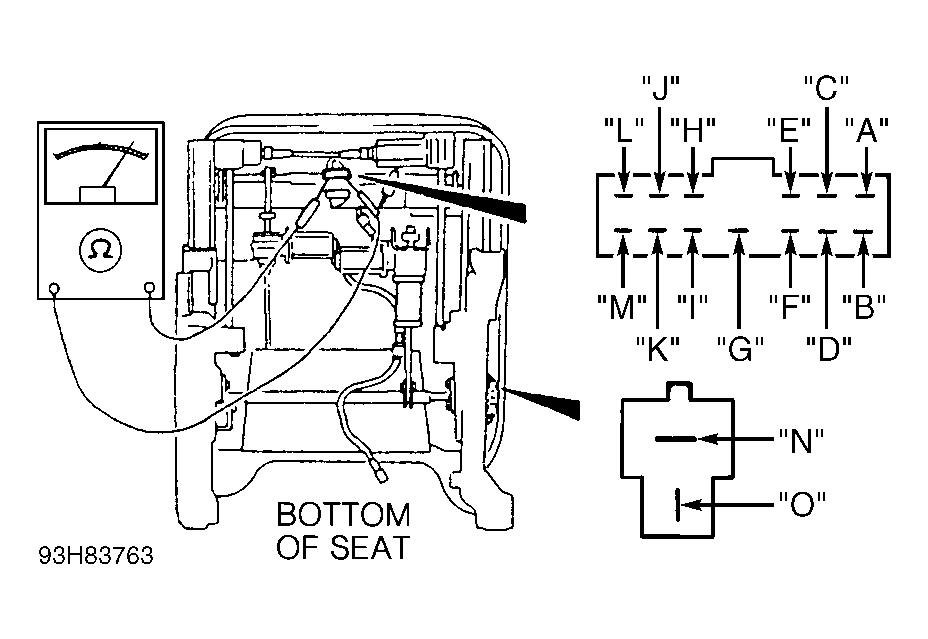

Fig 2: Control Switch Connector Terminal ID

Courtesy of MAZDA MOTORS CORP.

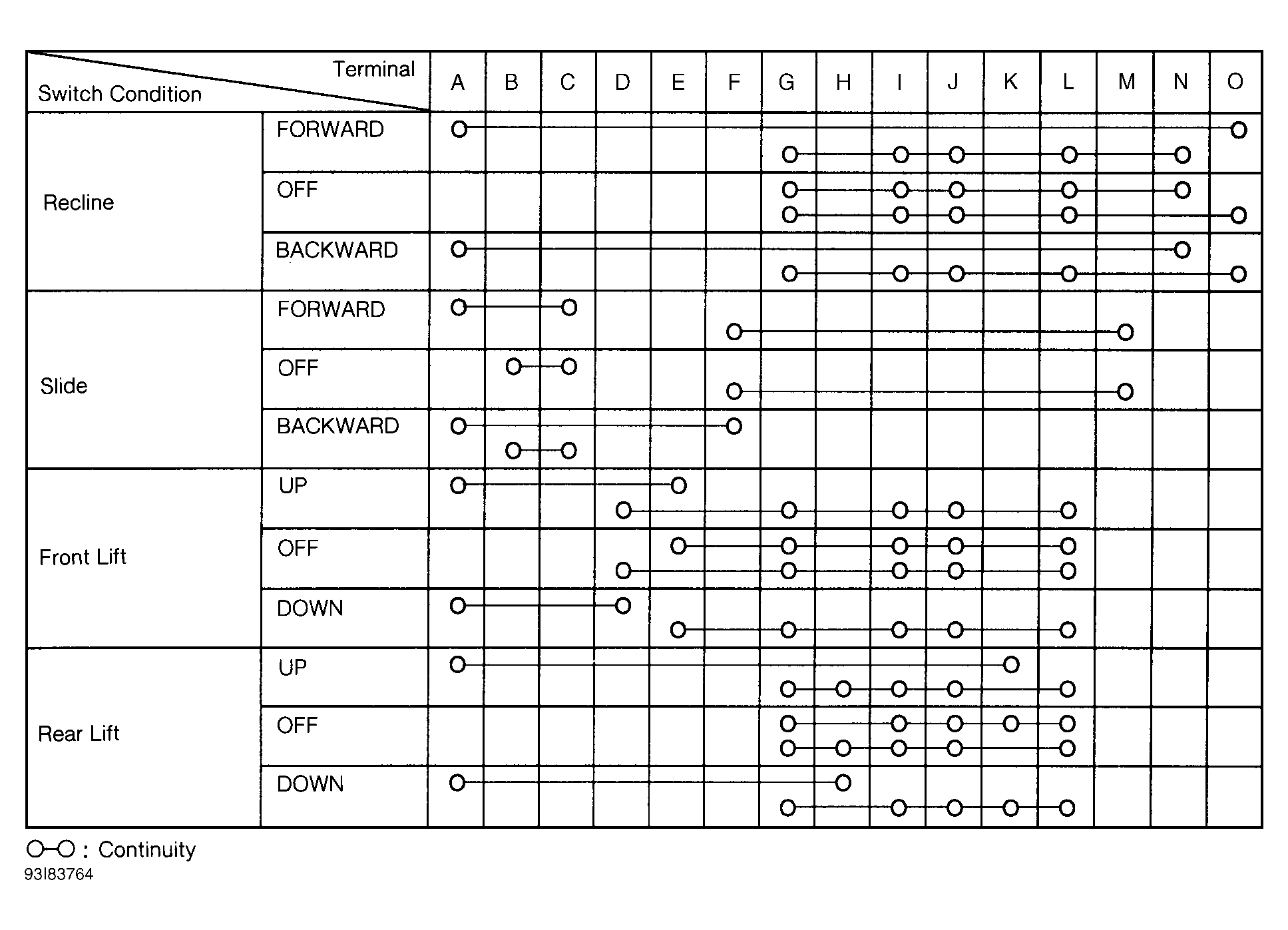

Fig 3: Control Switch Continuity Test Table (Passenger Seat)

Courtesy of MAZDA MOTORS CORP.
