Code 9: (Coolant THERMOSENSOR)

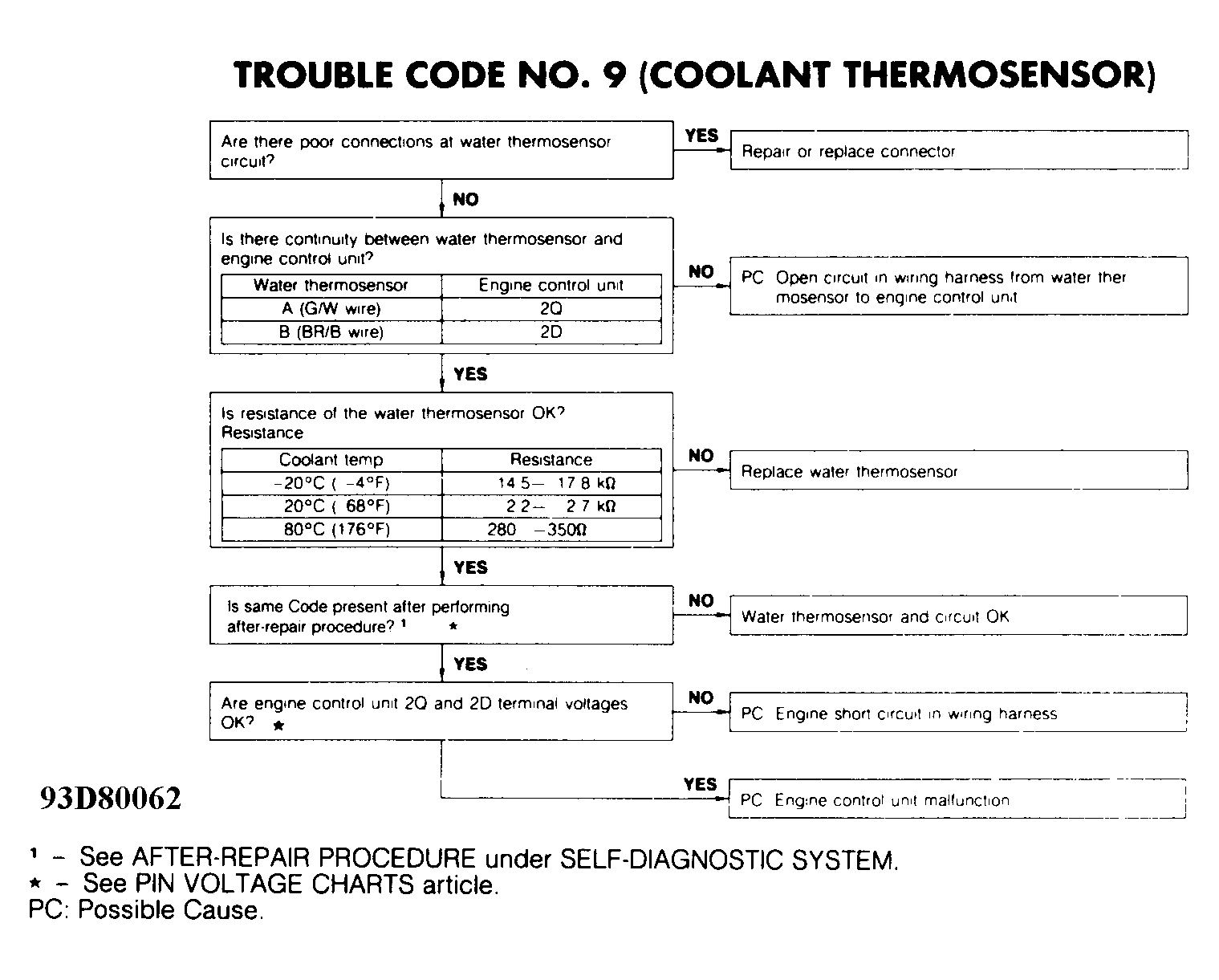

Fig 1: Trouble Code No. 9 (Coolant Thermosensor)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
