MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Part 2 of 3
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Part 2 of 3

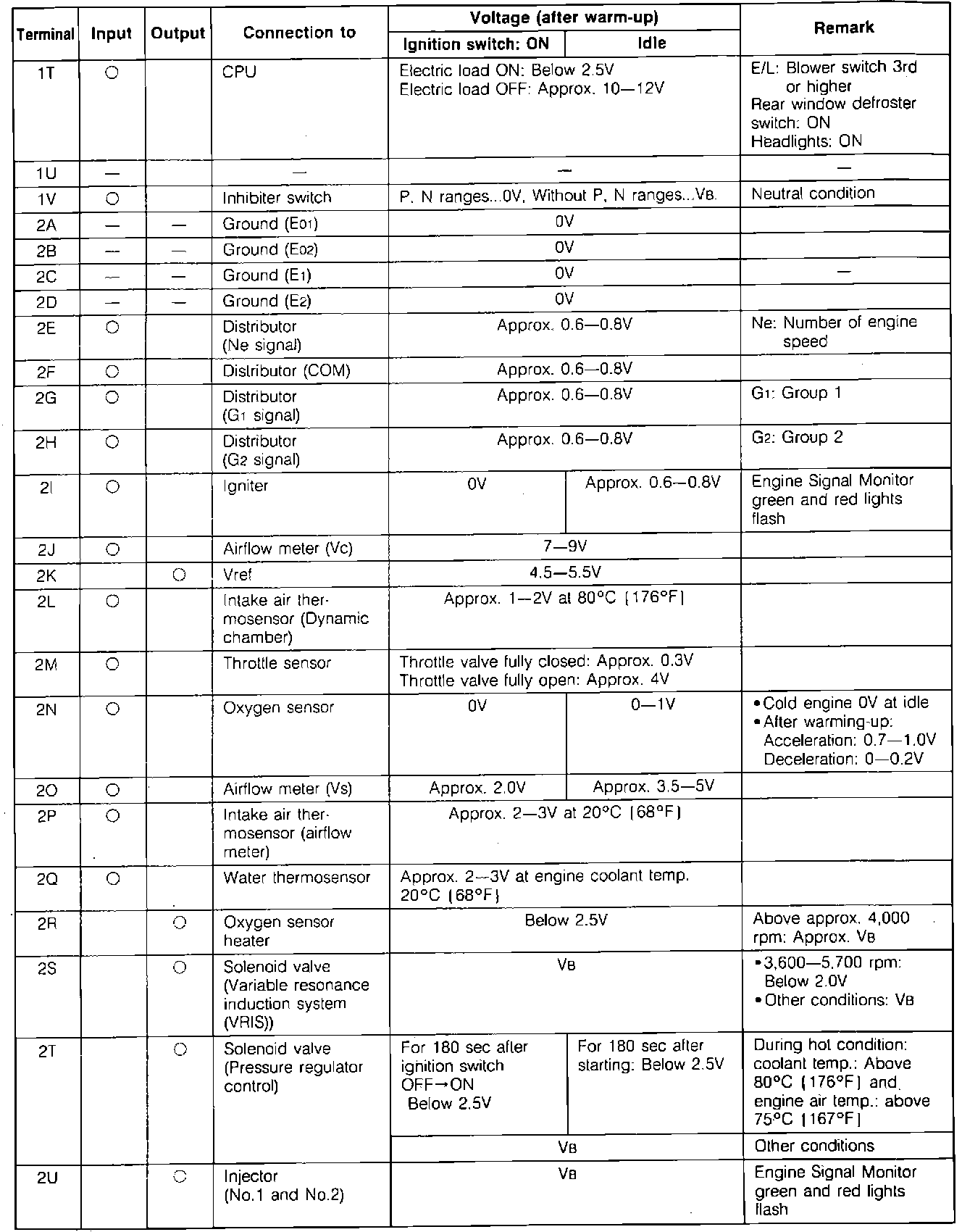

ECU Pin Voltage Chart:
