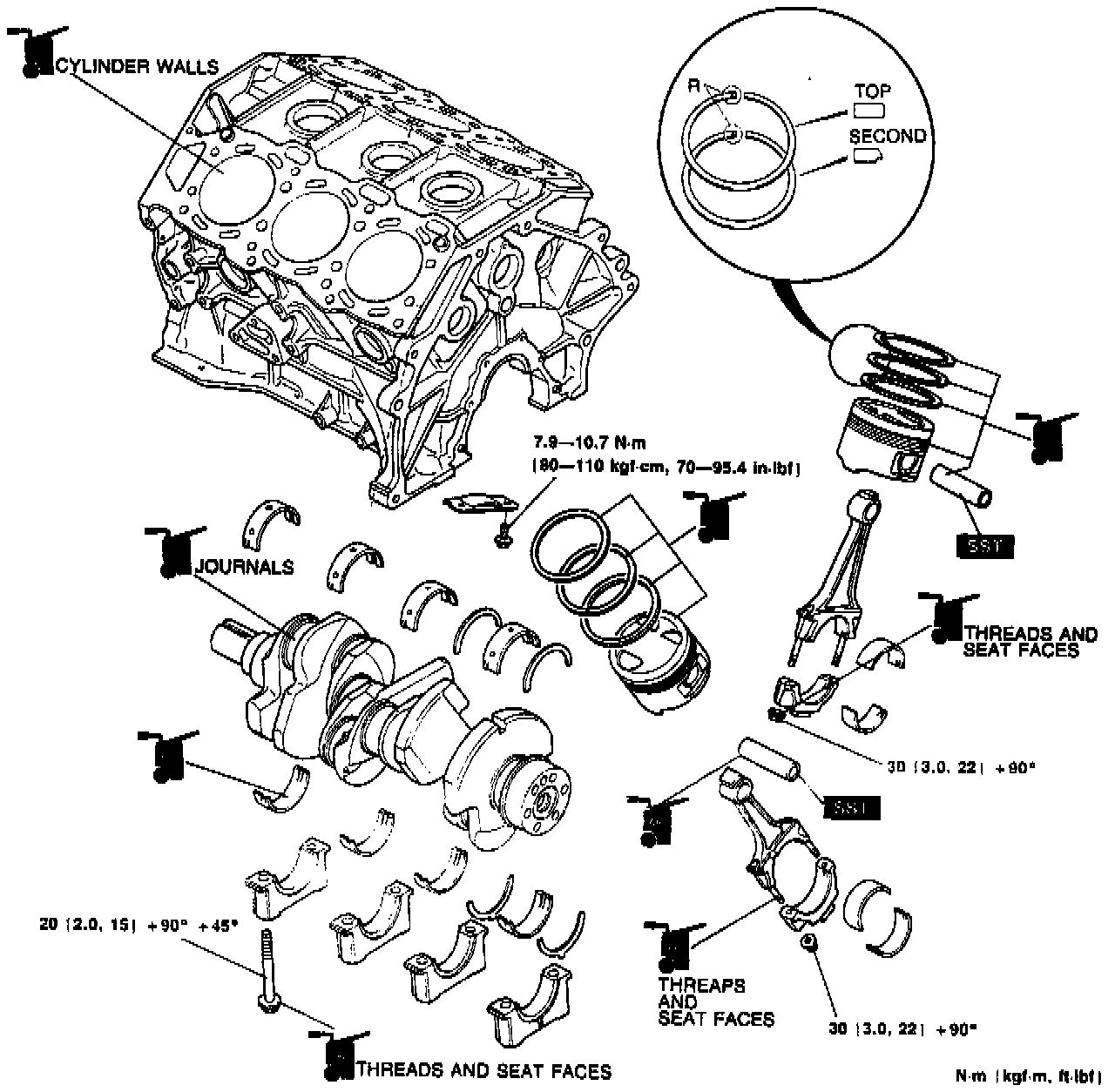

Torque Specifications

Timing Components:






Internal Parts:






Main Bolt Torque/Sequence:






External Parts:
