Torque Specifications

Intake:

Intake Manifold:

Exhaust Manifold:

Extension Manifold:

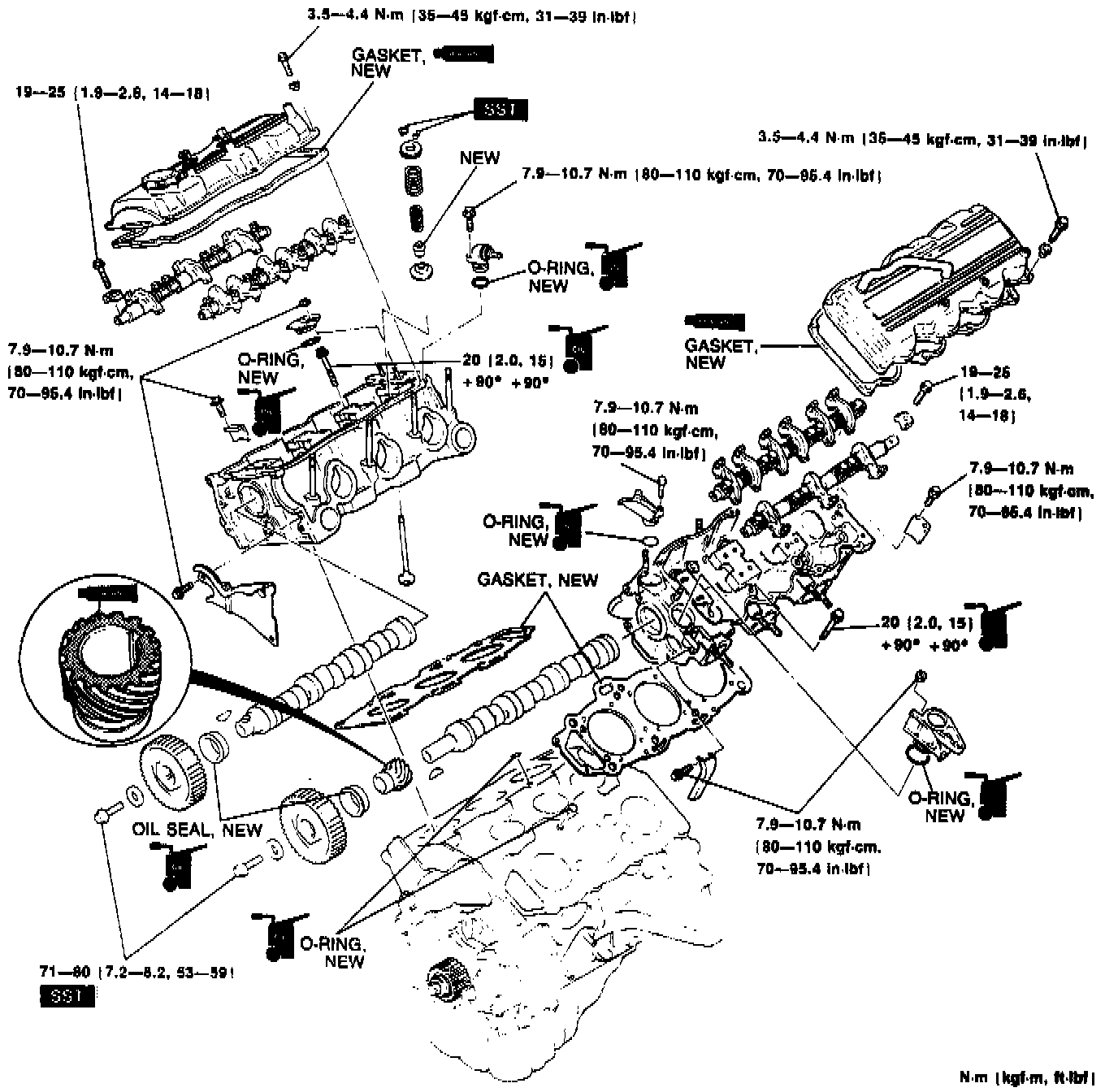

Torque Specs Exploded View:

Before installation, measure each bolt length. Replace if necessary.

Length IN: 108mm (4.25 in)
EX: 138mm (5.43 in)
Maximum IN: 109mm (4.29 in)
EX: 139mm (5.47 in)

Apply engine oil to the threads and the seat face of each bolt.

Head Torque/Sequence:

Tighten the bolts in the order shown in the figure.
1. 20 Nm (15 ft-lb)
2. Tighten each bolt by turning another 90°
3. Further tighten each bolt by turning another 90°

Rocker Arm Assembly Torque/Sequence:

Timing Components:

Internal Parts:

Main Bolt Torque/Sequence:

External Parts:
