Control Module: Testing and Inspection

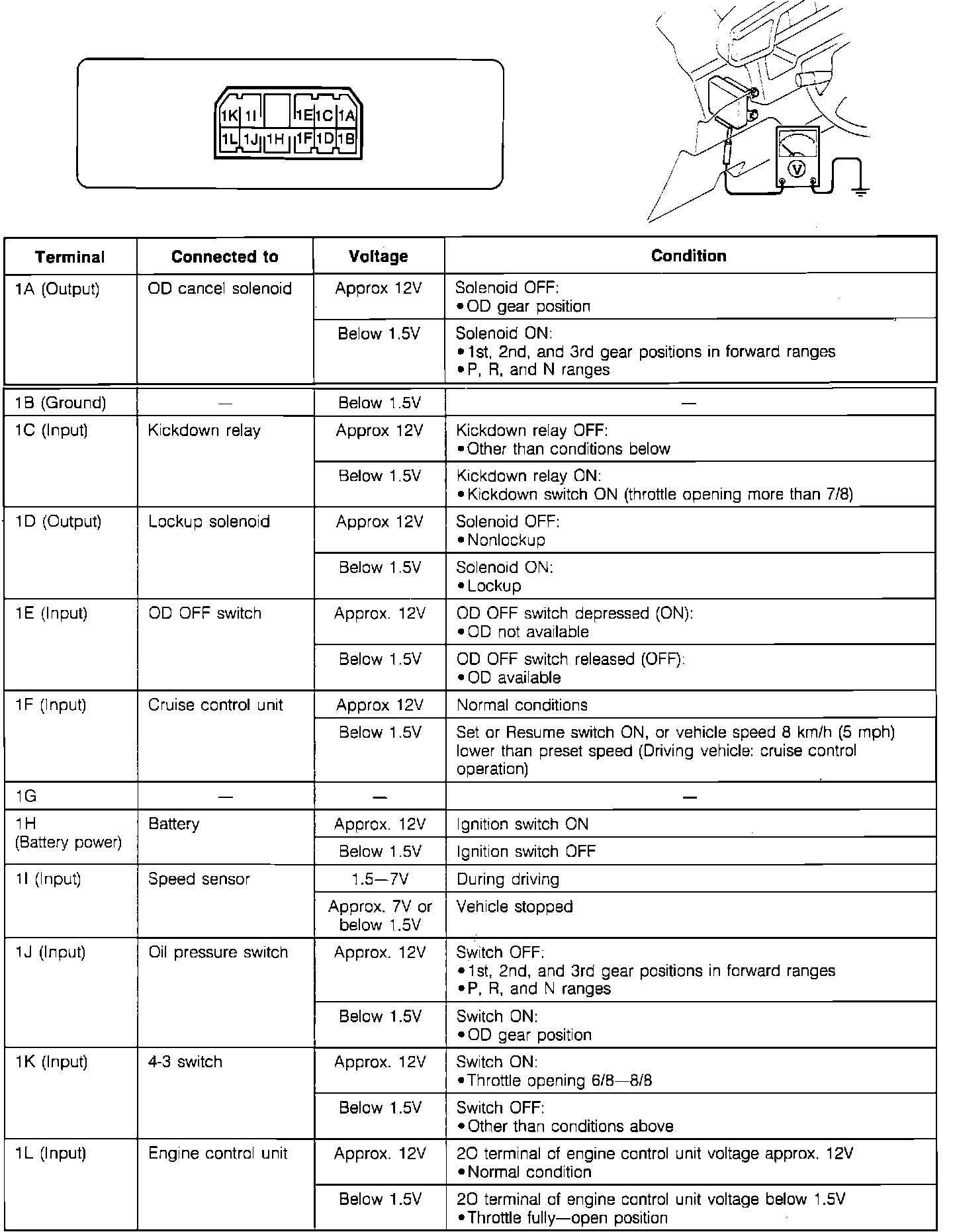

Terminal Voltage Chart:

1. Turn ignition switch "ON." Check 4/AT control unit terminal voltages, referring to Terminal Voltage Chart.
2. If not correct, repair or replace defective component(s), wiring and/or 4/AT control unit.
