PCV SYS. Modification At Partial Engine Replacement (CAT. B, NO. 004/97)

Publication date: 1997-05-19
Reference number: CAT. B, NO. 004/97
Supersedes refnos: B004/97

PCV SYS. MODIFICATION AT PARTIAL ENGINE REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): CAT. B, NO. 004/97, Date of Issue: May 19, 1997

PARTIAL ENGINE REPLACEMENT (PCV SYSTEM MODIFICATION)

Model(s): 1993-96 626/MX-6 (GE); 1992-96 MX-3 (EC); 1995-96 Millenia (TA)

Category: B - Engine

Bulletin No.: 004/97

Date: May 19, 1997

VEHICLES AFFECTED

1993-96 626/MX-6 (GE) with KL engine.
1992-96 MX-3 (EC) with K8 engine.
1995-96 Millenia (TA) with KL engine.

DESCRIPTION

Due to the abolishment of the fresh air vent of positive crankcase ventilation (PCV) system, see Fig 1 , on the left bank cylinder head cover, the following additional work is required for the PCV system when the partial engine (Part No.****-02-300*) is replaced with a new one.

SERVICE INFORMATION

ALL EXCEPT MILLENIA

Discard the ventilation pipe and hose which are connected to the left bank cylinder head cover, and put the rubber cap on the end of ventilation pipe. See Fig 2 and Fig 3 .

MILLENIA ONLY

Discard the ventilation pipe and hose which are connected to the left bank cylinder head cover and connect the ventilation hose of Part No. KLK1 18 741A. See Fig 4 .

NOTE: If the rubber Clip is used instead of ventilation hose, engine oil may leak.

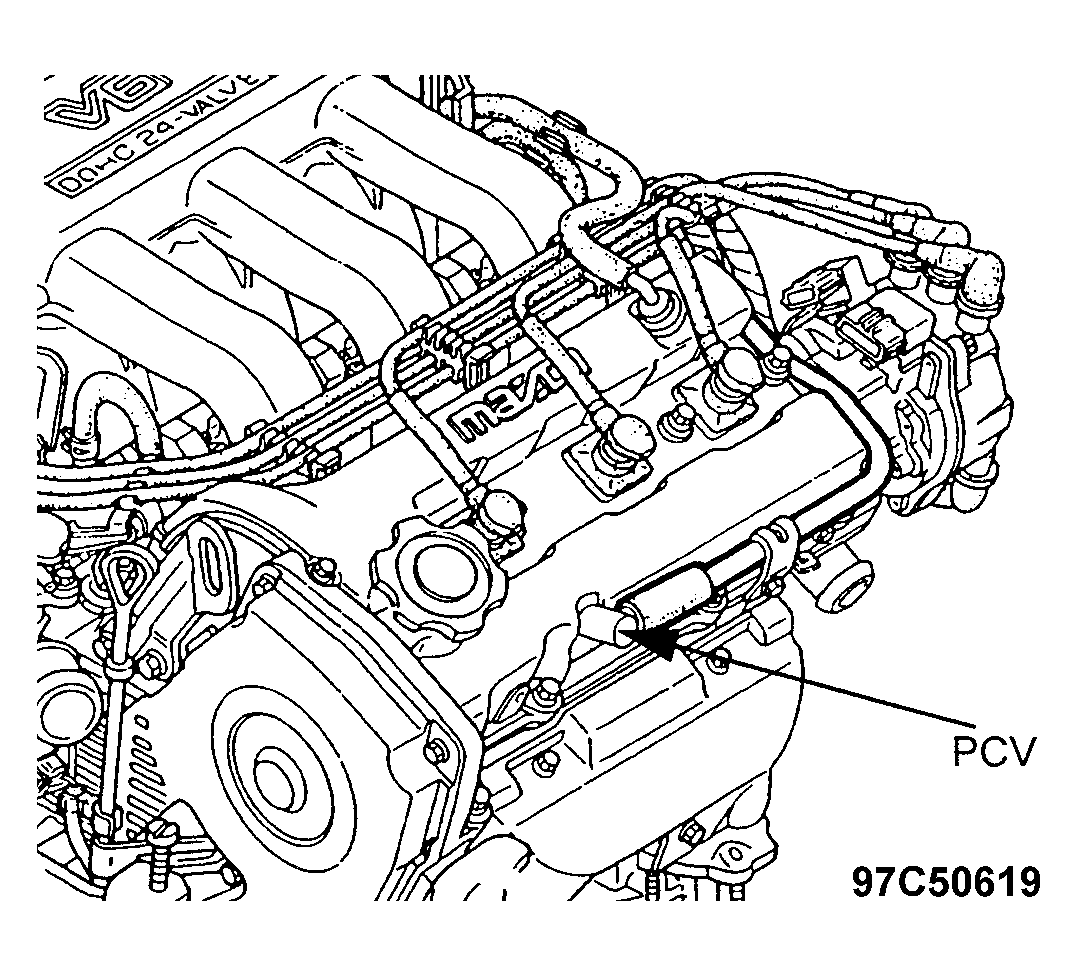

Fig 1: PCV - Location

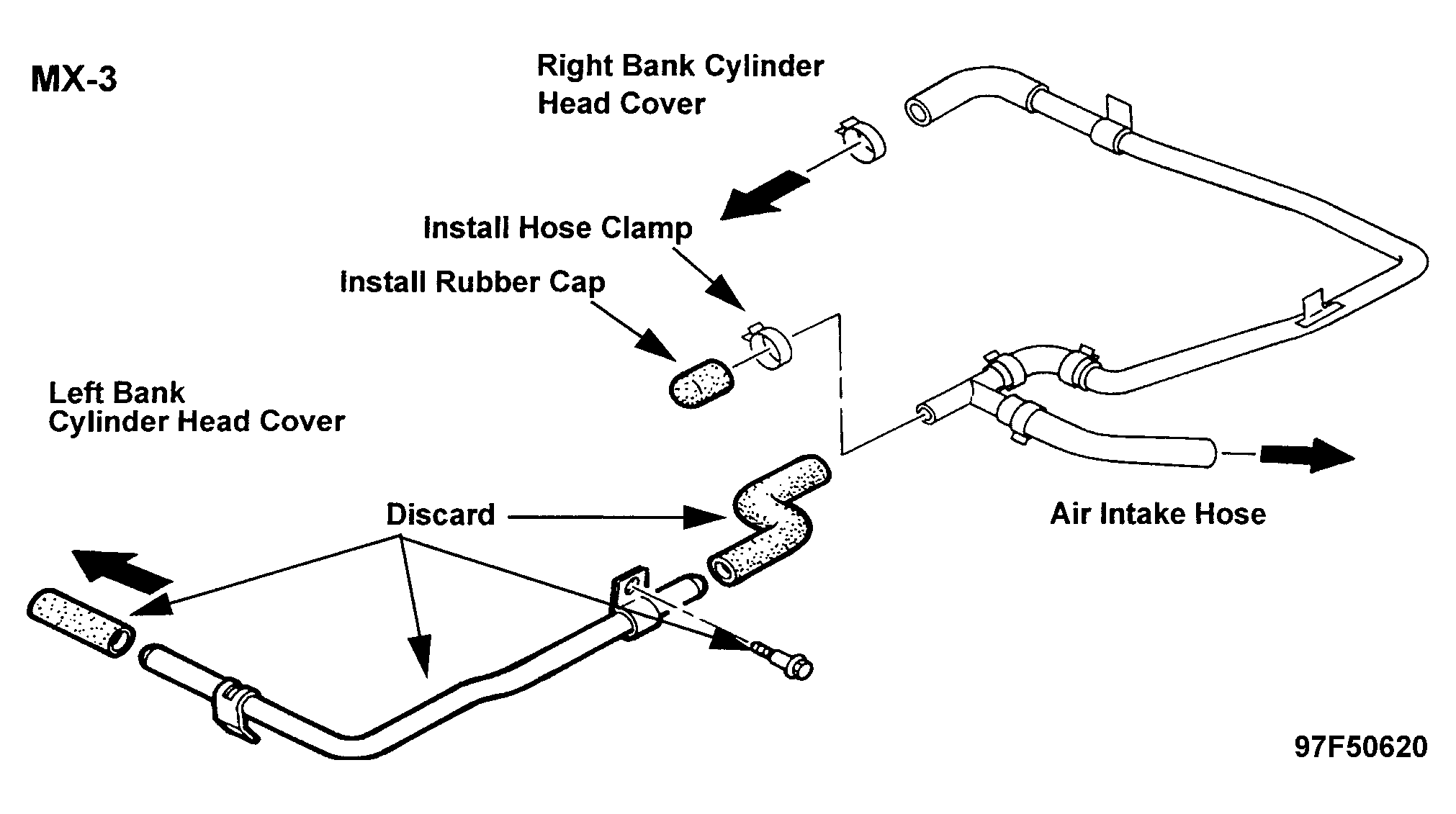

Fig 2: MX-3, Right Bank Cylinder Head Cover - Identification

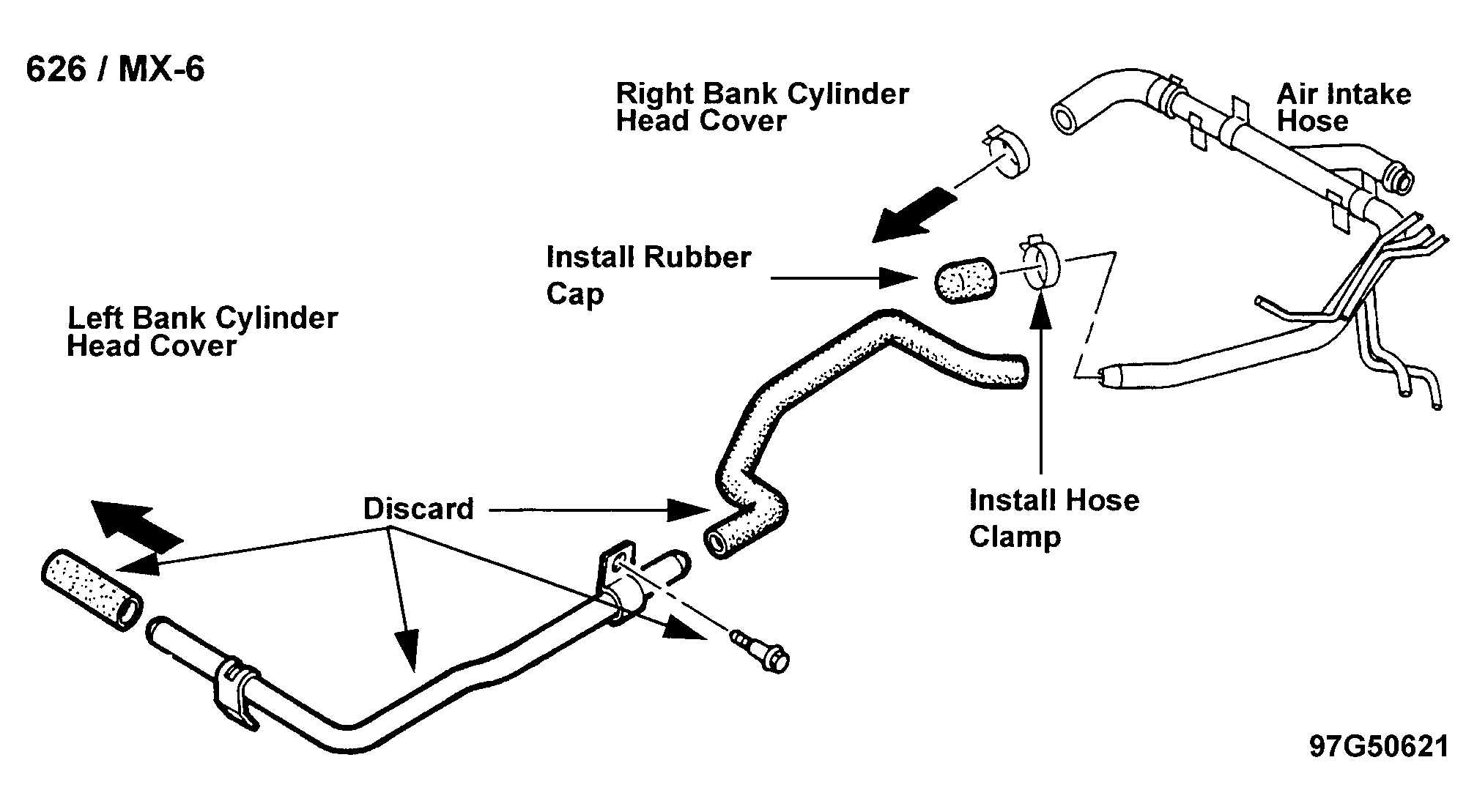

Fig 3: 626/MX-6, Right Bank Cylinder Head Cover - Identification

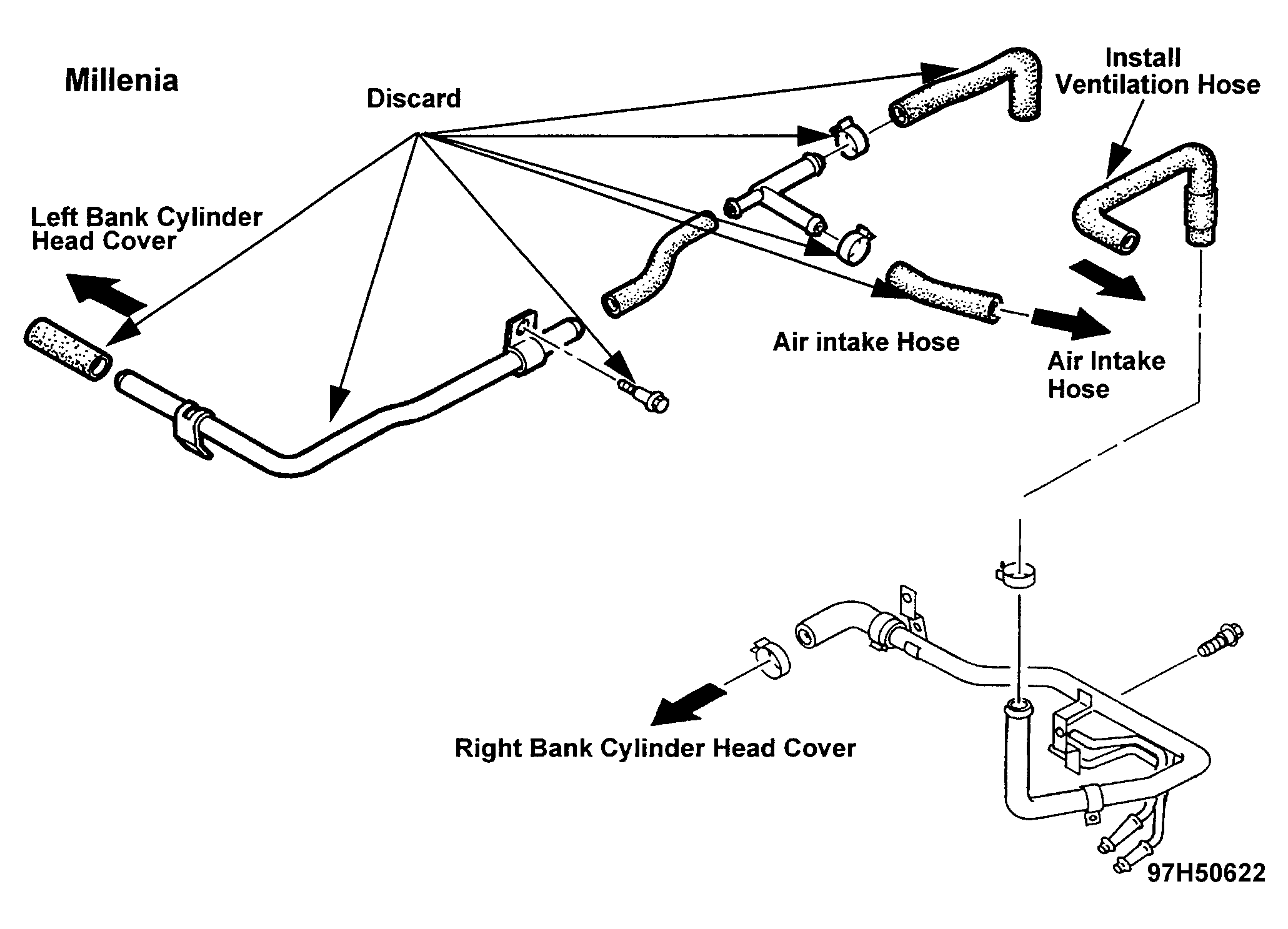

Fig 4: Millenia, Right Bank Cylinder Head Cover - Identification

PARTS INFORMATION

Part Number	Description	Qty.	Applicable Model
0370-13-321	Rubber Cap	1	Except Millenia
9928-31-900	Hose Clamp	1	Except Millenia
KLK1-13-741A	Ventilation Hose	1	Millenia
