Code 25: (Pressure Regulator Solenoid Valve)

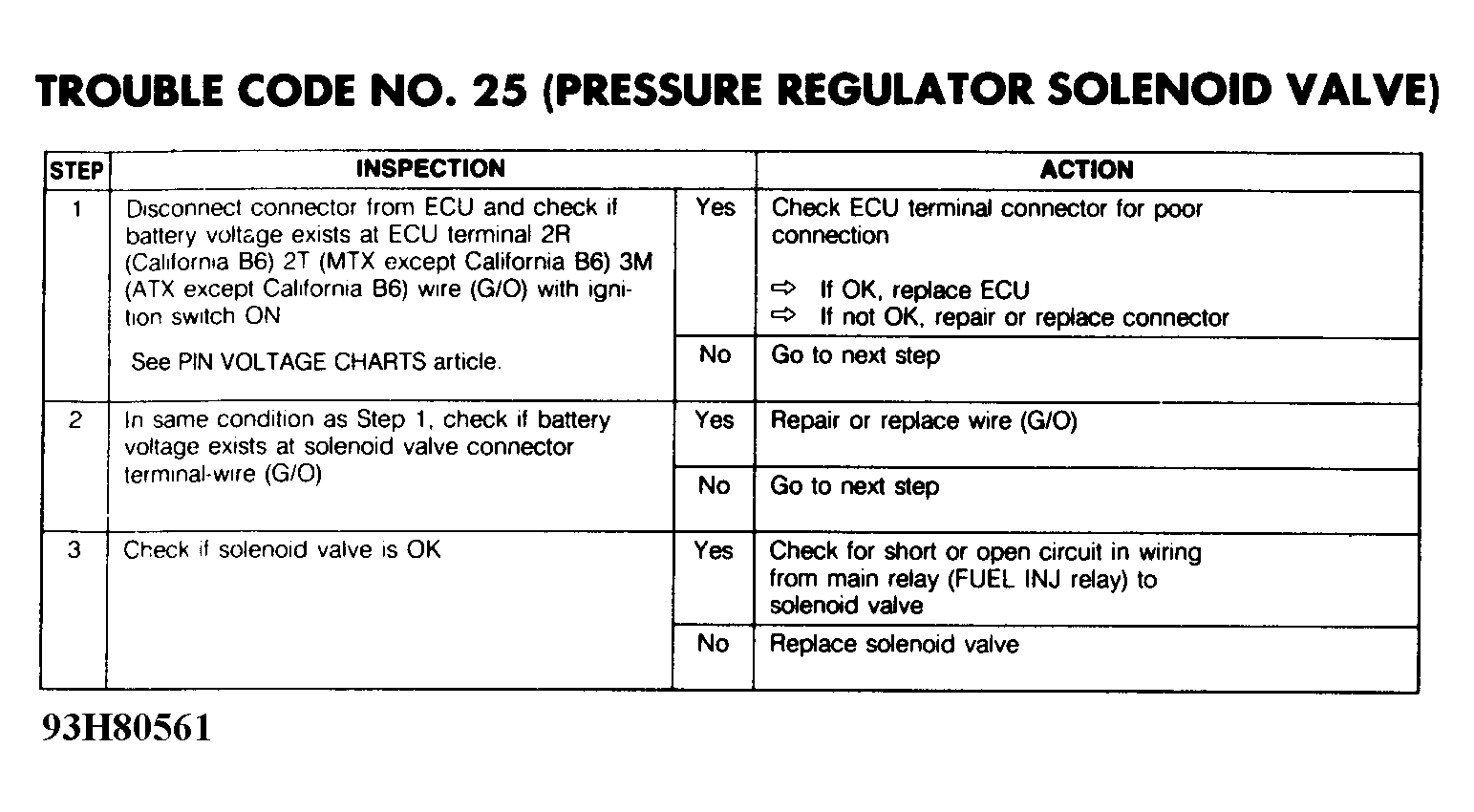

Fig 1: Trouble Code No. 25 (Diagnostic Flowchart)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
