Code 41: (Variable Inertia Charging System - DOHC)

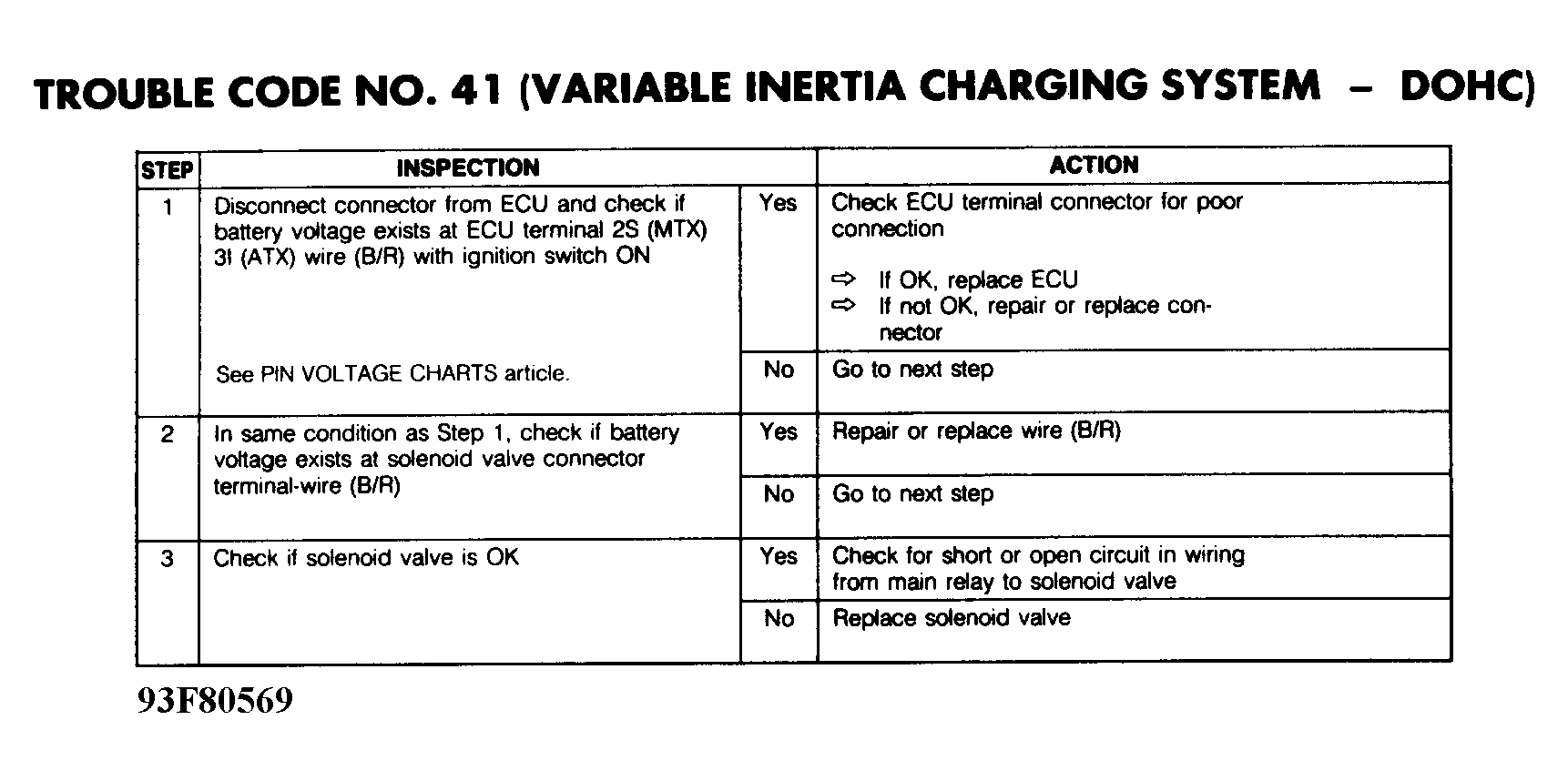

Fig 1: Trouble Code No. 41 (Diagnostic Flowchart)
G93F80569Courtesy of MAZDA MOTORS CORP.
