Engine Controls - Tests W/Codes - 6-CYL
>>
Trouble Code Identification
>>
Codes 17 & 24: (Feedback System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Codes 17 & 24: (Feedback System)

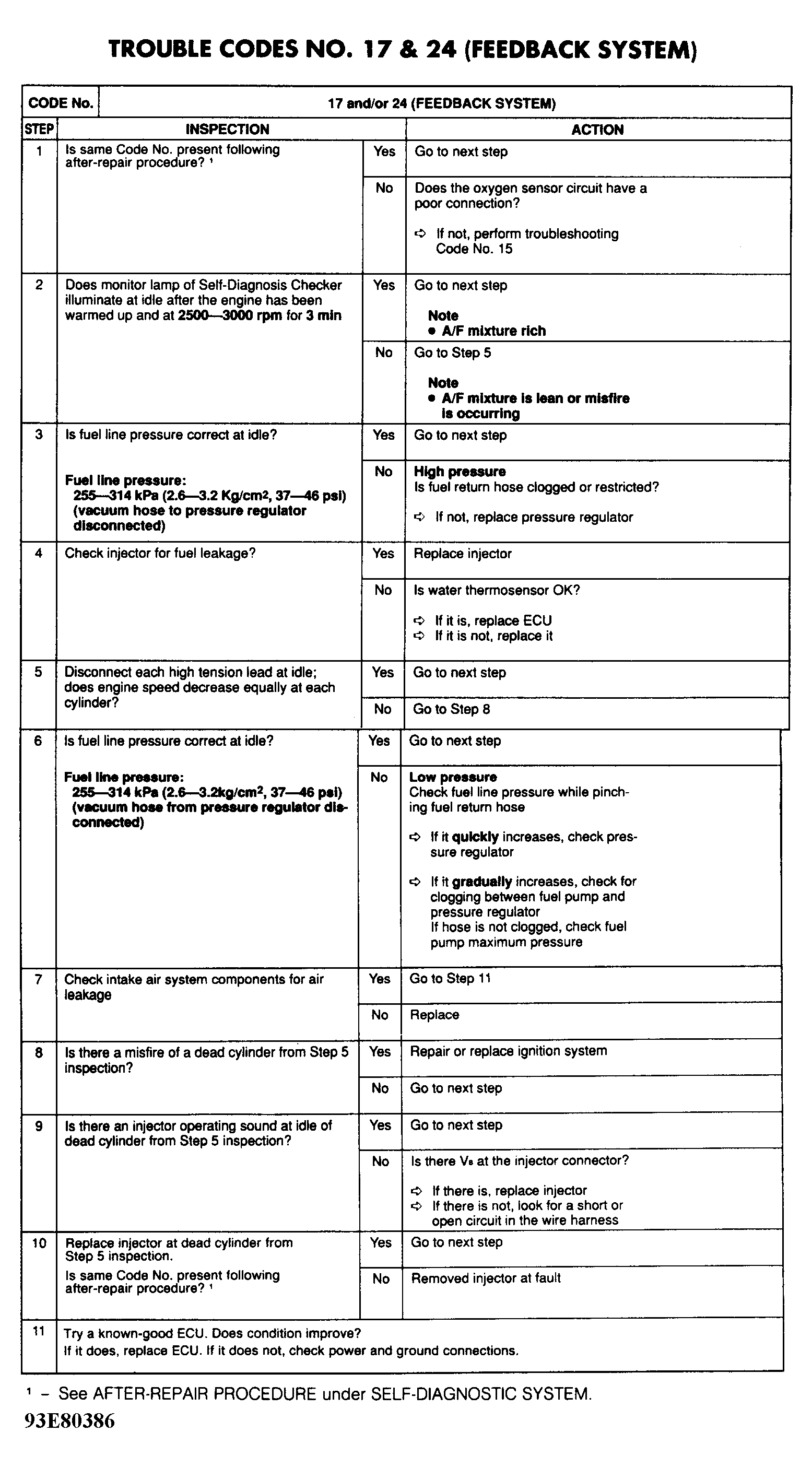

Fig 1: Trouble Codes No. 17 & 24 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
