Sub-Switch Test

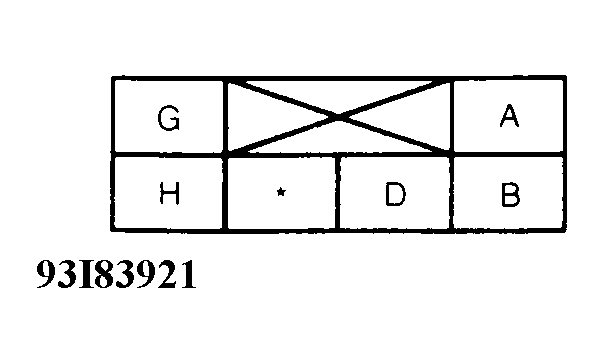

Check continuity across specified terminals of sub-switch connector with switch button held in specified position. See SUB-SWITCH CONTINUITY TEST table. See Fig 1 . Replace sub-switch if continuity is not as specified.
SUB-SWITCH CONTINUITY TEST
| Application & Switch Position | Terminals |
|---|---|
| UP | A & H; B & D |
| Off (Neutral) | B & D; G & H |
| DOWN | A & B; G & H |
