Component Testing: Notes

COOLING FAN MOTOR CURRENT SPECIFICATIONS

Engine
 Amps
1-Speed 5.6-7.6
2-Speed
Low Speed 8.8-9.7
High Speed 13.3-14.6

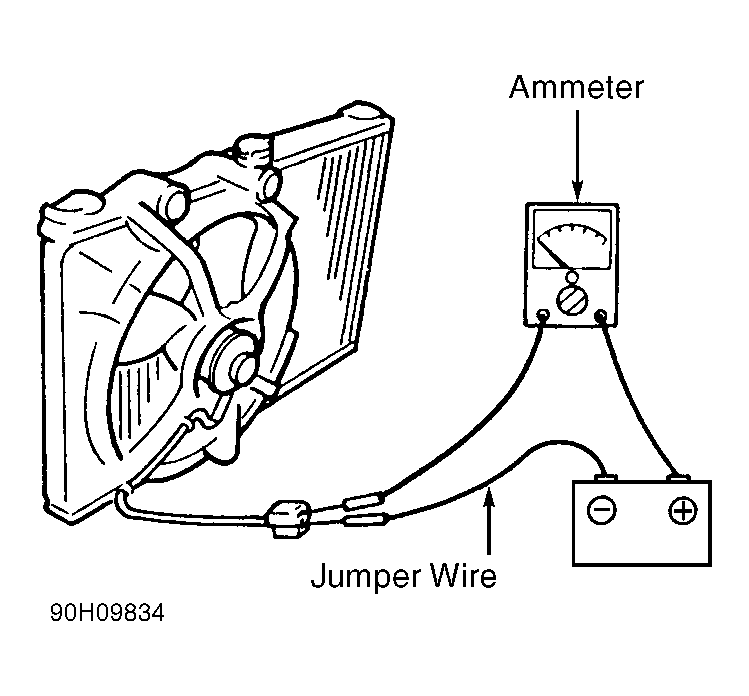

Fig 1: Testing Cooling Fan Motor
G90H09834Courtesy of MAZDA MOTORS CORP.
