Circuit Testing

If starter does not operate, check voltage at starter "S" terminal with ignition switch in START position (and clutch depressed on M/T). See Fig 1. If voltage is greater than 8 volts, repair or replace as required. If voltage is less than 8 volts, check ignition switch, inhibitor switch (A/T), interlock switch (M/T) and wiring.

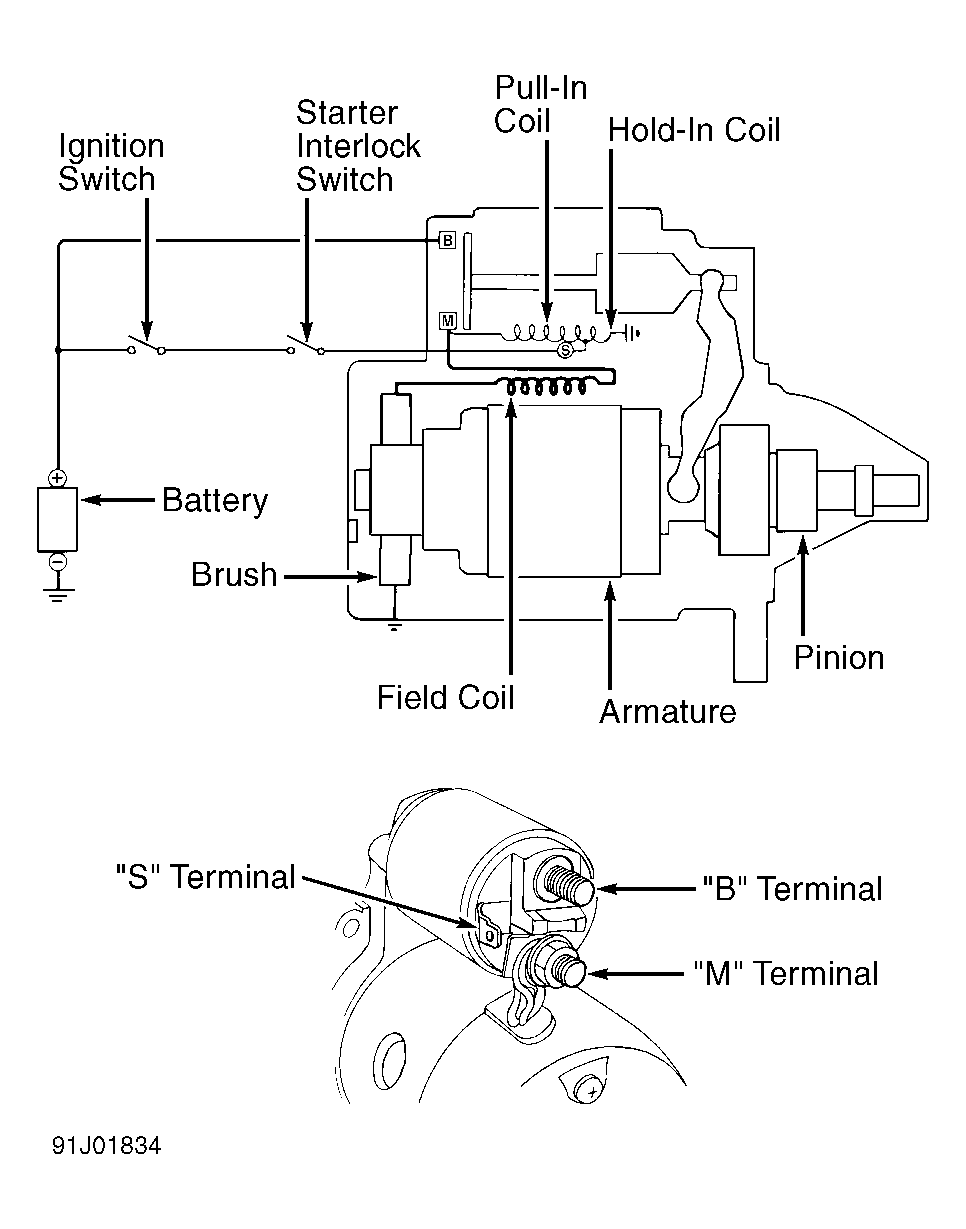

Fig 1: Direct Drive Starter Circuit Diagrams

Courtesy of MAZDA MOTORS CORP.
