Control Assembly: Service and Repair

Removal and Installation

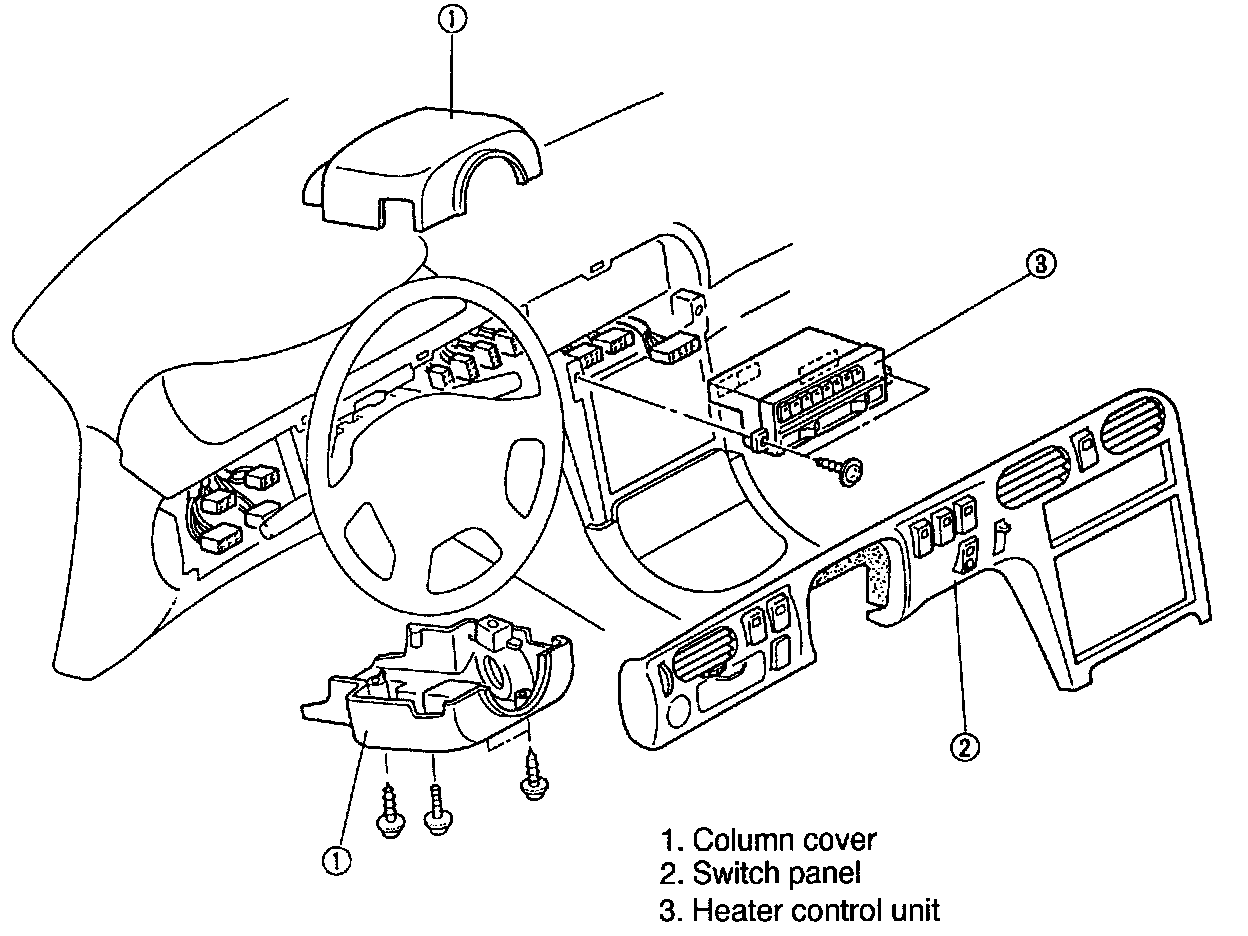

1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.
