Torque Specifications

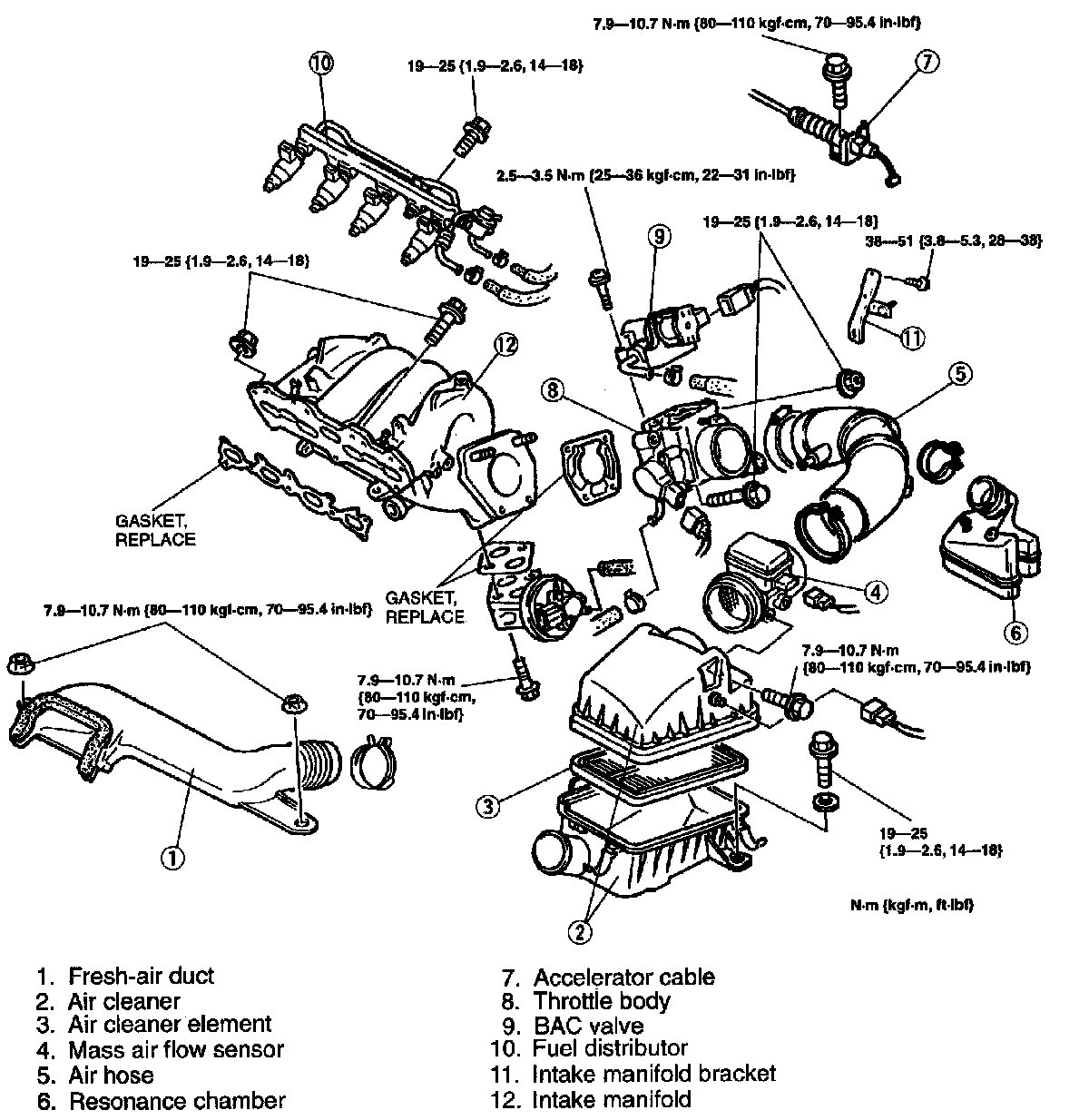

Intake (MTX):

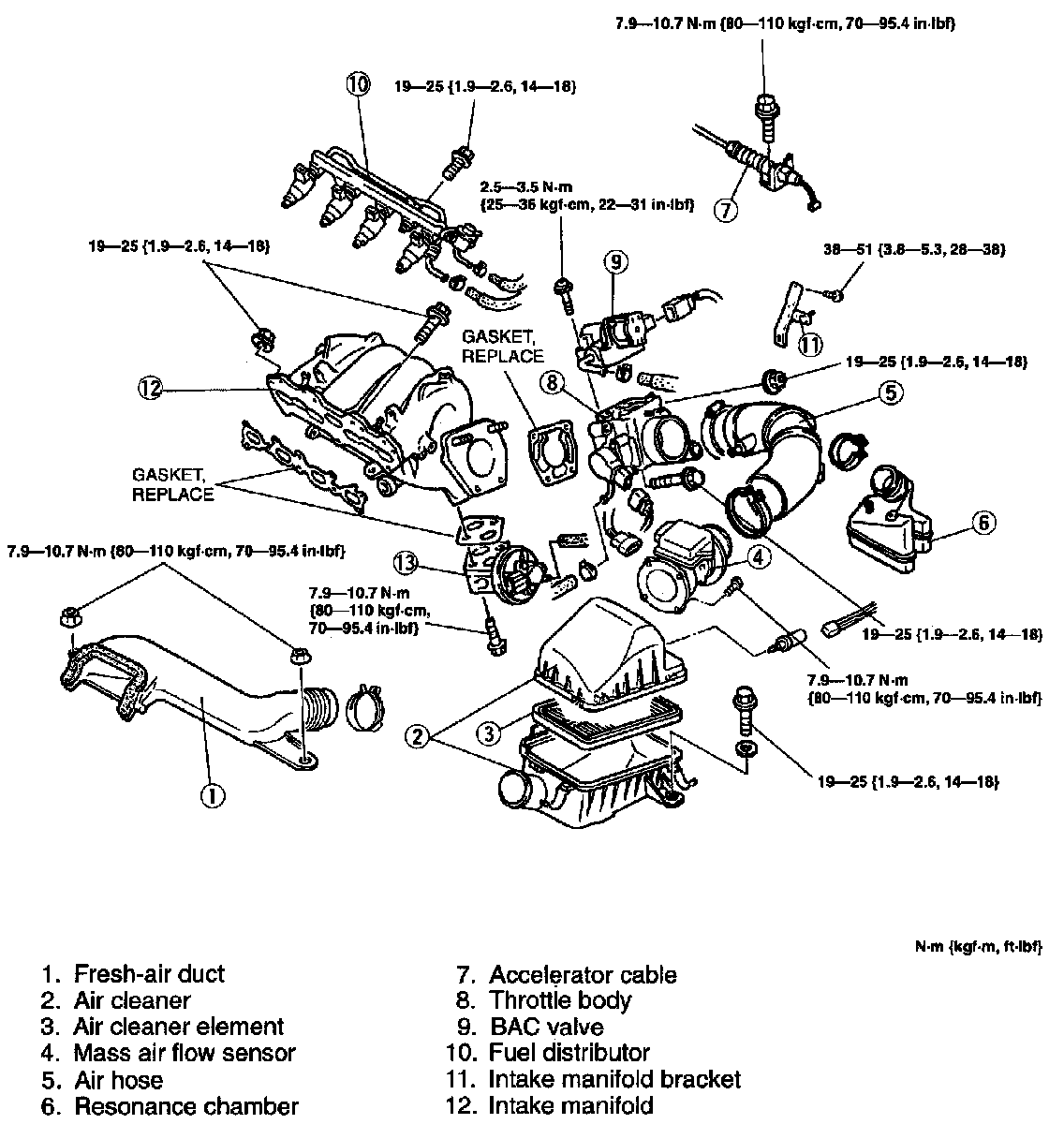

Intake (ATX):

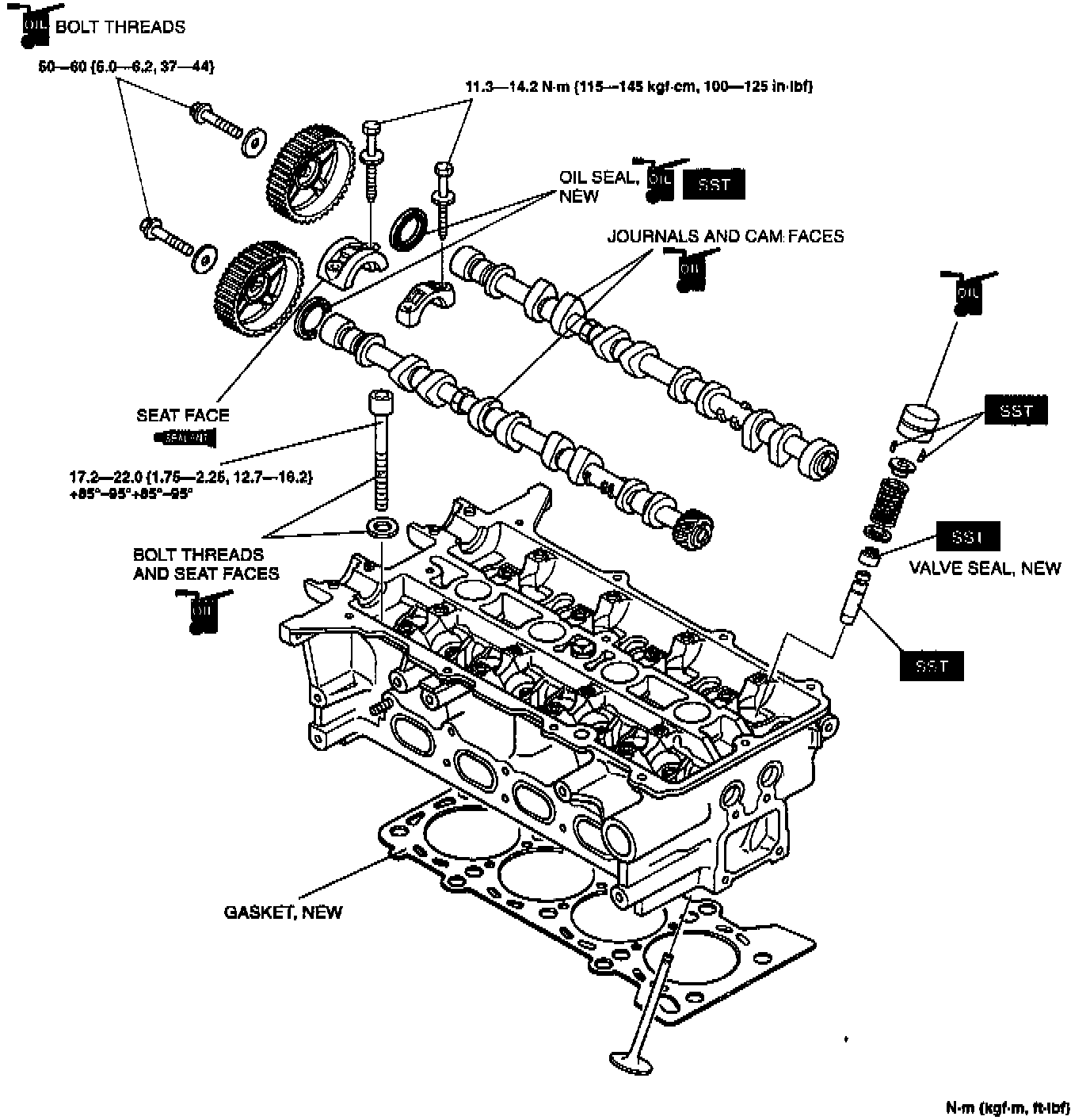

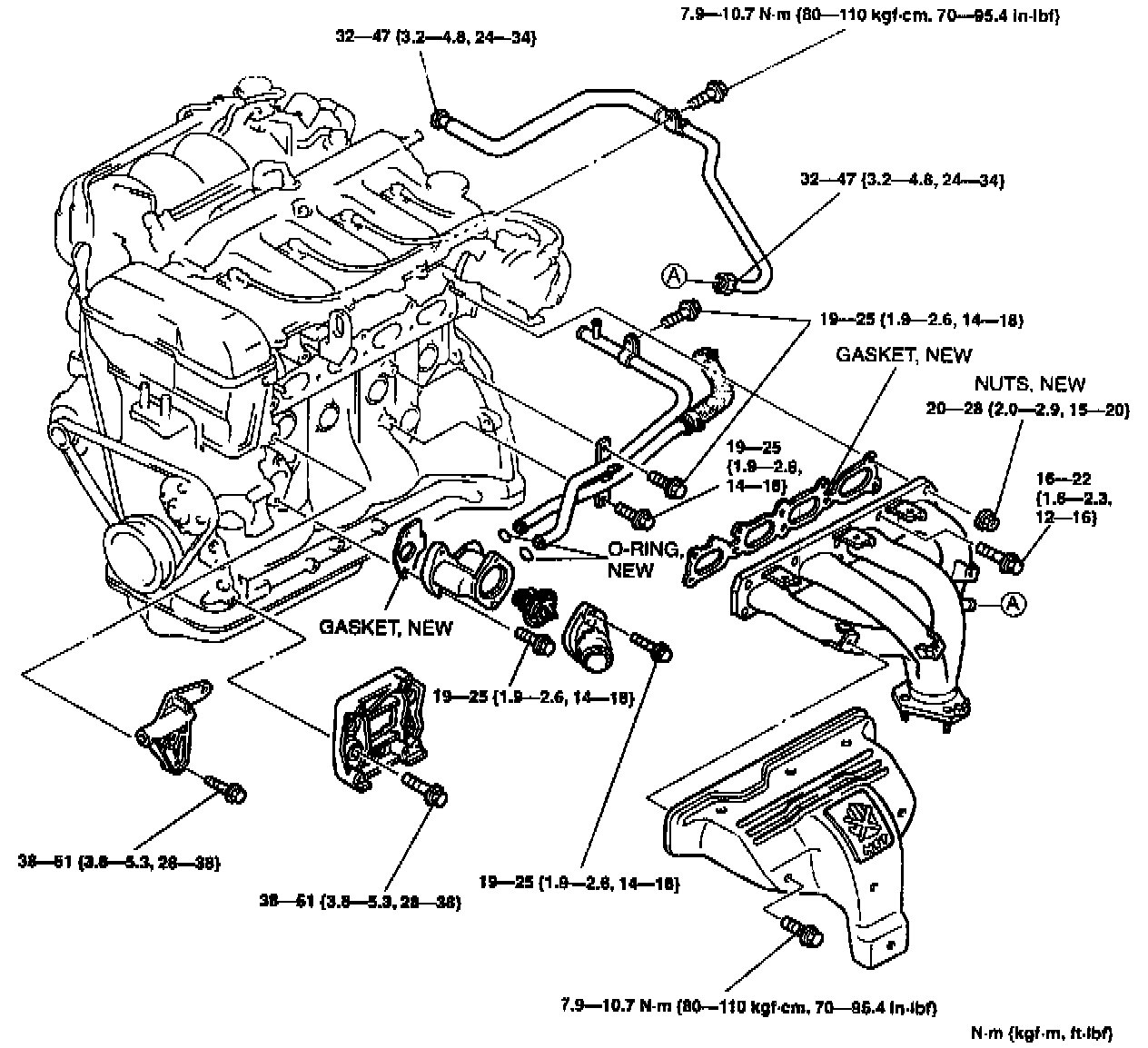

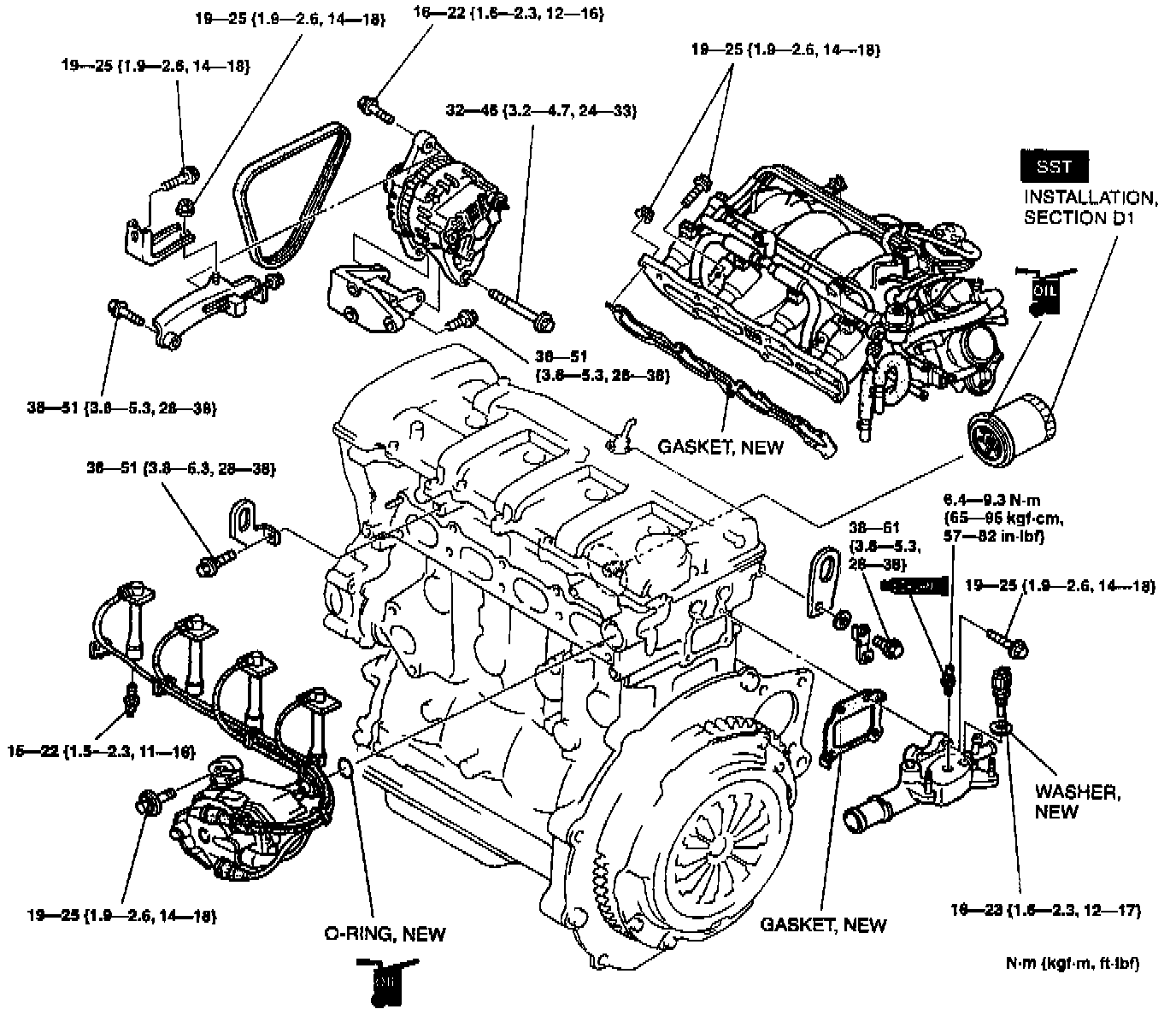

Upper Engine:

Cam Cap Torque/Sequence:

Head Torque Sequence:

Tighten the cylinder head bolts in two or three steps in the order shown.
Tightening torque:
17.2-22.0 N.m (12.7-16.2 ft-lb)
Put a paint mark on each bolt head.
Use this mark as a reference, tighten the bolts 85°-95° in the order shown.
Further tighten each bolt another 85°-95°

Timing Components:

Lower Engine:

Main Bolt Torque/Sequence:

Upper Oil Pan:
