Component Locations

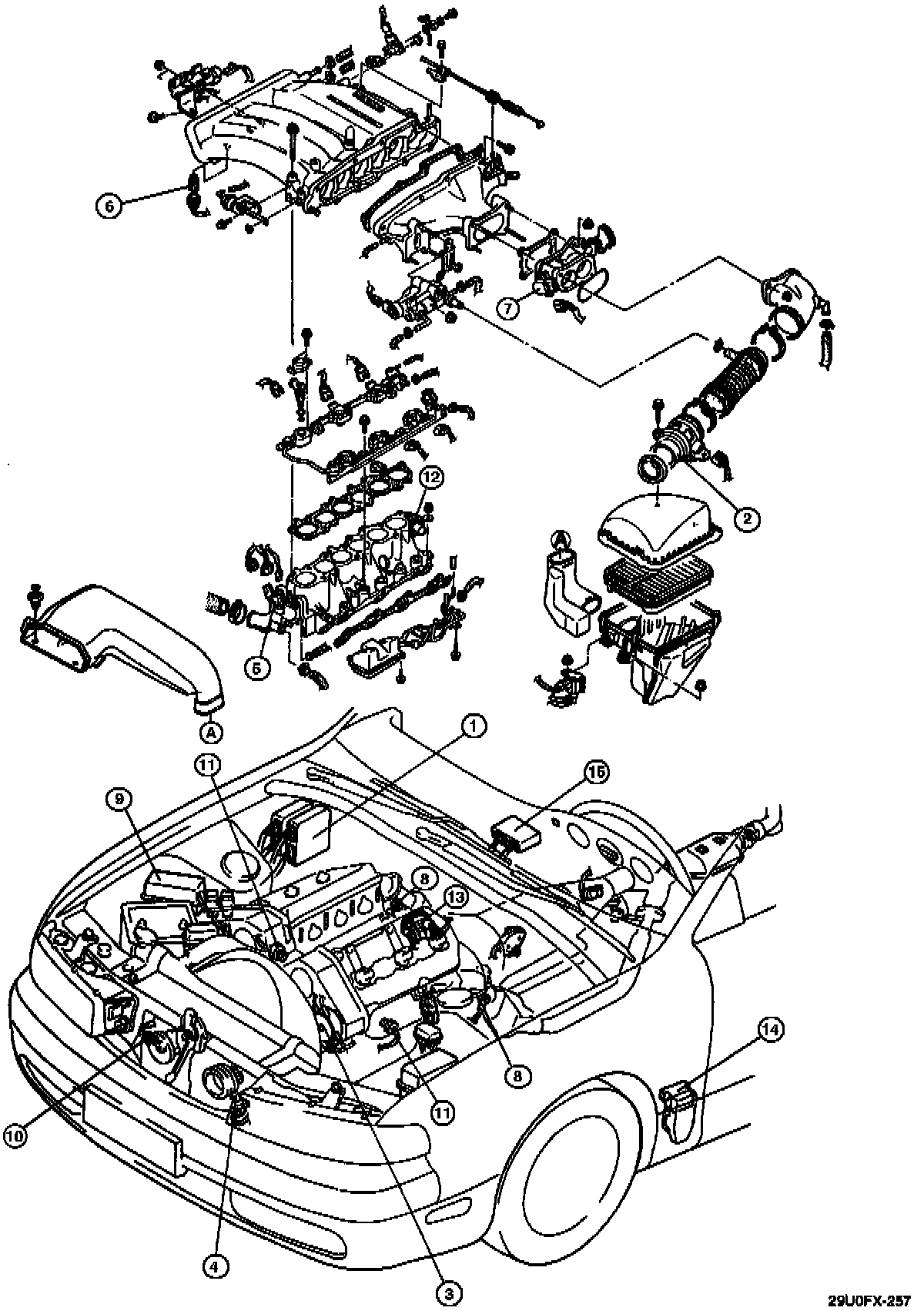

CONTROL SYSTEM LOCATIONS
1. Powertrain Control Module Engine (PCME)
2. Volume Airflow Sensor
3. Crankshaft Position Sensor I
4. Crankshaft Position Sensor 2
5. Engine Coolant Temperature Sensor
6. Intake Air Temperature Sensor
7. Throttle Position Sensor
8. Heated Oxygen Sensor
9. Main Relay
10. Steering Pressure Sensor
11. Knock Sensor
12. EGR Control Valve
13. EGR Solenoid Valve
14. Central Processing Unit (CPU)
15. Air Conditioning (A/C) Amplifier
