Control Assembly: Service and Repair

Control Cables Removal and Installation




1. Remove heater control unit
2. Disengage the glove compartment door by squeezing the sides together and allow the door to hang free.

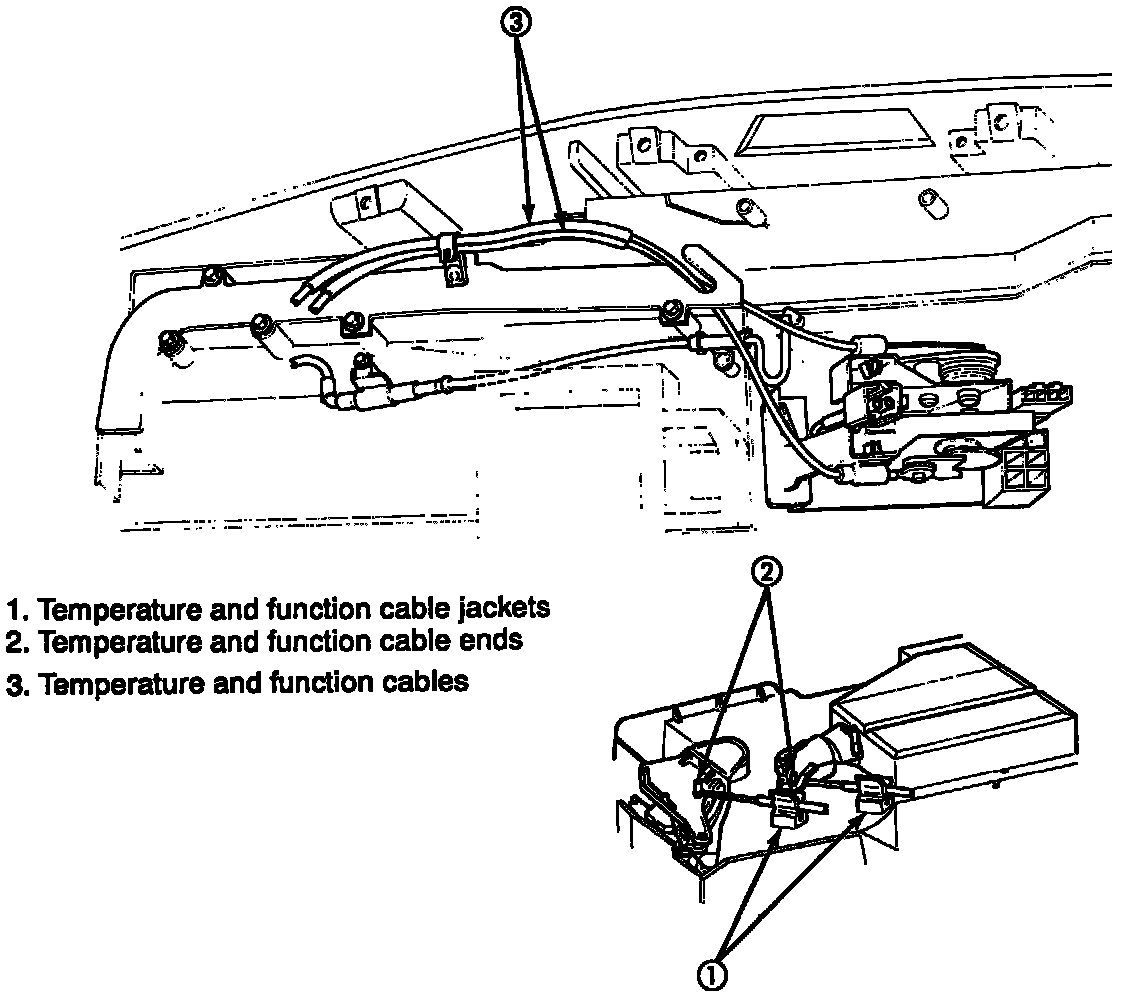

3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.
