Component Locations

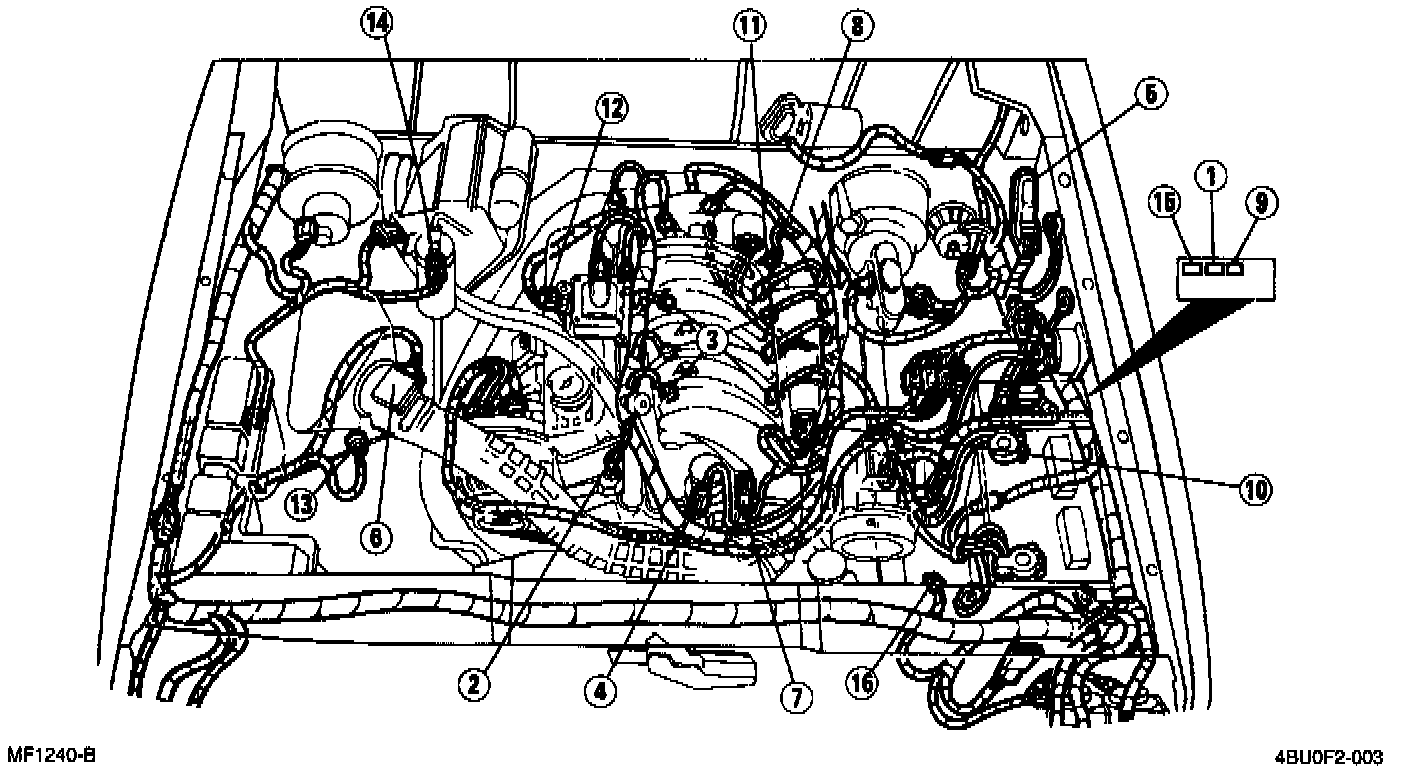

Under Hood View:

1. Fuel pump relay
2. Pressure regulator
3. Injector
4. Engine coolant temperature sensor
5. Powertrain control module (PCM)
6. Mass air flow sensor
7. Throttle position sensor
8. Camshaft position sensor (in distributor)
9. PCM power relay
10. Idle air control solenoid
11. Differential pressure feedback Exhaust Gas Recirculation (EGR) sensor
12. EGR vacuum regulator solenoid
13. Intake air temperature sensor
14. A/C pressure switch
15. Wide open throttle A/C cutoff relay
16. Purge solenoid valve
