Engine Controls - Tests W/Codes: Description

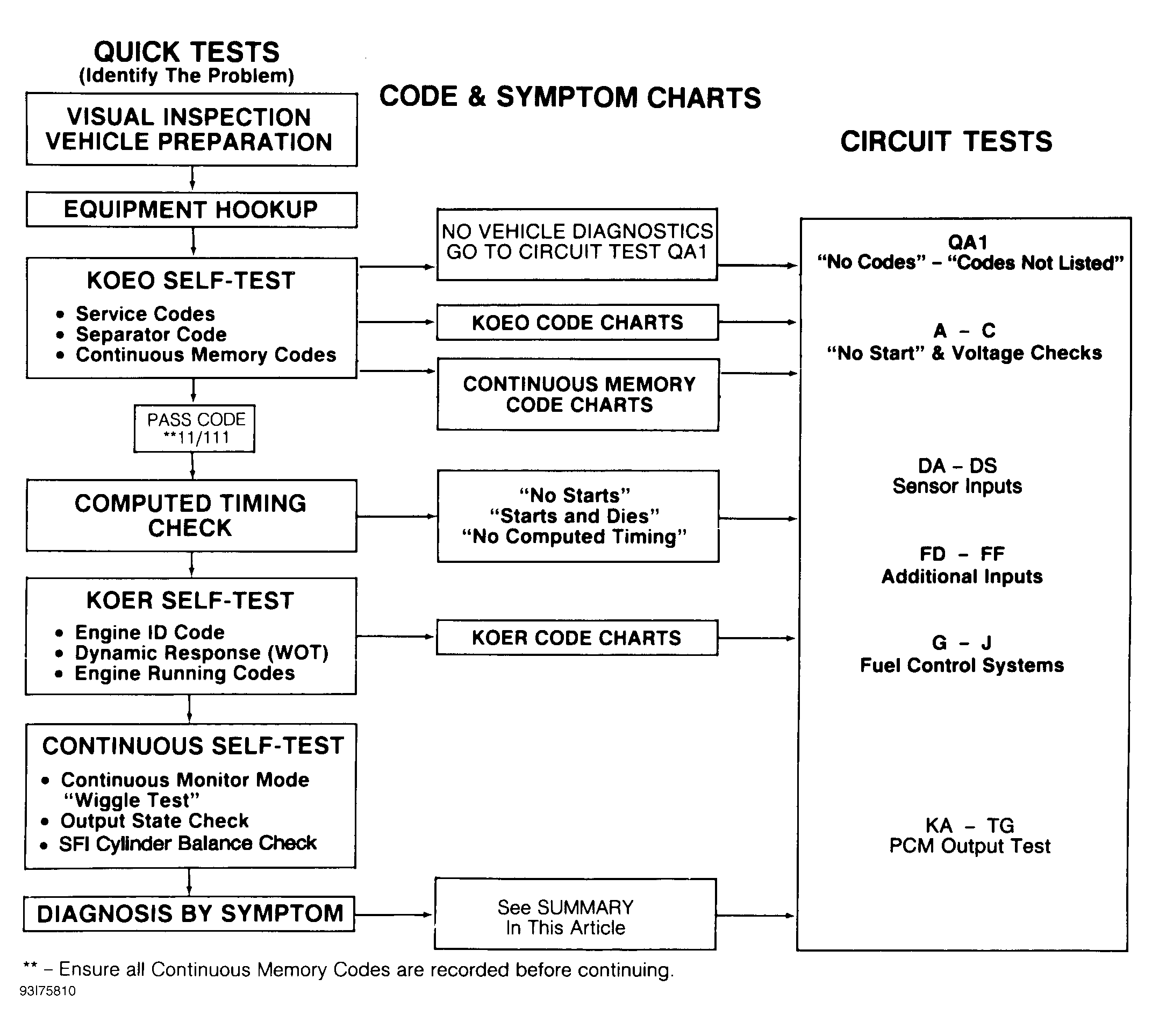

Following procedures are functional tests of EEC-IV system. See Figure. These 5 basic test steps must be carefully followed in sequence to avoid misdiagnosis or replacement of non-faulty components.

• Visual Check & Equipment Hookup
• KOEO (Key On Engine Off) SELF-TEST
• Computed Timing Check
• KOER (Key On Engine Running) SELF-TEST
• Continuous Monitor Mode (Wiggle Test)
