Torque Specifications

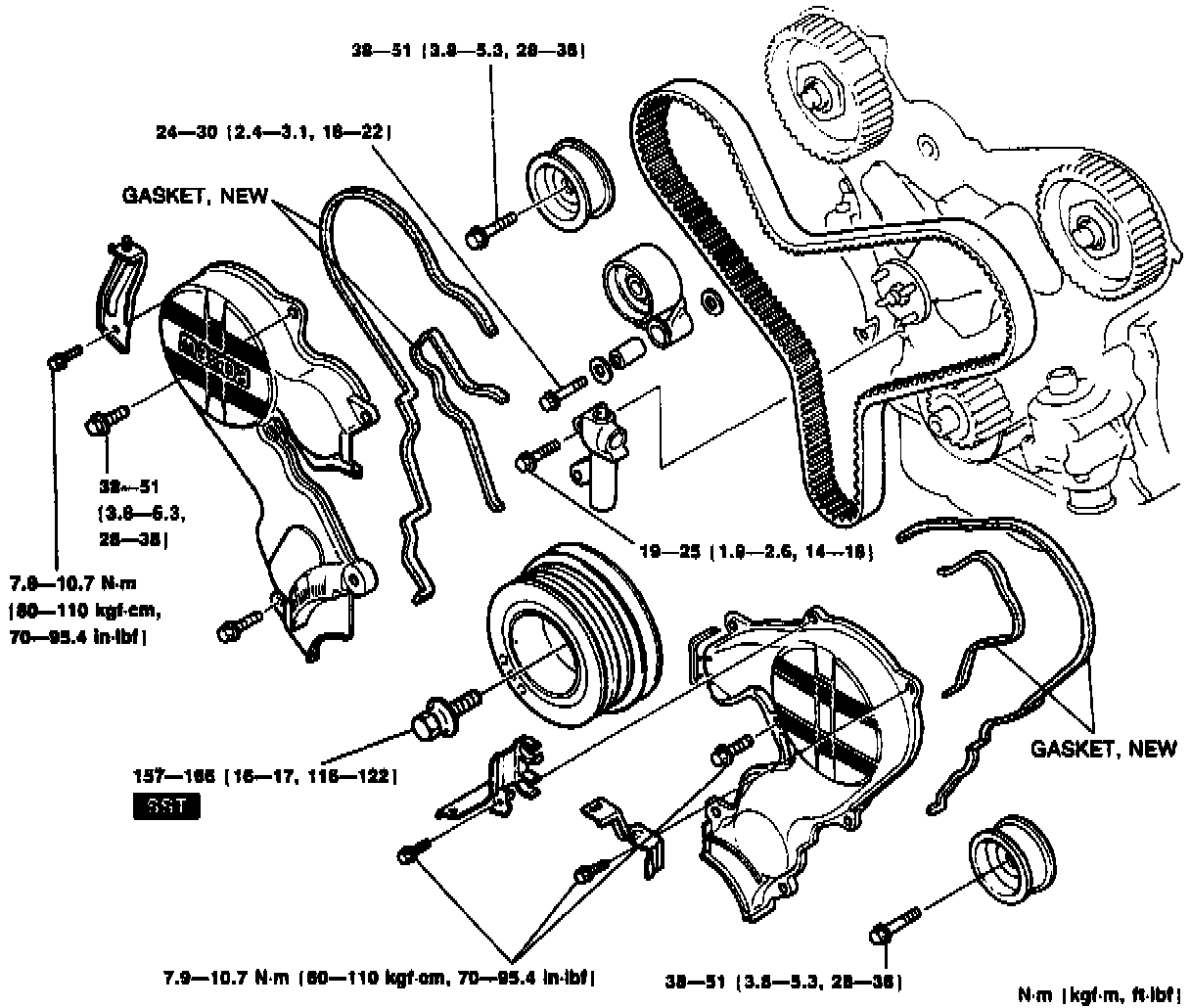

Timing Components:

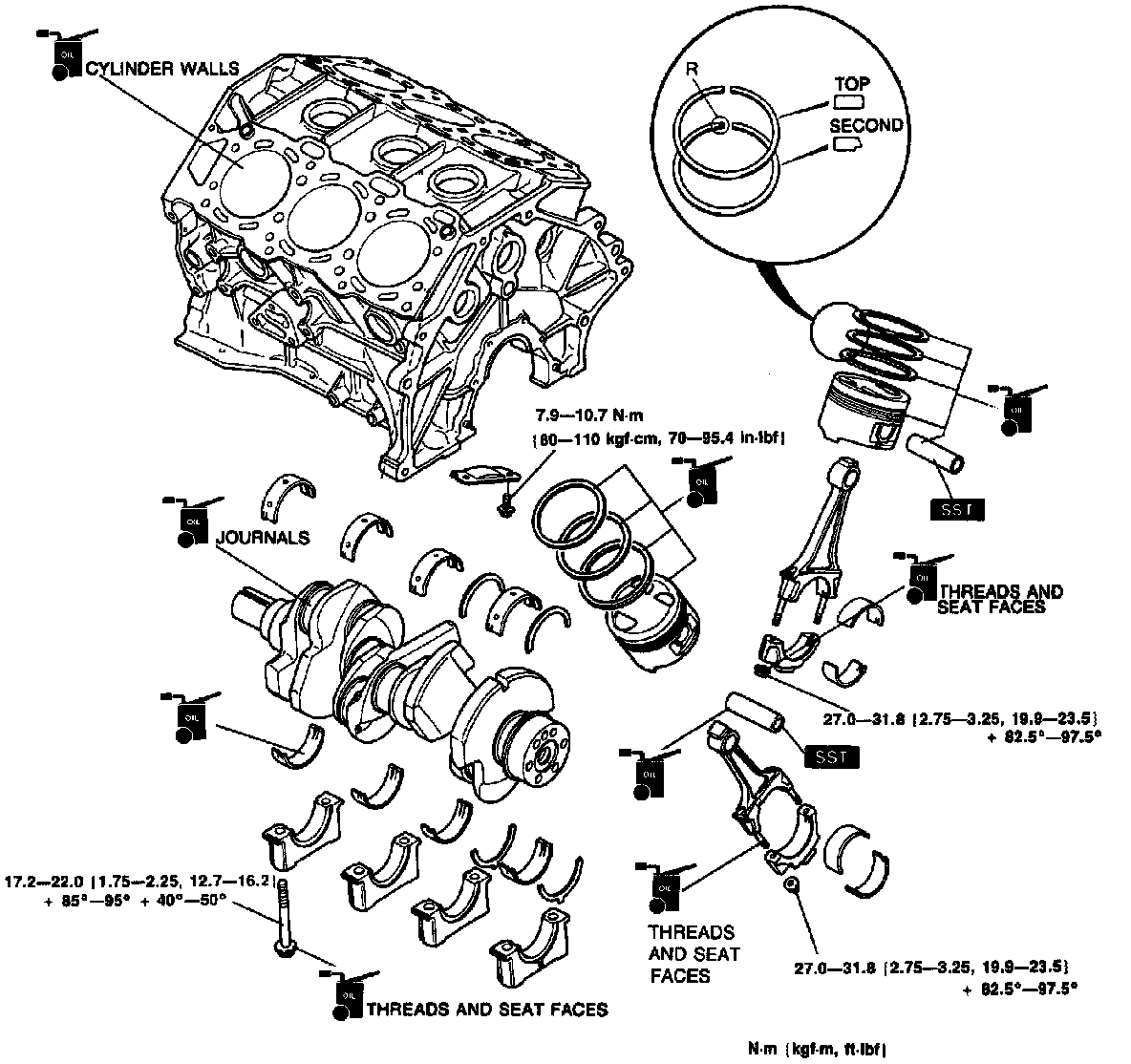

Lower Engine:






Main Bolt Torque/Sequence:

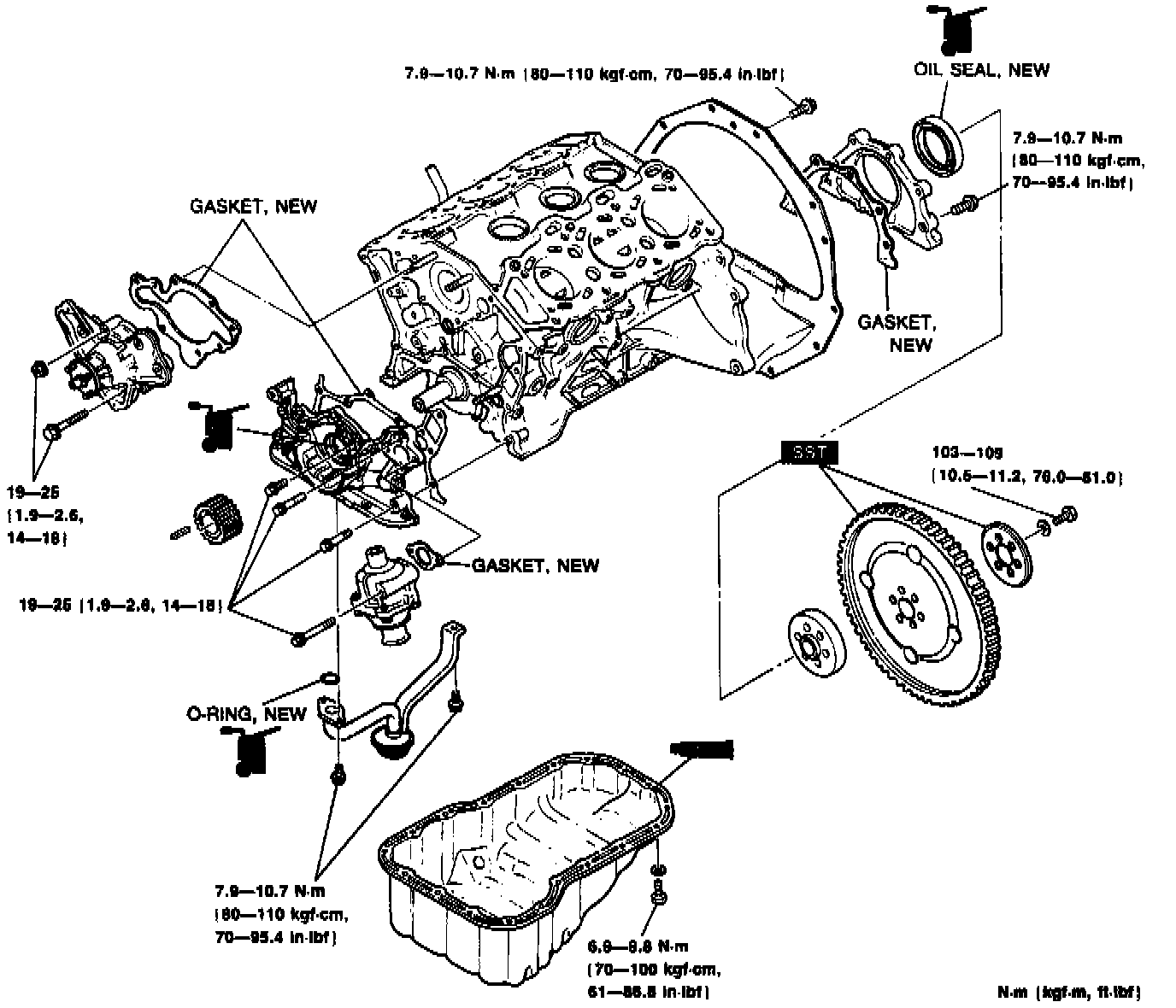

External Parts:
