Anti-Lock Brake System: Description

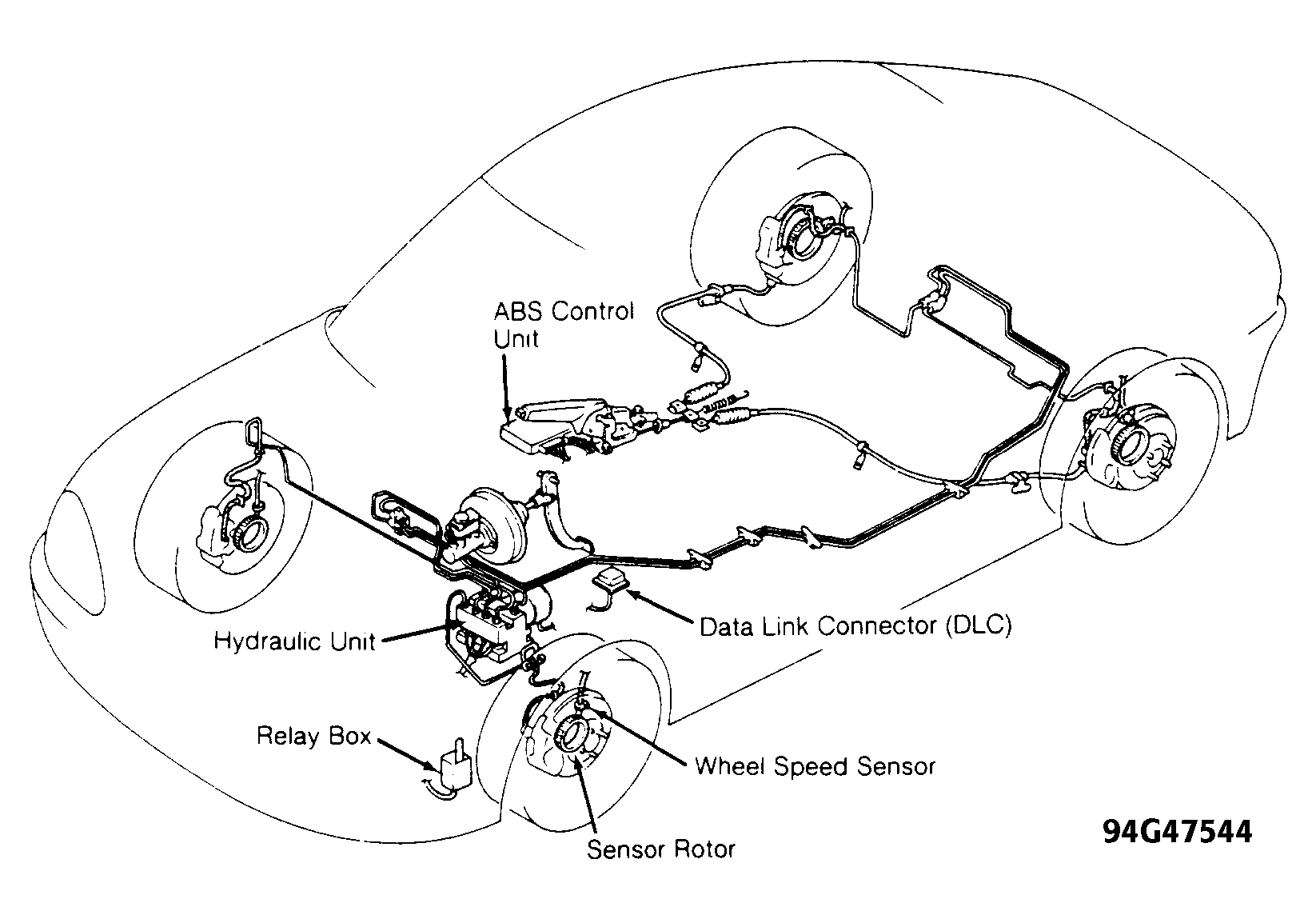

The Anti-Lock Brake System (ABS) control unit senses reductions in front and rear wheel speed and modulates hydraulic pressure to the brakes to prevent wheel lock-up. The ABS consists of hydraulic unit, relay box, 4 speed sensors and sensor rotors, Data Link Connector (DLC), and ABS control unit. See Fig 1 . An ABS warning light is located on the instrument panel.
NOTE:
For more information on brake system, see BRAKE SYSTEM
article in the BRAKES section.
